5.7LX EFI (4 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Engine Mounting

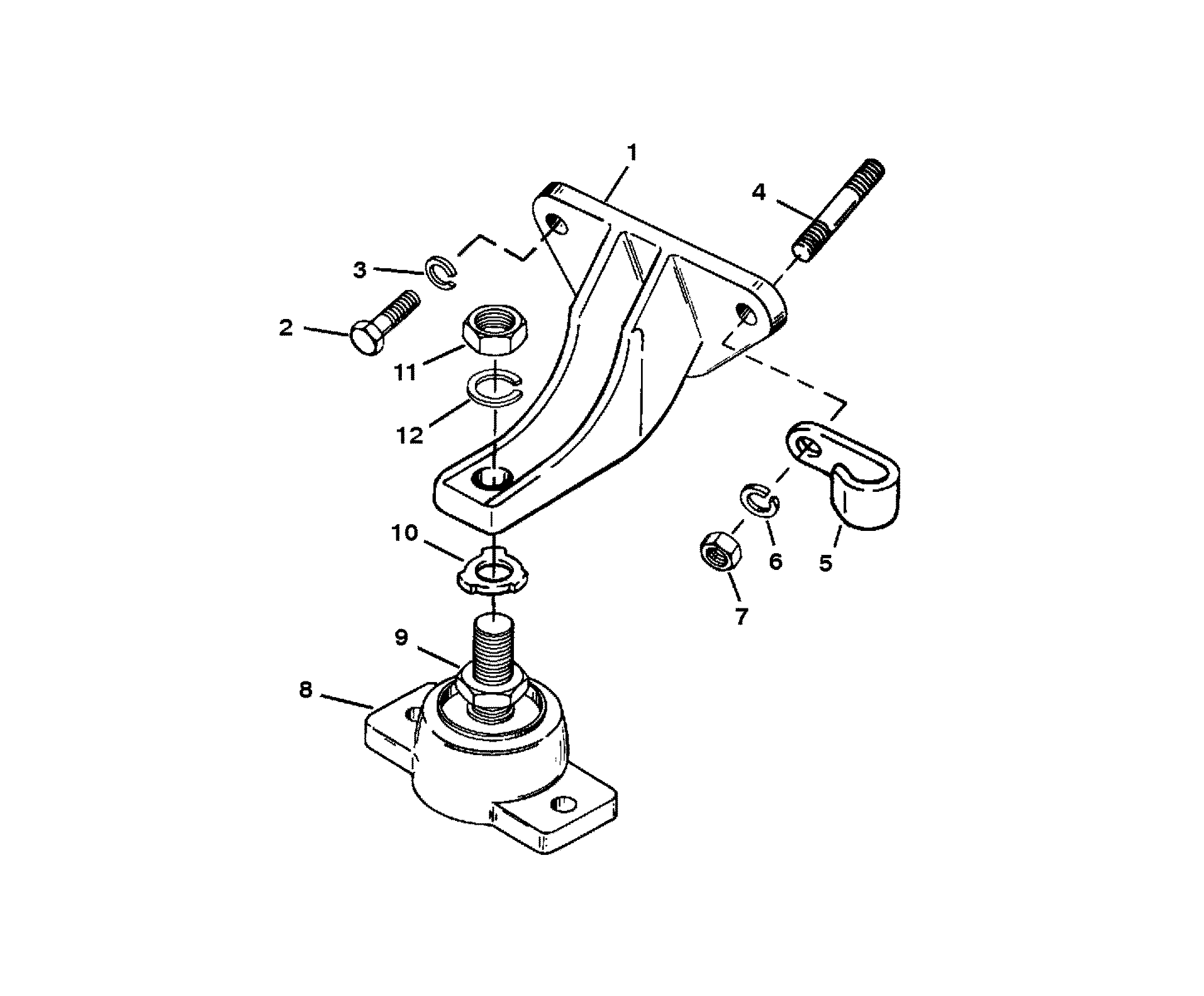

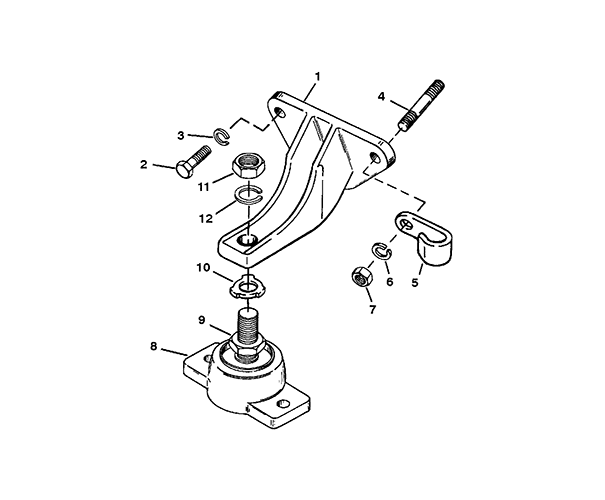

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 79550A1



MOUNTING BRACKET 2   FRONT
2 10-68101



SCREW 3
PORT
3 13-35048



LOCKWASHER 3   PORT
2 10-68101



SCREW 2
STARBOARD
3 13-35048



LOCKWASHER 2   STARBOARD
4 16-64066



STUD 1   STARBOARD
5 54-78945



CLIP 1   STARBOARD
6 13-35048



LOCKWASHER 1   STARBOARD
7 11-32219



NUT 1   STARBOARD
8 66284A2



BASE ASSEMBLY 2
9 11-20739



JAM NUT 2
10 14-12657



TAB WASHER 2
11 11-20739



NUT 2
12 13-68102



LOCKWASHER 2
