5.7LX EFI (4 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Mercathode Components

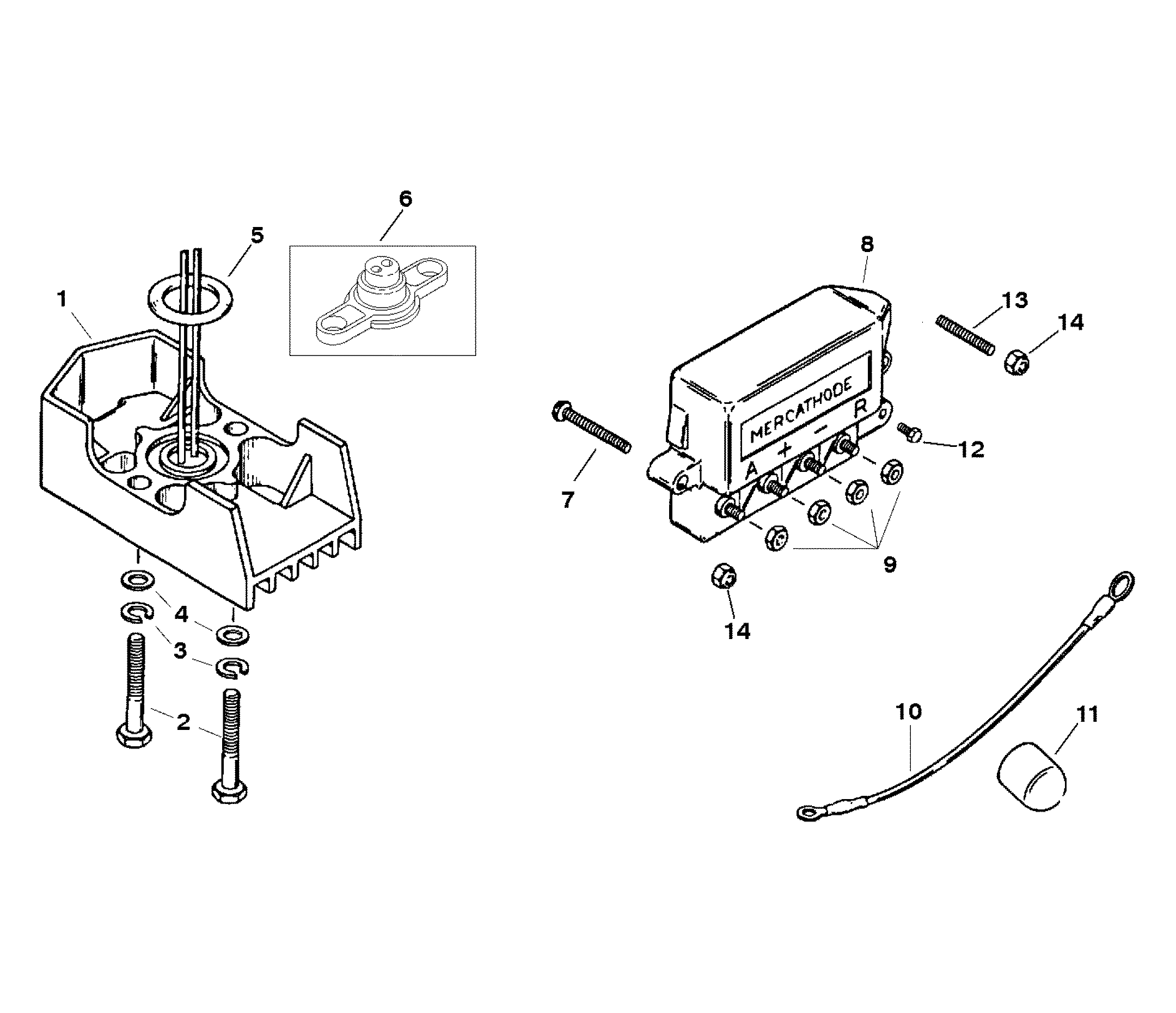

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 98869A17



ELECTRODE ASSEMBLY 1 98869A11
2 10-69067



SCREW 2

3 13-26992



LOCKWASHER 2

4 12-29245



WASHER 2

5 25-88388



O-RING 1
(DESIGN I)
6 25-805294



GROMMET 1
(DESIGN II)
7 10-72202

700-22312
SCREW (1-1/4 IN.) 1

7 10-805565



SCREW (3/4 IN.) 1

8 42600A09



CONTROLLER ASSEMBLY 1 42600A3
9 11-68219



NUT 4

10 84-88543A3



WIRE ASSEMBLY 1

11 44574T



PLASTIC CAP 2 44574
12 10-62568



SCREW 1
13 16-805459



STUD 1
14 11-46438



NUT 2
