5.7LX EFI (4 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Flywheel Housing

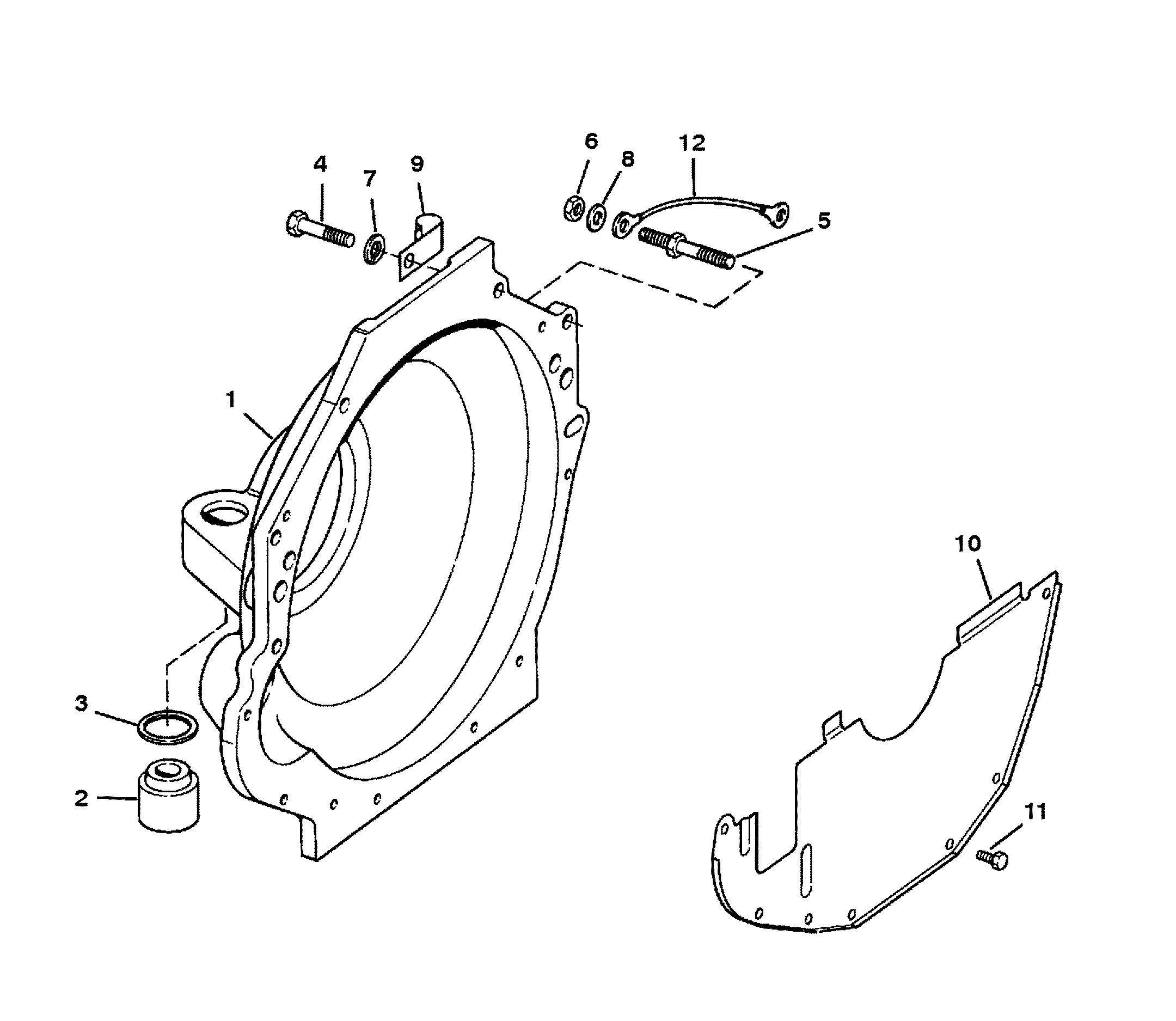

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 865657A04



FLYWHEEL HOUSING 1 12675A7
2 865329A02



RUBBER MOUNT 2 99297A1
3 23-99322



SPACER 2

4 10-37612



SCREW (1-1/4") 4

4 10-358701



SCREW (2") 2

5 16-64066



STUD 2

6 11-32219



NUT 2

7 13-35048



LOCKWASHER 7

8 12-20572



WASHER 1

9 54-78945



J-CLAMP 1

9 54-92850



CLAMP 2

10 807260A2



COVER 1 818719A1
11 10-32773



SCREW 7
12 84-62826A6



WIRE 1
