5.7LX EFI (4 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Exh. Manifold And Stainless Steel Exhaust Elbow (Bravo)

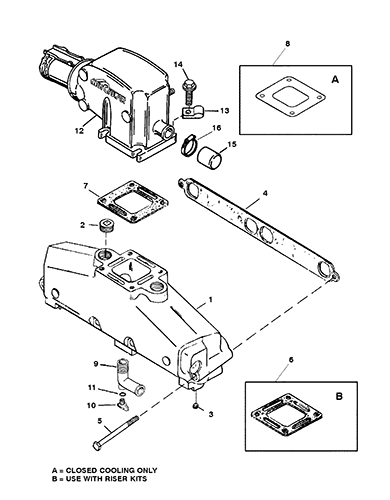

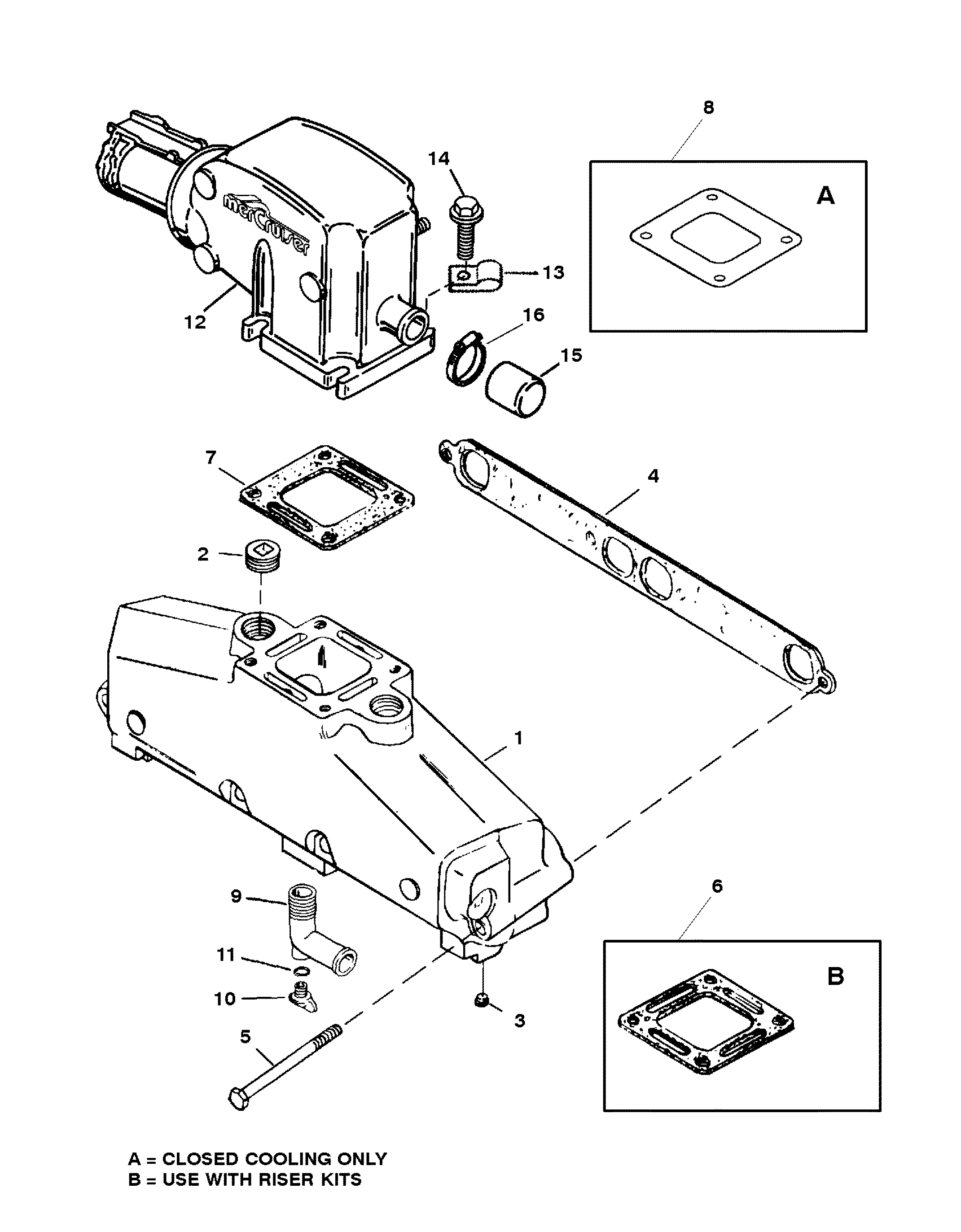

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (5.7L Alpha / Bravo)
- Cylinder Block And Camshaft (5.7Lx Alpha / Bravo)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold And Cast Iron Exhaust Elbow (Alpha)
- Exh. Manifold And Stainless Steel Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (Alpha Engines)
- Throttle Linkage (Bravo Engines)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 860246A15 | EXHAUST MANIFOLD ASSEMBLY | 2 | 87114A19 | |||||
| 2 | 22-41622 | 676-9-41205 | 700-21892 | PLUG | AR | 22-33198A1 | 6 | ||
| 3 | 22-36382 | 700-21887 | PIPE PLUG | 4 | |||||
| 4 | 27-33395 | GASKET | 2 | 5 | |||||
| 5 | 10-53728 | SCREW (4-5/8") | 8 | ||||||
| 6 | 27-863726 | GASKET | 2 | 27-818832 | (USE WITH RISER KITS) | ||||
| 7 | 27-863724 | GASKET | 2 | 27-41813 | (STANDARD COOLING) 5 | ||||
| 8 | 27-8637251 | GASKET | 2 | 27-41811 | (CLOSED COOLING) 5 | ||||
| 9 | 22-862210A01 | 676-9-41206 | 700-13991 | DRAIN ELBOW | 2 | 22-806926A1 | |||
| 10 | 22-806608A02 | DRAIN PLUG | 2 | 22-806608A1 | |||||
| 11 | 25-32509 | QUAD RING | 2 | 25-806609 | |||||
| 12 | 816900A5 | EXHAUST ELBOW ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 12 | 816900A9 | EXHAUST ELBOW ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 13 | 54-73668 | J-CLIP | 1 | (PORT) | |||||
| 14 | 10-98534 | SCREW (2-1/4") | 2 | ||||||
| 14 | 10-865982005 | SCREW (1") | 6 | 10-12244 | |||||
| 15 | 19-805727001 | RUBBER CAP | 2 | 19-805727 | |||||
| 16 | 54-815504220 | CLAMP | 2 | ||||||
| - | 807476A7 | RISER EXTENSION KIT (3") | 1 | 93320A7 | EACH KIT CONTAINS 2 RISERS. | ||||
| - | 807477A5 | RISER EXTENSION KIT (6") | 1 | 93322A5 | EACH KIT CONTAINS 2 RISERS. | ||||
| - | 27-806871A96 | GASKET SET-OVERHAUL | 1 |
