5.7LX EFI (4 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Intake Manifold And Front Cover

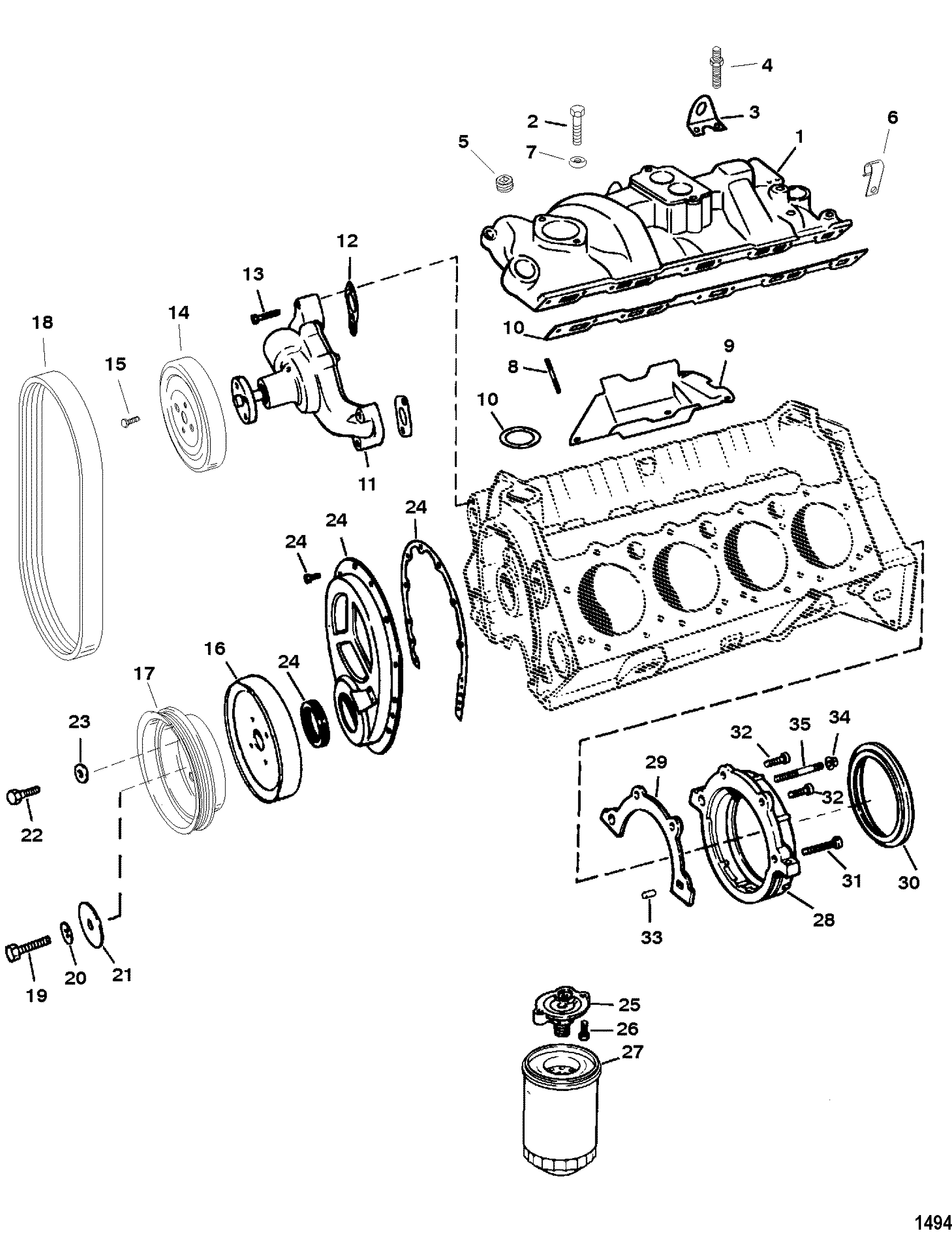

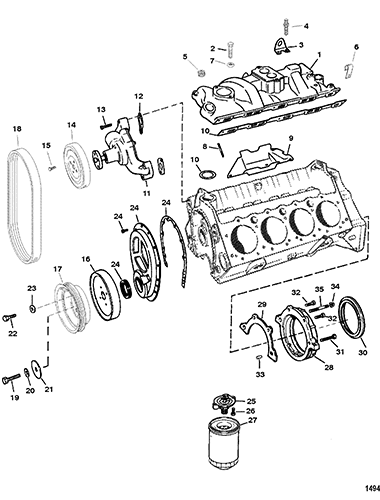

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (5.7L Alpha / Bravo)
- Cylinder Block And Camshaft (5.7Lx Alpha / Bravo)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold And Cast Iron Exhaust Elbow (Alpha)
- Exh. Manifold And Stainless Steel Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (Alpha Engines)
- Throttle Linkage (Bravo Engines)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 17619 | INTAKE MANIFOLD | 1 | This Part is No Longer Available (2 BARREL) | |||||
| 1 | 17620 | INTAKE MANIFOLD | 1 | This Part is No Longer Available (4 BARREL - HI-RISE) | |||||
| 2 | 10-11976 | BOLT | 9 | ||||||
| 2 | 10-802655 | BOLT | 3 | 10-11975 | |||||
| 3 | 54-47512 | LIFTING EYE | 1 | ||||||
| 4 | NSS | STUD (GM#3959544) | 4 | This Part is not sold separately 1 | |||||
| 5 | 22-48358T | PLUG-INTAKE (3/8 IN.) | 1 | 22-48358 | |||||
| 6 | 54-73668 | J-CLIP | 1 | ||||||
| 7 | 12-46132 | WASHER | 1 | ||||||
| 8 | NSS | STUD (GM #10229247) | 4 | This Part is not sold separately | |||||
| 9 | 72647 | GUARD | 1 | This Part is No Longer Available | |||||
| 10 | 27-17145 | 676-9-61200 | 700-30860 | GASKET SET | 1 | (Use RTV Silicone Sealant for end gasket - See Service Manual) 5 | |||
| 11 | 8503991 | WATER PUMP ASSEMBLY | 1 | 811841 | |||||
| 12 | 27-34897 | 676-9-60065 | 700-31380 | GASKET | 2 | 5 | |||
| 13 | 10-32132 | SCREW (1-3/4") | 2 | ||||||
| 13 | 10-47688 | SCREW (2-3/4") | 1 | ||||||
| 13 | 10-52200 | SCREW (1-1/2") | 1 | No longer made, limited availability | |||||
| 14 | 19692T01 | PULLEY (7" DIA.) | 1 | 19692T | |||||
| 15 | 10-47277 | SCREW | 4 | ||||||
| 16 | 809892T | HARMONIC BALANCER | 1 | 809892 | |||||
| 17 | 90081A1 | PULLEY | 1 | ||||||
| 18 | 57-48120Q1 | V-BELT | 1 | 57-48120A1 | |||||
| 19 | 10-32515 | BOLT | 1 | ||||||
| 20 | 13-39131 | LOCKWASHER | 1 | ||||||
| 21 | 35332001 | WASHER | 1 | 12-35332 | |||||
| 22 | 10-53833 | BOLT | 3 | ||||||
| 23 | WASHER | 3 | |||||||
| 24 | 835005 | TIMING COVER | 1 | (SCREWS-GROMMETS-OIL SEAL AND GASKET ARE NOT SOLD SEPARATELY) | |||||
| 25 | 71920 | FILTER VALVE | 1 | 53338 | W/O REMOTE OIL FILTER | ||||
| 26 | 10-54786 | SCREW | 2 | W/O REMOTE OIL FILTER | |||||
| 27 | 35-866340Q03 | 676-9-57825 | OIL FILTER | 1 | 14957 | W/O REMOTE OIL FILTER | |||
| 28 | 14239 | RETAINER (REAR) | 1 | ||||||
| 29 | 27-881715 | 676-9-61511 | GASKET | 1 | 27-14241 | 5 | |||
| 30 | 26-14240 | 700-85790 | OIL SEAL (REAR) | 1 | 5 | ||||
| 31 | 10-8M0064241 | BOLT | 1 | 10-14243 | |||||
| 32 | 10-14242 | BOLT | 2 | ||||||
| 33 | 17-14263 | DOWEL PIN | 1 | ||||||
| 34 | 11-8167301 | NUT | 1 | 11-816730 | |||||
| 35 | 16-14827 | STUD | 1 | ||||||
| - | 27-806871A96 | 700-39018 | GASKET SET-OVERHAUL | 1 |
