Bravo XR One - Serial 0L914990 Thru 0W239999 - Drive Shaft Housing And Drive Gears (XR-XZ-Drive)

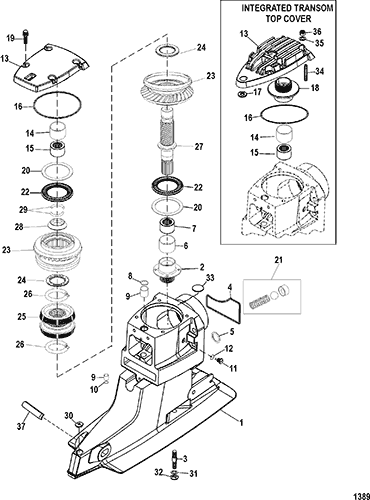

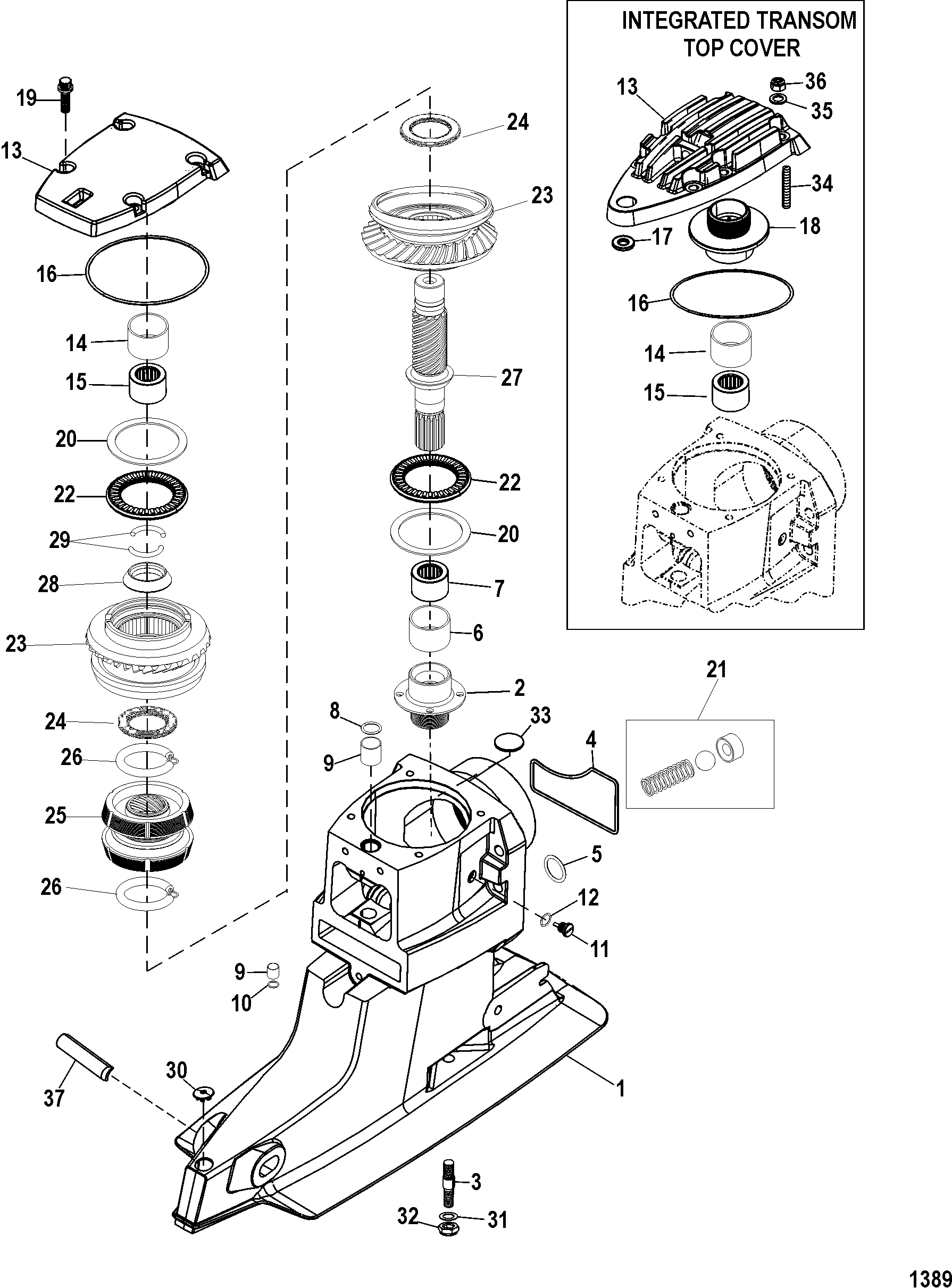

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing (Integrated And Hi Performance Transom)
- Bell Housing (Magnum Series Transom)
- Continuity Kit
- Drive Shaft Housing And Drive Gears (XR-XZ-Drive)
- Gear Housing (Bravo One XR Sportmaster)
- Gear Housing (Bravo One XR-XZ)
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Housing(Integrated Transom)
- Gimbal Ring And Steering Lever
- Gimbal Ring(Integrated Transom)
- Mercathode Kit
- Mercathode Kit(Integrated Transom)
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mount Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mount Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mount Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mount Reservoir) (Design III - 14336A31)
- Special Tools-Drive Shaft Housing
- Special Tools-Gear Housing (Bravo One)
- Special Tools-Transom
- Steering Cylinder (Integrated Transom)
- Sterndrive Unit Chart (Gasoline) BravoI (XR And XZ)
- Sterndrive Unit Chart (Integrated) Bravo I (XR And XZ)
- Transom Assembly Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
- Trim Pump Assembly (Complete)
- Universal Joint And Shifter Components (XR-XZ-Drive)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1589-864571A70 | HOUSING ASSEMBLY, Driveshaft | 1 | 1589-8868H70 | (Bravo One XR/XZ) | ||||
| 2 | NSS | NOT SOLD SEPARATE, Adaptor, Bearing | 1 | This Part is not sold separately | |||||
| 3 | 16-579203 | STUD, (.437-14/.437-20 x 2.060) | 4 | ||||||
| 4 | 16755Q1 | SEAL | 1 | ||||||
| 5 | 25-457101 | O-RING, (1.424 x .103) | 1 | 25-45710 | |||||
| 6 | 31-861791 | RACE | 1 | ||||||
| 7 | 31-843240 | BEARING ASSEMBLY, Roller | 1 | ||||||
| 8 | 25-62705 | O-RING | 1 | ||||||
| 9 | 23-861209A1 | BUSHING KIT | 1 | ||||||
| 10 | 26-127091 | SEAL | 1 | ||||||
| 11 | 22-8M0058389 | FITTING KIT, Magnetic, Plug Fill/Drain | 1 | 22-67892A1 | |||||
| 12 | 12-191833 | WASHER | 1 | 12-191832 | |||||
| 13 | 92068A15 | COVER ASSEMBLY, Top | 1 | ||||||
| 13 | 840838T02 | COVER ASSEMBLY, Top | 1 | 840838T1 | (Use With Integrated Transom) | ||||
| 14 | 31-861791 | RACE | 1 | ||||||
| 15 | 31-843240 | BEARING ASSEMBLY, Roller | 1 | ||||||
| 16 | 25-97387 | O-RING | 1 | ||||||
| 17 | 12-41721 | WASHER | 1 | ||||||
| 18 | 8619361 | ADAPTOR, Bearing | 1 | (Use With Intergrated Transom) | |||||
| 19 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 4 | |||
| 20 | 23-864596058 | SHIM/RACE, (.0575/.0584 Thick) Brown, Thrust Bearing | AR | ||||||
| 20 | 23-864596059 | SHIM/RACE, (.0585/.0594 Thick) White, Thrust Bearing | AR | ||||||
| 20 | 23-864596060 | SHIM/RACE, (.0595/.0604 Thick) Orange, Thrust Bearing | AR | ||||||
| 20 | 23-864596061 | SHIM/RACE, (.0605/.0614 Thick) Green, Thrust Bearing | AR | ||||||
| 20 | 23-864596062 | SHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust Bearing | AR | ||||||
| 20 | 23-864596063 | SHIM/RACE, (.0625/.0634 Thick) Red, Thrust Bearing | AR | ||||||
| 20 | 23-864596064 | SHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust Bearing | AR | ||||||
| 20 | 23-864596065 | SHIM/RACE, (.0645/.0654 Thick) Black, Thrust Bearing | AR | ||||||
| 20 | 23-864596066 | SHIM/RACE, (.0655/.0664 Thick) Pink, Thrust Bearing | AR | ||||||
| 21 | 24-17997A1 | SPRING KIT | 1 | ||||||
| 22 | 31-861787 | BEARING ASSEMBLY | 2 | ||||||
| 23 | 43-887906A1 | GEAR SET, (29/27) | 1 | 43-883476A1 | (See Sterndrive Unit Chart For Application) | ||||
| 23 | 43-887903A1 | GEAR SET, (32/27) | 1 | 43-883473A1 | (See Sterndrive Unit Chart For Application) | ||||
| 23 | 43-840898A3 | GEAR SET, (16/19) | 1 | (See Sterndrive Unit Chart For Application) Includes all 3 gears | |||||
| 24 | 31-861792 | BEARING ASSEMBLY | 1 | ||||||
| 25 | 52-865344A01 | CLUTCH ASSEMBLY | 1 | 52-861781A1 | |||||
| 26 | 24-93505 | SPRING | 2 | ||||||
| 27 | 45-812773T02 | DRIVESHAFT, Upper | 1 | ||||||
| 28 | 23-86770 | COLLAR | 1 | ||||||
| 29 | 97351 | KEEPER | 2 | ||||||
| 30 | 19-824928001 | PLUG, Rubber | 1 | 19-824928 | |||||
| 31 | 12-861854 | WASHER, (.453 x .750 x .032) Stainless Steel | 4 | ||||||
| 32 | 11-35053 | NUT, (.437-20) | 4 | ||||||
| 33 | NSS | NOT SOLD SEPARATE, Plug | 1 | This Part is not sold separately | |||||
| 34 | 16-840851 | STUD | 6 | (Use With Integrated Transom) | |||||
| 35 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 6 | (Use With Integrated Transom) | |||||
| 36 | 11-82671013 | NUT, (.375-24), Lock | 6 | 11-34932 | (Use With Integrated Transom) | ||||
| 37 | 808006 | INSERT, Trim Adjustment | 1 | ||||||
| NS | 26-16709A2 | SEAL KIT, Driveshaft Housing | 1 |
