Bravo XR One - Serial 0L914990 Thru 0W239999 - Trim Cylinders And Hydraulic Hoses

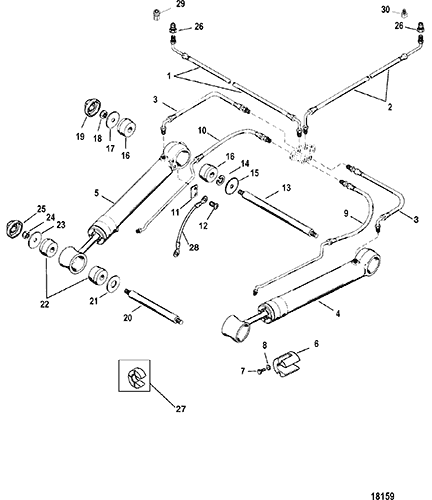

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing (Integrated And Hi Performance Transom)
- Bell Housing (Magnum Series Transom)
- Continuity Kit
- Drive Shaft Housing And Drive Gears (XR-XZ-Drive)
- Gear Housing (Bravo One XR Sportmaster)
- Gear Housing (Bravo One XR-XZ)
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Housing(Integrated Transom)
- Gimbal Ring And Steering Lever
- Gimbal Ring(Integrated Transom)
- Mercathode Kit
- Mercathode Kit(Integrated Transom)
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mount Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mount Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mount Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mount Reservoir) (Design III - 14336A31)
- Special Tools-Drive Shaft Housing
- Special Tools-Gear Housing (Bravo One)
- Special Tools-Transom
- Steering Cylinder (Integrated Transom)
- Sterndrive Unit Chart (Gasoline) BravoI (XR And XZ)
- Sterndrive Unit Chart (Integrated) Bravo I (XR And XZ)
- Transom Assembly Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
- Trim Pump Assembly (Complete)
- Universal Joint And Shifter Components (XR-XZ-Drive)
| Note: See "Power Trim Cylinder Repair Kits: For Breakdown | ||||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 32-861127 | HOSE, Black, Hydraulic | 1 | (Connector To Pump) SN# 0W099999 & Below | ||||||
| 1 | 32-865384001 | HOSE, Black, Hydraulic-With Quick Connect | 1 | (Connector To Pump) SN# 0W100000 & Up | ||||||
| 2 | 32-861128 | HOSE, Gray, Hydraulic | 1 | (Connector To Pump) SN# 0W099999 & Below | ||||||
| 2 | 32-865385001 | HOSE, Gray, Hydraulic-With Quick Connect | 1 | (Connector To Pump) SN# 0W100000 & Up | ||||||
| 3 | 32-99904Q | HOSE, Hydraulic | 2 | 32-99904 | (Trim Cylinder To Connector) | |||||
| 4 | 98704A26 | TRIM CYLINDER ASSEMBLY, Starboard | 1 | (See Power Trim Cylinder Repair Kits For Breakdown) | ||||||
| 5 | 98703A26 | TRIM CYLINDER ASSEMBLY, Port | 1 | (See Power Trim Cylinder Repair Kits For Breakdown) | ||||||
| NS | 87399A2 | OVERHAUL KIT | 2 | |||||||
| NS | 25-87400A2 | SEAL KIT | 2 | |||||||
| 6 | 806190Q1 | ANODE ASSEMBLY | 2 | |||||||
| 7 | 10-806290 | SCREW, (#10-32 x .625) | 4 | |||||||
| 8 | 13-69432 | 700-21491 | 525-13-69432 | LOCKWASHER, External (#10) | 4 | |||||
| 9 | 32-864589 | HOSE, Trim Cylinder, Starboard | 1 | 32-99902 | ||||||
| 10 | 32-864588 | HOSE, Trim Cylinder, Port | 1 | 32-99903 | ||||||
| 11 | 85060 | PLATE | 2 | |||||||
| 12 | 10-85486 | SCREW, (.250-20 x .380) Stainless Steel | 4 | 23 | ||||||
| 13 | 17-44167A1 | PIN, Front | 1 | |||||||
| 14 | 53-805272 | RING, Retaining | 2 | |||||||
| 15 | 12-44164 | 700-21671 | WASHER | 2 | ||||||
| 16 | 23-807073 | BUSHING | 4 | |||||||
| 17 | 12-44163 | WASHER, (.450 x 1.75 x .12) | 2 | |||||||
| 18 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 2 | ||||||
| 19 | 19-14842 | 676-9-77200 | 700-26480 | CAP | 2 | |||||
| 20 | 17-44166 | PIN, Rear | 1 | |||||||
| 21 | 12-44164 | 700-21671 | WASHER | 2 | ||||||
| 22 | 23-807073 | BUSHING | 4 | |||||||
| 23 | 12-44163 | WASHER, (.450 x 1.75 x .12) | 2 | |||||||
| 24 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 2 | ||||||
| 25 | 19-14842 | 676-9-77200 | 700-26480 | CAP | 2 | |||||
| 26 | 22-808727 | CONNECTOR, (.437 UNF To .250 Inverted Flare) (No Filter Screen) | 2 | |||||||
| 26 | 22-865590 | CONNECTOR, (.50 UNF To .25 Inverted Flare) (With Filter Screen) | 2 | |||||||
| 27 | 15768A3 | SPACER KIT, Trim Cylinder, Tilt Up | AR | SN# 0M207698 & Below | ||||||
| 28 | 88238A13 | CABLE ASSEMBLY, Ground | 2 | 23 | ||||||
| 29 | 22-865410001 | FITTING, Female Quick Connect | 1 | (Included With Part number 865384001) SN# 0W100000 & Up | ||||||
| 30 | 22-865411001 | FITTING, Male Quick Connect | 1 | (Included With Part number 865385001) SN# 0W100000 & Up | ||||||
