Bravo XR One - Serial 0L914990 Thru 0W239999 - Oil Reservoir Components

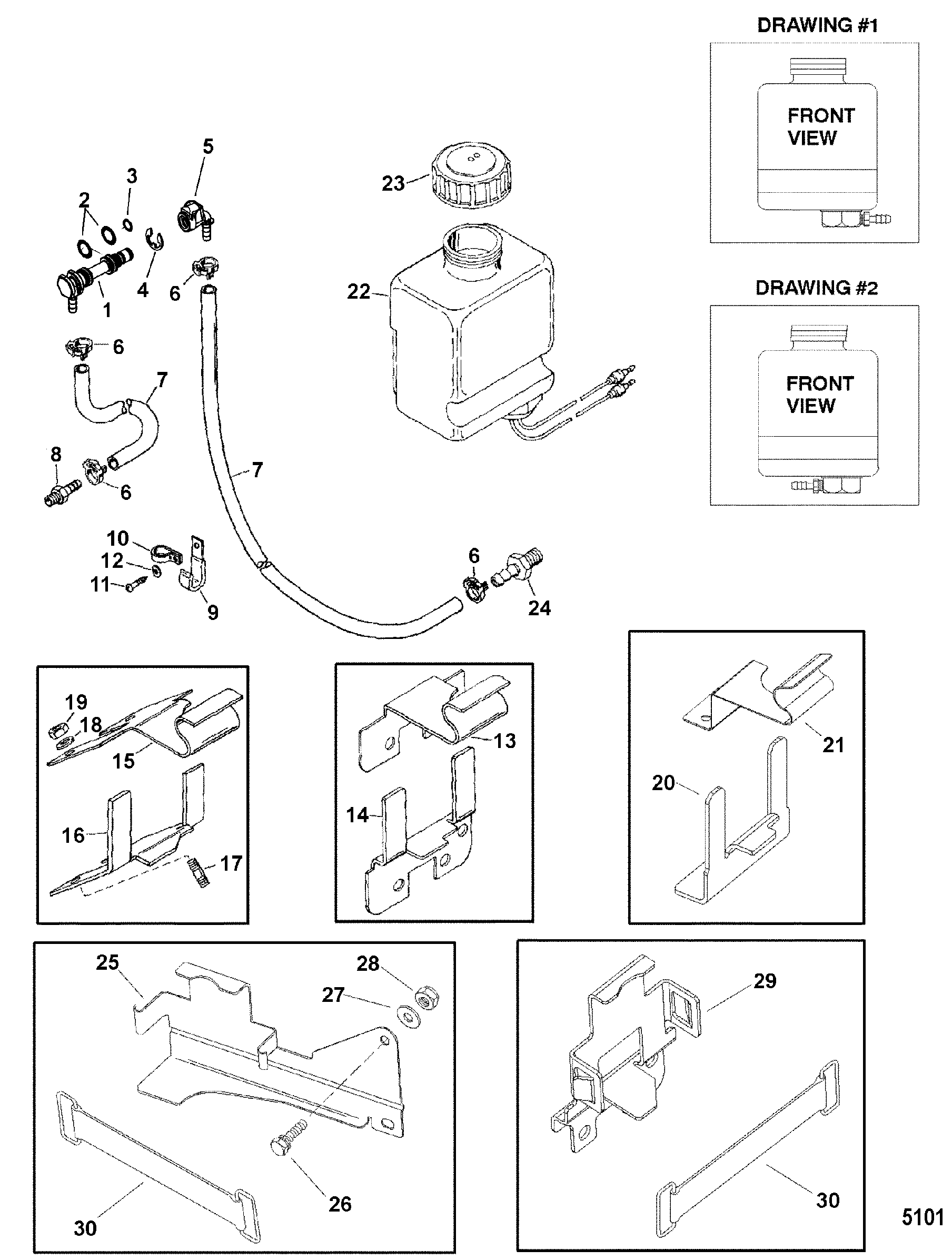

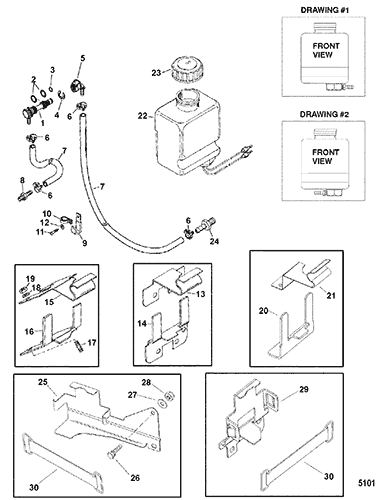

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing (Integrated And Hi Performance Transom)
- Bell Housing (Magnum Series Transom)
- Continuity Kit
- Drive Shaft Housing And Drive Gears (XR-XZ-Drive)
- Gear Housing (Bravo One XR Sportmaster)
- Gear Housing (Bravo One XR-XZ)
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Housing(Integrated Transom)
- Gimbal Ring And Steering Lever
- Gimbal Ring(Integrated Transom)
- Mercathode Kit
- Mercathode Kit(Integrated Transom)
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mount Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mount Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mount Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mount Reservoir) (Design III - 14336A31)
- Special Tools-Drive Shaft Housing
- Special Tools-Gear Housing (Bravo One)
- Special Tools-Transom
- Steering Cylinder (Integrated Transom)
- Sterndrive Unit Chart (Gasoline) BravoI (XR And XZ)
- Sterndrive Unit Chart (Integrated) Bravo I (XR And XZ)
- Transom Assembly Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
- Trim Pump Assembly (Complete)
- Universal Joint And Shifter Components (XR-XZ-Drive)
| Note: See "Oil Reservoir Components" For Illustrations | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 22-861150T02 | FITTING ASSEMBLY, Bulk Head | 1 | 22-861150A2 | |||||
| 2 | 25-201951 | O-RING, (.487 x .103) | 2 | ||||||
| 3 | 25-627021 | O-RING, (.301 x .070) | 1 | ||||||
| 4 | 53-87843 | E RING | 1 | ||||||
| 5 | 22-861163 | QUICK CONNECTOR, (90 Degree) | 1 | ||||||
| 6 | 54-415825 | CLAMP, Nylon | 4 | ||||||
| 7 | 32-8M0062600 | HOSE, (54.00 Inches Bulk) | 2 | 32-1940971 | (Cut To 9.50 Inch Length And 36.00 Inch Length) | ||||
| 8 | 22-16739 | CONNECTOR | 1 | ||||||
| 9 | 54-642351 | J CLIP | 1 | ||||||
| 10 | 54-23567 | CLIP | 1 | ||||||
| 11 | 10-60605 | SCREW, (#10-16 x .750) | 1 | ||||||
| 12 | 69205 | C WASHER | 1 | ||||||
| 13 | 806293T | BRACKET, Clip (3.0L/3.6L4.2L Diesel 7.4L/7.4LX/454/502) | 1 | (See Oil Reservoir Components For Illustrations) | |||||
| 14 | 860065A1 | BRACKET KIT (3.0L/3.6L4.2L Diesel 7.4L/7.4LX/454/502) | 1 | (See Oil Reservoir Components For Illustrations) | |||||
| 15 | 806292T1 | BRACKET | 1 | (See Oil Reservoir Components For Illustrations) | |||||
| 16 | 807025T | BRACKET | 1 | (See Oil Reservoir Components For Illustrations) | |||||
| 17 | 16-805357 | STUD, (.375-16 x 2.130) (4.3LX/5.7L/5.7LX) | 2 | (Carb) | |||||
| 18 | 12-20553 | WASHER, (.406 x .734 x .063) | 2 | ||||||
| 19 | 11-32219 | NUT, (.375-16) | 2 | ||||||
| 20 | 806649T | BRACKET (262 Magnum EFI) | 1 | (See Oil Reservoir Components For Illustrations) | |||||
| 21 | 806650T | BRACKET (5.7L/5.7LX/350 Magnum (EFI) 262 Magnum EFI) | 1 | This Part is No Longer Available (See Oil Reservoir Components For Illustrations) | |||||
| 22 | 806193A51 | MONITOR ASSEMBLY, Oil | 1 | 806193A33 | (Fitting Pointing Toward Right Side) (See Drawing Number One) | ||||
| 22 | 806193A46 | RESERVOIR | 1 | 806193A30 | (Fitting Pointing Toward Left Side) (See Drawing Number Two) | ||||
| 23 | 36-8067271 | CAP, Drive Lube Monitor | 1 | ||||||
| 24 | 22-808624 | CONNECTOR | 1 | ||||||
| 25 | 807839T1 | BRACKET | 1 | This Part is No Longer Available (See Oil Reservoir Components For Illustrations) (4.3LX/4.3LXH/262 Magnum EFI 7.4L/454/7.4LX EFI) | |||||
| 26 | 10-657461 | SCREW AND LOCKWASHER, (.250-20 x .625) | 1 | (4.3LX/4.3LXH/262 Magnum EFI 7.4L/454/7.4LX EFI) | |||||
| 27 | 12-69057 | WASHER, (.281 x .734 x .063) | 1 | (4.3LX/4.3LXH/262 Magnum EFI 7.4L/454/7.4LX EFI) | |||||
| 28 | 11-8267088 | NUT, (.250-20) | 1 | (4.3LX/4.3LXH/262 Magnum EFI 7.4L/454/7.4LX EFI) | |||||
| NS | 806054A1 | RELOCATION KIT, Oil Reservoir | 1 | ||||||
| 29 | 860065A1 | BRACKET KIT | 1 | (See Note) (5.7L/5.7LX/350 Magnum) (Carb And EFI) (3.0L/3.6L4.2L Diesel/7.4L/7.4LX/454/502) | |||||
| 30 | 808023T | STRAP, Bracket | 1 | ||||||
