Bravo XR One - Serial 0L914990 Thru 0W239999 - Gear Housing (Bravo One XR-XZ)

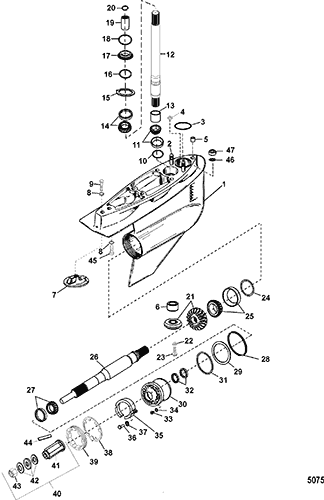

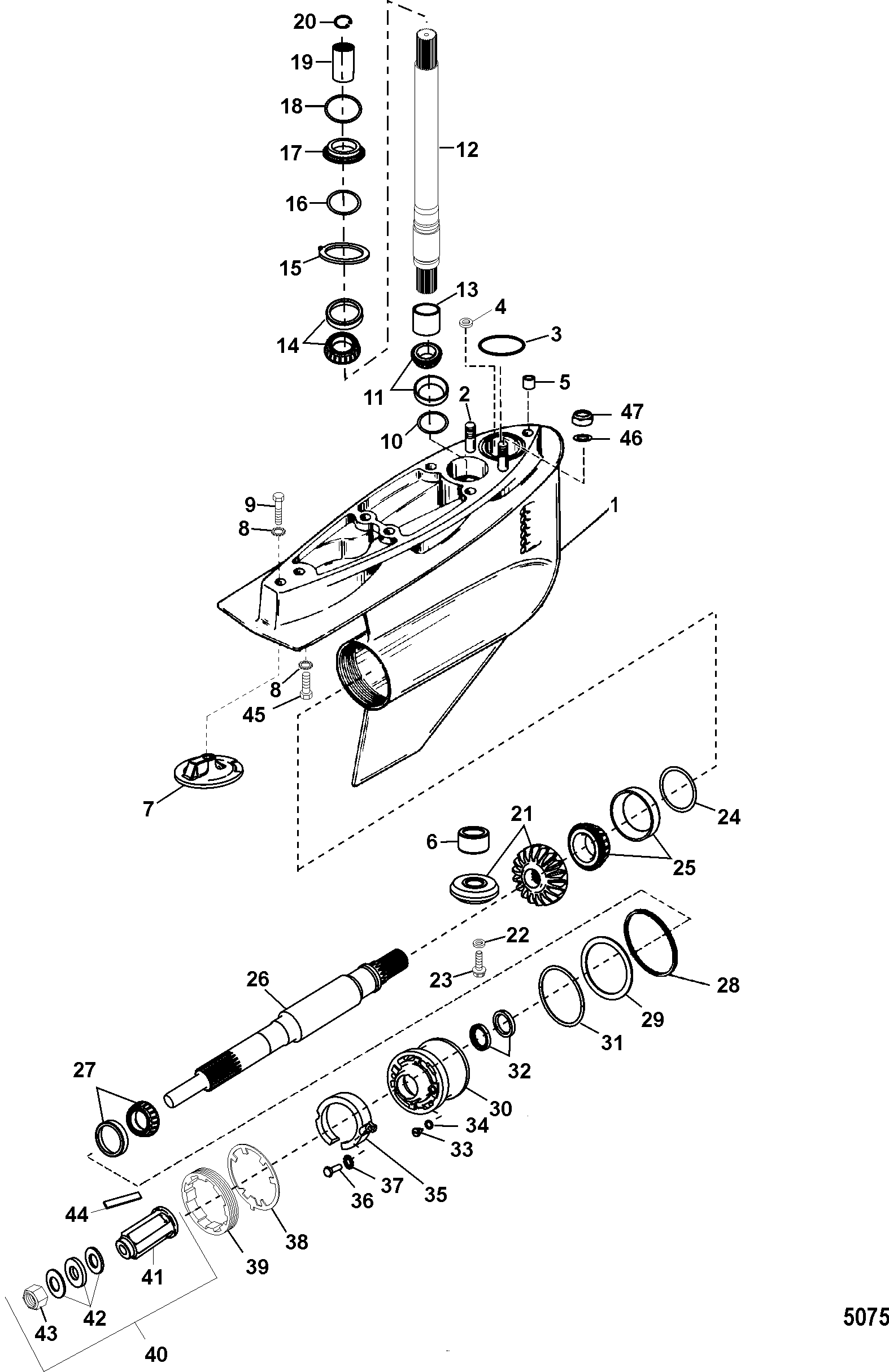

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing (Integrated And Hi Performance Transom)
- Bell Housing (Magnum Series Transom)
- Continuity Kit
- Drive Shaft Housing And Drive Gears (XR-XZ-Drive)
- Gear Housing (Bravo One XR Sportmaster)
- Gear Housing (Bravo One XR-XZ)
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Housing(Integrated Transom)
- Gimbal Ring And Steering Lever
- Gimbal Ring(Integrated Transom)
- Mercathode Kit
- Mercathode Kit(Integrated Transom)
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mount Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mount Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mount Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mount Reservoir) (Design III - 14336A31)
- Special Tools-Drive Shaft Housing
- Special Tools-Gear Housing (Bravo One)
- Special Tools-Transom
- Steering Cylinder (Integrated Transom)
- Sterndrive Unit Chart (Gasoline) BravoI (XR And XZ)
- Sterndrive Unit Chart (Integrated) Bravo I (XR And XZ)
- Transom Assembly Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
- Trim Pump Assembly (Complete)
- Universal Joint And Shifter Components (XR-XZ-Drive)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| _ | 1656-8866A62 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1656-8866A60 | (Bravo One Standard) (Hi Performance Propshaft) | |||||
| _ | 1656-8866A61 | GEAR HOUSING ASSEMBLY, (15/19), Complete | 1 | (Bravo One With Low Water Pick-Up) (Hi Performance Propshaft) | ||||||
| _ | 1656-8866A62 | GEAR HOUSING ASSEMBLY, (15/19), Complete | 1 | (Bravo One With Dual Water Pick-Up) (Hi Performance Propshaft) | ||||||
| 1 | 1656-8866A64 | GEAR HOUSING ASSEMBLY | 1 | 1656-8866A17 | (Bravo One Standard) | |||||
| 1 | 1656-8866A54 | GEAR HOUSING ASSEMBLY | 1 | (Bravo One With Low Water Pick-Up) | ||||||
| 1 | 1656-8866A64 | GEAR HOUSING ASSEMBLY | 1 | (Bravo One Dual Water Pick-Up) | ||||||
| 2 | 16-579203 | STUD, (.437-14/.437-20 x 2.060) | 2 | |||||||
| 3 | 25-33465 | O-RING | 1 | 15 | ||||||
| 4 | 26-455771 | SEAL | 1 | 15 | ||||||
| 5 | 26-805344 | SEAL, (.625 Outside Diameter) | 1 | |||||||
| 6 | 31-86754T | BEARING ASSEMBLY, Roller | 1 | |||||||
| 7 | 76214Q5 | ANODE KIT | 1 | |||||||
| 8 | 13-806210 | LOCKWASHER, (.437) | 1 | |||||||
| 9 | 10-806327 | SCREW, (.437-14 x 1.750) | 1 | |||||||
| 10 | 15-92914A1 | SHIM KIT | AR | |||||||
| 11 | 31-99328A1 | BEARING ASSEMBLY, Tapered Roller | 1 | 31-66668A1 | ||||||
| 12 | 45-858517A3 | DRIVESHAFT ASSEMBLY, (16.085 Long) | 1 | |||||||
| 13 | 31-815901 | RACE, Bearing | 1 | |||||||
| 14 | 31-86748A1 | BEARING ASSEMBLY, Tapered Roller | 1 | |||||||
| 15 | 14-86739 | TAB WASHER | 1 | 15 | ||||||
| 16 | 15-86749A1 | SHIM KIT | AR | |||||||
| 17 | 23-92916 | SPACER | 1 | |||||||
| 18 | 25-20826 | 700-82280 | 525-25-20826 | O-RING, (2.230 x .139) | 1 | |||||
| 19 | 88243A3 | COUPLING ASSEMBLY | 1 | |||||||
| 20 | 53-88242 | RING, Retaining | 1 | |||||||
| 21 | 43-818928A2 | GEAR SET, (15/19) | 1 | |||||||
| 21 | 43-840872A1 | GEAR SET, (15/17) | 1 | |||||||
| 21 | 43-840870A1 | GEAR SET, (17/18) | 1 | |||||||
| 22 | 12-805068 | WASHER | 1 | |||||||
| 23 | 10-808027 | SCREW | 1 | |||||||
| 24 | 15-87157A1 | SHIM KIT | AR | |||||||
| 25 | 31-86752A1 | BEARING ASSEMBLY, Tapered Roller | 1 | |||||||
| 26 | 44-840377T | PROPELLER SHAFT | 1 | |||||||
| 27 | 31-812767A1 | BEARING ASSEMBLY, Tapered Roller | 1 | |||||||
| 28 | 67440T | LOAD RING | 1 | |||||||
| 29 | 12-42256 | THRUST WASHER, (.105 Inch Thick) | 1 | |||||||
| 30 | 840372A2 | CARRIER ASSEMBLY, Bearing | 1 | |||||||
| 31 | 25-31534 | O-RING | 1 | 15 | ||||||
| 32 | 26-815565 | SEAL, Oil | 2 | 15 | ||||||
| 33 | 22-8M0058389 | FITTING KIT, Magnetic, Plug Fill/Drain | 1 | 22-67892A1 | ||||||
| 34 | 12-191833 | WASHER, Sealing | 1 | 12-191832 | 15 | |||||
| 35 | 806188Q01 | ANODE ASSEMBLY | 1 | 806188A1 | ||||||
| 36 | 10-806290 | SCREW, (#10-32 x .625) | 2 | |||||||
| 37 | 13-69432 | 700-21491 | 525-13-69432 | LOCKWASHER, External (#10) | 2 | |||||
| 38 | 14-18323 | TAB WASHER, Keyed | 1 | |||||||
| 39 | 8M2011027 | RETAINER, Bearing Carrier | 1 | 79448 | ||||||
| 40 | 840389K06 | HUB ASSEMBLY, Propeller | 1 | 840389A5 | ||||||
| 41 | NSS | NOT SOLD SEPARATE, Hub, Propeller | 1 | This Part is not sold separately | ||||||
| 42 | 12-840383A2 | WASHER/NUT KIT | 1 | 12-840383A1 | ||||||
| 43 | 11-52707Q1 | PROP NUT KIT, (.750-16) | 1 | |||||||
| 44 | 840382A02 | SNUBBER STRIP KIT | 1 | 840382A1 | ||||||
| 45 | 10-90084 | 525-10-90084 | SCREW, (.437-14 x 1.500) | 1 | ||||||
| 46 | 12-861854 | WASHER, (.453 x .750 x .032) Stainless Steel | 2 | |||||||
| 47 | 11-35053 | NUT, (.437-20) | 2 | |||||||
| NS | 26-815565A02 | SEAL KIT, Gear Housing | AR | 26-815565A1 | ||||||
| NS | 888758Q02 | ANODE KIT, Aluminium | AR | 888758A1 | (Bravo One) | |||||
| NS | 888757Q02 | ANODE KIT, Magnesium | AR | 888757A1 | (Bravo One) |
