Bravo XR One - Serial 0L914990 Thru 0W239999 - Gear Housing (Bravo One XR Sportmaster)

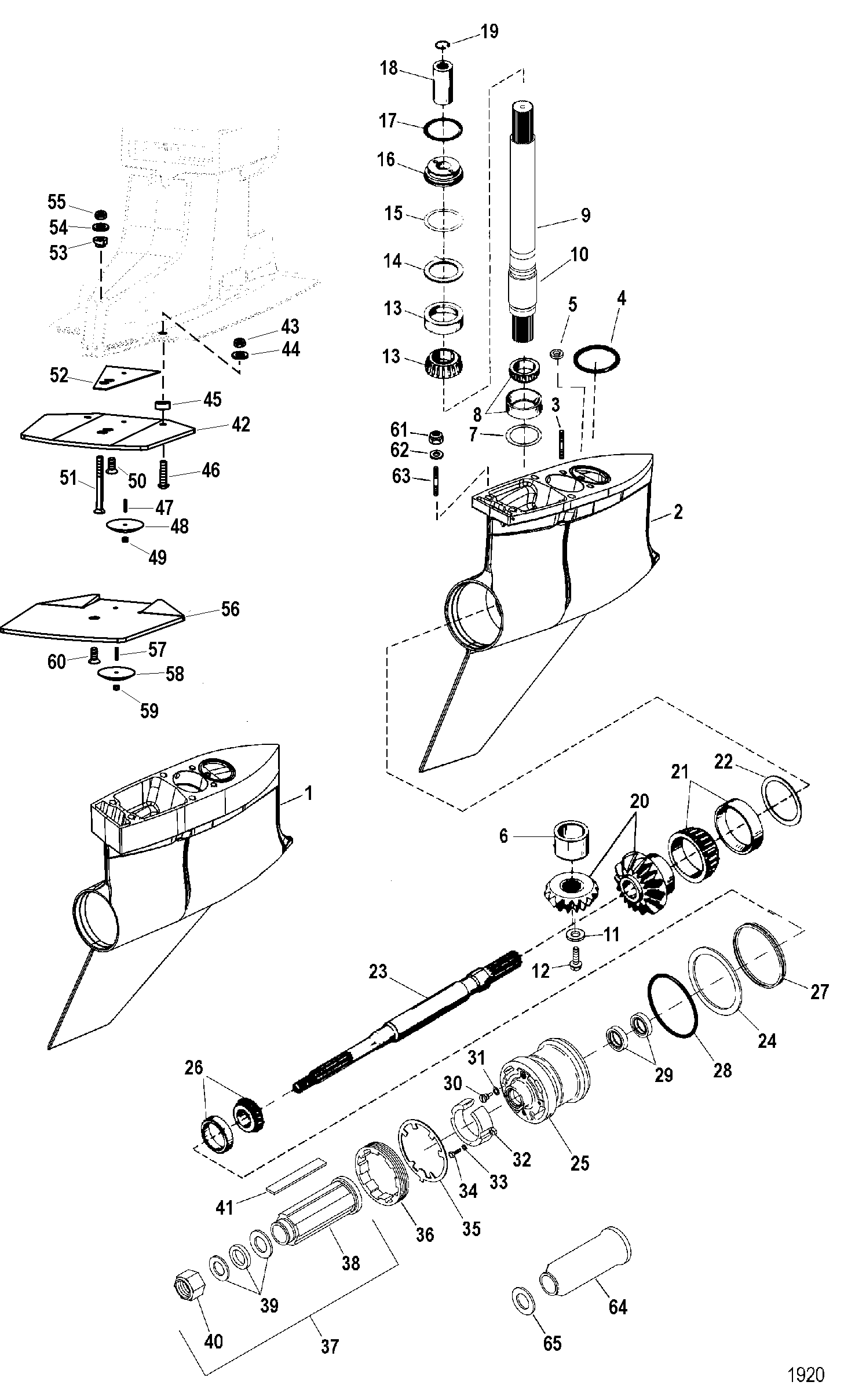

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing (Integrated And Hi Performance Transom)
- Bell Housing (Magnum Series Transom)
- Continuity Kit
- Drive Shaft Housing And Drive Gears (XR-XZ-Drive)
- Gear Housing (Bravo One XR Sportmaster)
- Gear Housing (Bravo One XR-XZ)
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Housing(Integrated Transom)
- Gimbal Ring And Steering Lever
- Gimbal Ring(Integrated Transom)
- Mercathode Kit
- Mercathode Kit(Integrated Transom)
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mount Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mount Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mount Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mount Reservoir) (Design III - 14336A31)
- Special Tools-Drive Shaft Housing
- Special Tools-Gear Housing (Bravo One)
- Special Tools-Transom
- Steering Cylinder (Integrated Transom)
- Sterndrive Unit Chart (Gasoline) BravoI (XR And XZ)
- Sterndrive Unit Chart (Integrated) Bravo I (XR And XZ)
- Transom Assembly Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
- Trim Pump Assembly (Complete)
- Universal Joint And Shifter Components (XR-XZ-Drive)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1600-883608T49 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T9 | (17/18 Long Style) (Design I - Splash Plate 841009T1) | ||||
| - | 1600-883608T49 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T19 | (17/18 Long Style) (Design II - Splash Plate 842825T01) | ||||
| - | 1600-883608T50 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T10 | (17/18 Short Style) (Design I - Splash Plate 841009T1) | ||||
| - | 1600-883608T50 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T20 | (17/18 Short Style) (Design II - Splash Plate 842825T01) | ||||
| - | 1600-883608T51 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T11 | (15/17 Long Style) (Design I - Splash Plate 841009T1) | ||||
| - | 1600-883608T51 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T21 | (15/17 Long Style) (Design II - Splash Plate 842825T01) | ||||
| - | 1600-883608T52 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T12 | (15/17 Short Style) (Design I - Splash Plate 841009T1) | ||||
| - | 1600-883608T52 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T22 | (15/17 Short Style) (Design II - Splash Plate 842825T01) | ||||
| - | 1600-883608T53 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T13 | (15/19 Long Style) (Design I - Splash Plate 841009T1) | ||||
| - | 1600-883608T53 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T23 | (15/19 Long Style) (Design II - Splash Plate 842825T01) | ||||
| - | 1600-883608T54 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T14 | (15/19 Short Style) (Design I - Splash Plate 841009T1) | ||||
| - | 1600-883608T54 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T24 | (15/19 Short Style) (Design II - Splash Plate 842825T01) | ||||
| 1 | 1600-883608T55 | GEAR HOUSING ASSEMBLY, Long Style | 1 | 1600-883608T15 | (Design I - Splash Plate 841009T1) | ||||
| 1 | 1600-883608T55 | GEAR HOUSING ASSEMBLY, Long Style | 1 | 1600-883608T27 | (Design II - Splash Plate 842825T01) | ||||
| 2 | 1600-883608T56 | GEAR HOUSING ASSEMBLY, Short Style | 1 | 1600-883608T16 | (Design I - Splash Plate 841009T1) | ||||
| 2 | 1600-883608T56 | GEAR HOUSING ASSEMBLY, Short Style | 1 | 1600-883608T28 | (Design II - Splash Plate 842825T01) | ||||
| 3 | 16-579203 | 525-16-579203 | STUD, (.437-14/.437-20 x 2.060) | 2 | |||||
| 4 | 25-33465 | 676-9-76516 | 700-81430 | 525-25-33465 | O-RING | 1 | |||
| 5 | 26-455771 | 525-26-455771 | SEAL, Quad Ring | 1 | |||||
| 6 | 31-86754T | 525-31-86754T | BEARING ASSEMBLY, Roller | 1 | |||||
| 7 | 15-92914A1 | 525-15-92914A1 | SHIM KIT | AR | |||||
| 8 | 31-99328A1 | 700-21581 | 525-31-99328A1 | BEARING ASSEMBLY, Tapered Roller | 1 | 31-66668A1 | |||
| 9 | 45-858517A3 | 525-45-858517A3 | DRIVESHAFT ASSEMBLY, (16.085 Long) | 1 | (Long Style Models) | ||||
| 9 | 45-840979T1 | DRIVESHAFT ASSEMBLY, (14.085 Long) | 1 | (Short Style Models) | |||||
| 10 | 31-815901 | 525-31-815901 | RACE, Bearing | 1 | |||||
| 11 | 12-805068 | 525-12-805068 | WASHER | 1 | |||||
| 12 | 10-808027 | SCREW | 1 | ||||||
| 13 | 31-86748A1 | 700-21512 | 525-31-86748A1 | BEARING ASSEMBLY, Tapered Roller | 1 | ||||
| 14 | 14-86739 | 525-14-86739 | TAB WASHER | 1 | |||||
| 15 | 15-86749A1 | 525-15-86749A1 | SHIM KIT | AR | |||||
| 16 | 23-92916 | 525-23-8M0046302 | SPACER | 1 | |||||
| 17 | 25-20826 | 700-82280 | 525-25-20826 | O-RING, (2.230 x .139) | 1 | ||||
| 18 | 88243A3 | 525-88243A3 | COUPLING ASSEMBLY | 1 | |||||
| 19 | 53-88242 | 525-53-88242 | RING, Retaining | 1 | |||||
| 20 | 43-818928A2 | GEAR SET, (15/19) | 1 | ||||||
| 20 | 43-840872A1 | GEAR SET, (15/17) | 1 | ||||||
| 20 | 43-840870A1 | GEAR SET, (17/18) | 1 | ||||||
| 21 | 31-86752A1 | 700-21592 | 525-31-86752A1 | BEARING ASSEMBLY, Tapered Roller | 1 | ||||
| 22 | 15-87157A1 | 525-15-87157A1 | SHIM KIT | AR | |||||
| 23 | 44-840377T | 525-44-840377T | PROPELLER SHAFT | 1 | |||||
| 24 | 12-42256 | 525-12-42256 | THRUST WASHER, (.105 Inch Thick) | 1 | |||||
| 25 | 840372A2 | 525-840372A2 | CARRIER ASSEMBLY, Bearing | 1 | |||||
| 26 | 31-812767A1 | 700-21541 | 525-31-812767A1 | BEARING ASSEMBLY, Tapered Roller | 1 | ||||
| 27 | 67440T | 525-67440T | LOAD RING | 1 | |||||
| 28 | 25-31534 | 676-9-76544 | 525-25-31534 | O-RING | 1 | ||||
| 29 | 26-815565 | 26-815565 | SEAL, Oil | 2 | |||||
| 30 | 22-8M0058389 | 700-21731 | 525-22-8M0058389 | FITTING KIT, Magnetic, Plug Fill/Drain | 1 | 22-67892A1 | |||
| 31 | 12-191833 | 525-12-191833 | WASHER, Sealing | 1 | 12-191832 | ||||
| 32 | 806188Q01 | 700-12756 | 525-806188Q01 | ANODE ASSEMBLY | 1 | 806188A1 | |||
| 33 | 13-69432 | 700-21491 | 525-13-69432 | LOCKWASHER, External (#10) | 2 | ||||
| 34 | 10-806290 | 700-12832 | 525-10-806290 | SCREW, (#10-32 x .625) | 2 | ||||
| 35 | 14-18323 | 676-9-72640 | 525-14-18323 | TAB WASHER, Keyed | 1 | ||||
| 36 | 8M2011027 | 700-21120 | 525-8M2011027 | RETAINER, Bearing Carrier | 1 | 79448 | |||
| 37 | 840389K06 | 525-840389K06 | HUB KIT, Propeller | 1 | 840389K5 | ||||
| 38 | NSS | NOT SOLD SEPARATE, Propeller Hub | 1 | This Part is not sold separately | |||||
| 39 | 12-840383A2 | 525-12-840383A2 | WASHER/NUT KIT | 1 | |||||
| 40 | 11-52707Q1 | 700-21230 | PROP NUT KIT, (.750-16) | 1 | |||||
| 41 | 840382A02 | 525-840382A02 | SNUBBER STRIP KIT | 1 | 840382A1 | ||||
| 42 | 843042T03 | SPLASH PLATE KIT | 1 | 842825T01 | (Design II) | ||||
| 43 | 11-82670910 | NUT, (.312-18) Stainless Steel | 2 | ||||||
| 44 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 2 | |||||
| 45 | 23-844105 | SPACER | 2 | ||||||
| 46 | 10-842831 | SCREW, (.312-18 x 1.25) | 2 | ||||||
| 47 | 16-8M0034461 | STUD, (#10-32 x .930) | 1 | 16-21085 | |||||
| 48 | 847332 | ANODE | 1 | ||||||
| 49 | 11-8267096 | NUT, (#10-32) Stainless Steel | 1 | ||||||
| 50 | 10-841031 | SCREW, (.437-14 x 1.00) | 1 | ||||||
| 51 | 10-842827 | SCREW, (.437-14 x 4.00) | 1 | ||||||
| 52 | 27-842826 | GASKET, Splash Plate | 1 | ||||||
| 53 | 23-842828 | BUSHING | 1 | ||||||
| 54 | 12-35935 | WASHER, (.435 x .875 x .105) Stainless Steel | 1 | ||||||
| 55 | 11-826709014 | NUT, (.437-14) Stainless Steel | 1 | ||||||
| 56 | 842825T01 | SPLASH PLATE ASSEMBLY | 1 | 841009T1 | (Design I) | ||||
| 57 | 16-8M0034461 | STUD, (#10-32 x .930) | 1 | 16-21085 | |||||
| 58 | 847332 | ANODE | 1 | ||||||
| 59 | 11-8267096 | NUT, (#10-32) Stainless Steel | 1 | ||||||
| 60 | 10-841031 | SCREW, (.437-14 x 1.00) | 1 | ||||||
| 61 | 11-35053 | 525-11-35053 | NUT, (.437-20) | 6 | |||||
| 62 | 12-861854 | 525-12-861854 | WASHER, (.453 x .750 x .032) Stainless Steel | 6 | |||||
| 63 | 16-579203 | 525-16-579203 | STUD, (.437-14/.437-20 x 2.060) | 4 | (Short Style Models) | ||||
| 63 | 16-841024001 | STUD, (.437-14/.437-20 x 4.250) | 4 | (Long Style Models) | |||||
| 64 | 8480611 | COVER, Propshaft | 1 | ||||||
| 65 | 12-85344 | WASHER, (.750 Inside Diameter) | 1 | ||||||
| - | 843122T01 | FLUSH ATTACHMENT | 1 | With Bungee Cord - Orange | |||||
| - | 26-815565A02 | 525-26-815565A02 | SEAL KIT, Gear Housing | 1 |
