Bravo XR Sportmaster - Serial 0M906878 and Up - Bell Housing (Integrated and Hi Performance Transom)

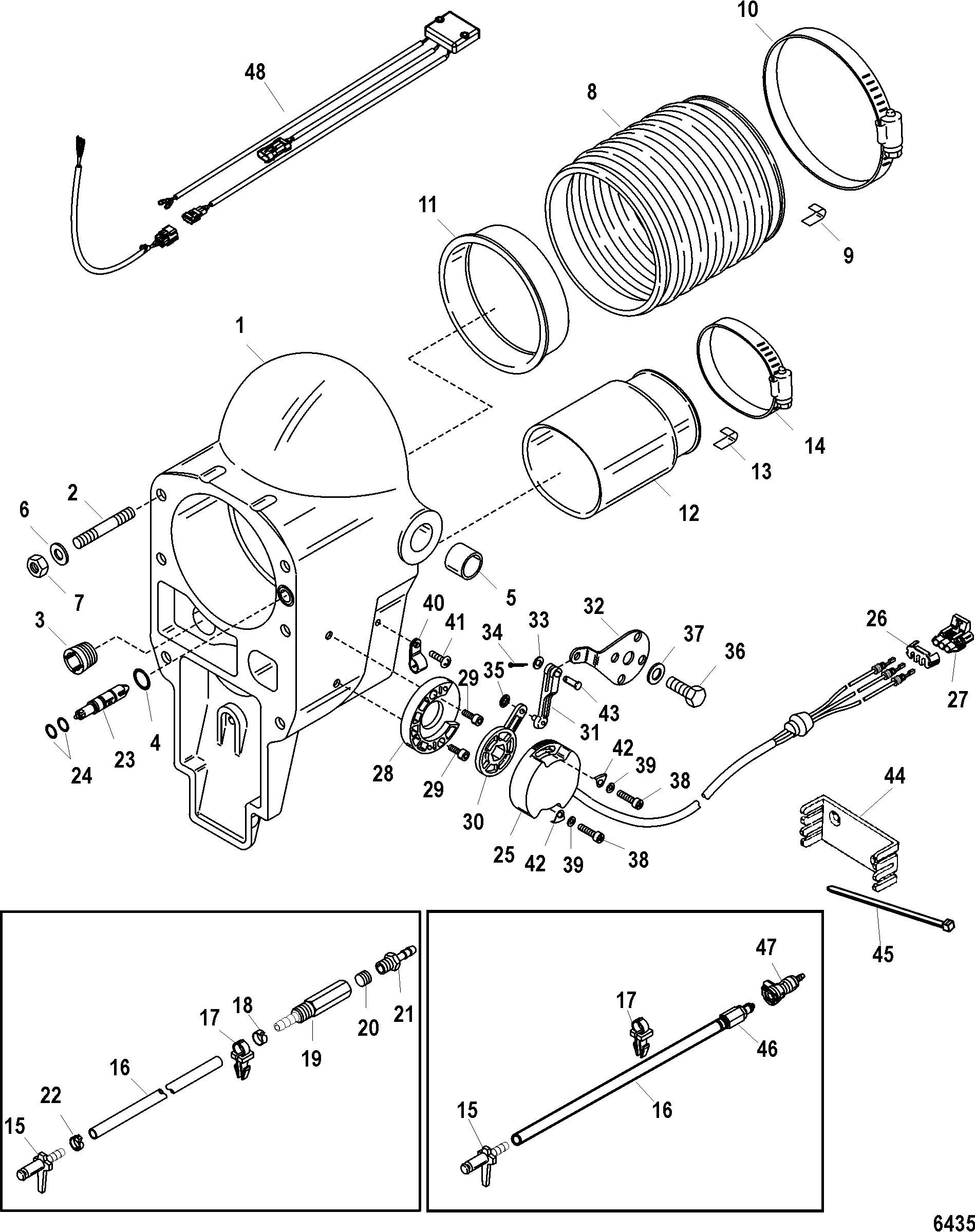

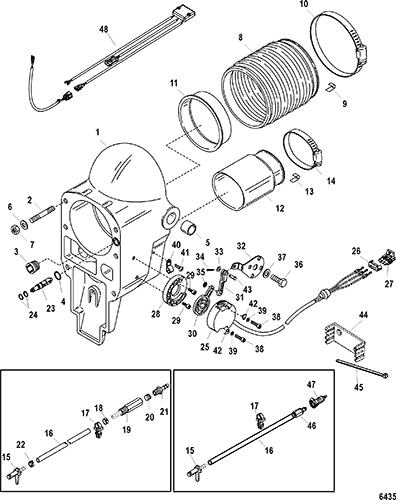

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Bell Housing (Integrated and Hi Performance Transom)
- Continuity Kit
- Driveshaft Housing and Drive Gears
- Gear Housing (Bravo I XR)
- Gear Housing (Bravo I XR-SportMaster)(0M955633 and Below)
- Gear Housing (Bravo I XR-SportMaster)(0M955634 and Up)
- Gear Housing (Bravo III)
- Gear Lube Monitor Components
- Gimbal Housing
- Gimbal Housing (Integrated Transom)
- Gimbal Housing Cover
- Gimbal Ring (Integrated Transom)
- Gimbal Ring and Steering Lever
- Mercathode Kit
- Mercathode Kit (Integrated Transom)
- Power Steering Actuator (Integrated Transom)
- Power Steering Actuator (Magnum And Hi-Performance Transom)
- Special Tools (Driveshaft Housing)
- Special Tools (Gear Housing Bravo I)
- Special Tools (Transom)
- Sterndrive Unit Chart, Bravo And Bravo I XR (SportMaster)
- Sterndrive Unit Chart, Bravo I-III XR (Integrated Transom)
- Sterndrive Unit Chart, Bravo I-III XR (Standard Transom)
- Transom Assembly Chart
- Transom Plate and Shift Cable
- Trim Cylinder Components
- Trim Cylinders and Hydraulic Hoses (Standard Transoms)
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Universal Joint and Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 41646A11 | BELL HOUSING ASSEMBLY | 1 | ||||||
| 2 | 16-59579 | STUD, (.437-14/.437-20 x 2.812) | 6 | ||||||
| 3 | 41674T | INSERT | 1 | 41674 | |||||
| 4 | 25-62705 | O-RING | 1 | ||||||
| 5 | 23-847637 | BUSHING | 2 | ||||||
| 6 | 12-35935 | WASHER, (.435 x .875 x .105) Stainless Steel | 5 | ||||||
| 7 | 11-859116 | NUT, (.437-20) | 6 | ||||||
| 8 | 8M0062406 | BELLOWS ASSEMBLY | 1 | 86840A3 | |||||
| 9 | 54-86049 | 676-9-73116 | 700-89440 | CLIP, Grounding | 1 | ||||
| 10 | 54-815504372 | 700-01100 | CLAMP, Worm Gear | 1 | |||||
| 11 | 862209 | SLEEVE | 1 | ||||||
| 12 | 78458A1 | TUBE | 1 | ||||||
| 13 | 54-86049 | 676-9-73116 | 700-89440 | CLIP, Grounding | 1 | ||||
| 14 | 54-815504348 | 700-01070 | CLAMP, Worm Gear | 1 | |||||
| 15 | 815303T | ADAPTOR | 1 | 815303 | |||||
| 16 | 32-5495025 | TUBING, (25.00 Feet Bulk), Speedo | 1 | (Cut As Required) | |||||
| 17 | 54-12994 | CLIP | 1 | ||||||
| 18 | 865261 | CLAMP | 1 | 54-816606 | |||||
| 19 | 865261 | FITTING | 1 | (Hi Performance Transom) | |||||
| 20 | 22-878089 | PLUG, Pipe (.0625-27) | 1 | (Hi Performance Transom) | |||||
| 21 | 22-814382 | CONNECTOR | 1 | (Hi Performance Transom) | |||||
| 22 | 54-818557 | CLAMP | 1 | ||||||
| 23 | 18920A1 | VALVE ASSEMBLY | 1 | ||||||
| 24 | 25-48171 | O-RING, (.364. x .070) | 2 | ||||||
| 25 | 863187A2 | SENDER ASSEMBLY, Trim | 1 | (For Use With Digital or Analog) | |||||
| 26 | 831957 | RETAINER | 1 | ||||||
| 27 | 8307973 | CONNECTOR | 1 | ||||||
| 28 | 840846 | HOUSING, Actuator Arm Support | 1 | ||||||
| 29 | 10-90188 | SCREW, (#10-24 x .500) Stainless Steel | 2 | ||||||
| 30 | 840845 | ARM, Actuator | 1 | ||||||
| 31 | 840843 | LINK ROD | 1 | ||||||
| 32 | 840844 | BRACKET | 1 | ||||||
| 33 | 12-89302 | WASHER, (.203 x .406 x .040) | 1 | ||||||
| 34 | 18-210711 | COTTER PIN | 1 | 18-21071 | |||||
| 35 | 11-65110 | NUT | 1 | ||||||
| 36 | 10-99204 | SCREW, (.437-14 x 1.00) Stainless Steel | 1 | ||||||
| 37 | 12-842922 | WASHER, (.450 x .750 x .060) Stainless Steel | 1 | ||||||
| 38 | 10-37978 | SCREW, (#10-32 x .750) Stainless Steel | 2 | ||||||
| 39 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 40 | 54-26550 | CLAMP | 1 | ||||||
| 41 | 10-807754 | SCREW, (#10-24 x .38) | 1 | ||||||
| 42 | 57008 | RETAINER | 2 | ||||||
| 43 | 17-67297 | PIN, Clevis | 1 | ||||||
| 44 | 79146 | RETAINER | 1 | ||||||
| 45 | 54-816311T | 700-21465 | TIE STRAP, (8.00 Inches) | 1 | |||||
| 46 | 865391 | FITTING ASSEMBLY, Speedometer, Male Quick Connect | 1 | (Integrated Transom) | |||||
| 47 | 22-865417 | FITTING, Female Quick Connect | 1 | (Integrated Transom) | |||||
| 48 | 884359T1 | MODULE ASSEMBLY, Trim Sender | 1 |
