Bravo XR Sportmaster - Serial 0M906878 and Up - Power Steering Actuator (Integrated Transom)

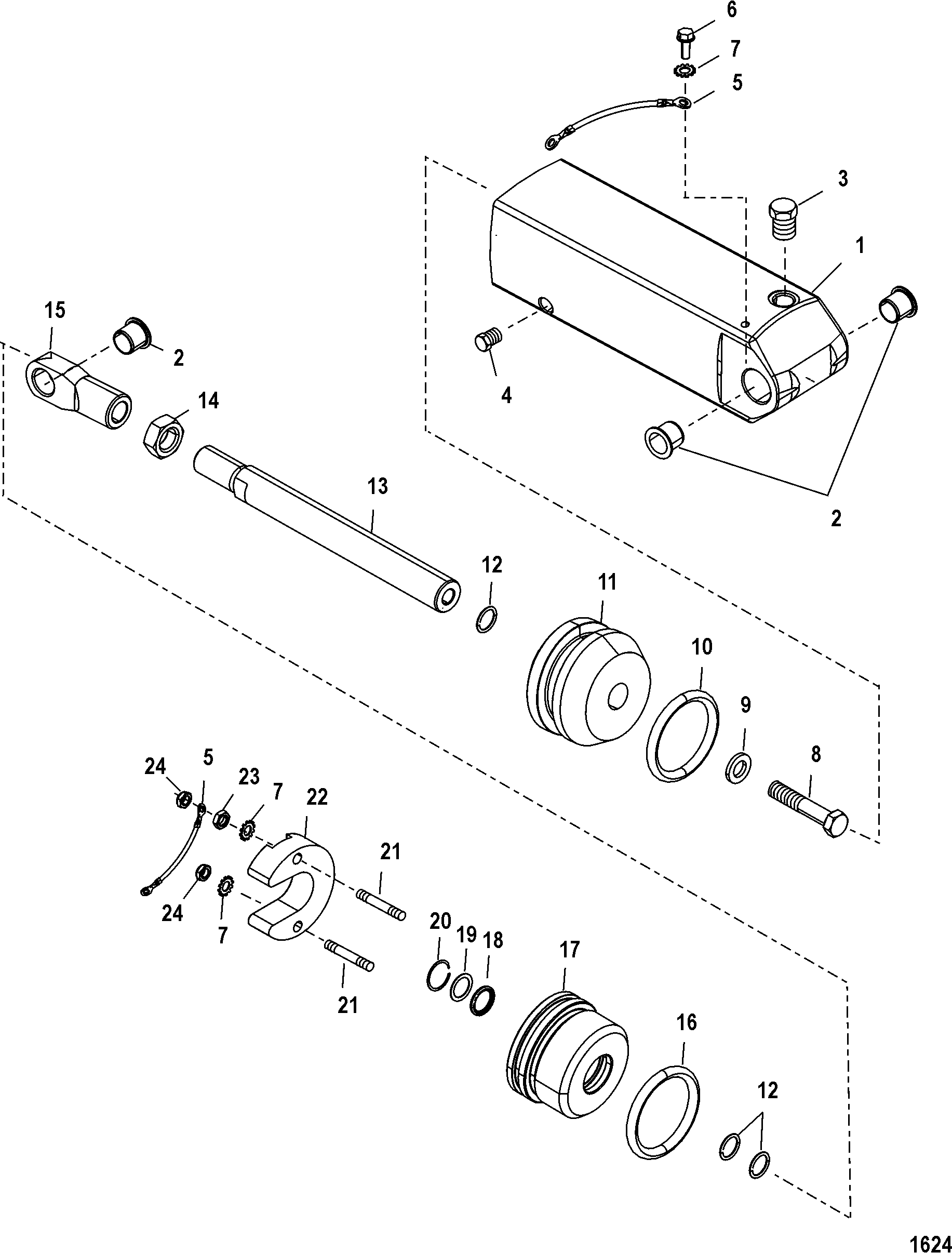

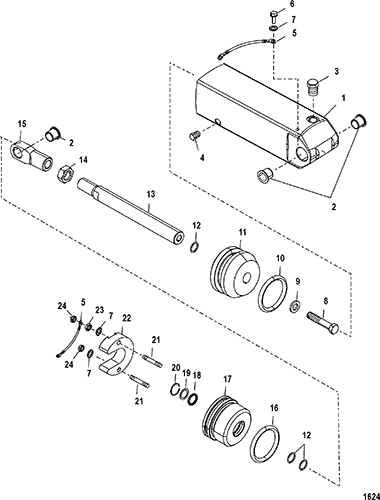

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Bell Housing (Integrated and Hi Performance Transom)
- Continuity Kit
- Driveshaft Housing and Drive Gears
- Gear Housing (Bravo I XR)
- Gear Housing (Bravo I XR-SportMaster)(0M955633 and Below)
- Gear Housing (Bravo I XR-SportMaster)(0M955634 and Up)
- Gear Housing (Bravo III)
- Gear Lube Monitor Components
- Gimbal Housing
- Gimbal Housing (Integrated Transom)
- Gimbal Housing Cover
- Gimbal Ring (Integrated Transom)
- Gimbal Ring and Steering Lever
- Mercathode Kit
- Mercathode Kit (Integrated Transom)
- Power Steering Actuator (Integrated Transom)
- Power Steering Actuator (Magnum And Hi-Performance Transom)
- Special Tools (Driveshaft Housing)
- Special Tools (Gear Housing Bravo I)
- Special Tools (Transom)
- Sterndrive Unit Chart, Bravo And Bravo I XR (SportMaster)
- Sterndrive Unit Chart, Bravo I-III XR (Integrated Transom)
- Sterndrive Unit Chart, Bravo I-III XR (Standard Transom)
- Transom Assembly Chart
- Transom Plate and Shift Cable
- Trim Cylinder Components
- Trim Cylinders and Hydraulic Hoses (Standard Transoms)
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Universal Joint and Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 845760T3 | CYLINDER ASSEMBLY, Steering, Starboard | 1 | |||||||
| 1 | 845760T6 | CYLINDER ASSEMBLY, Steering, Port | 1 | |||||||
| 2 | 23-8159501 | BUSHING | 3 | |||||||
| 3 | NSS | NOT SOLD SEPARATE, Plug | 1 | This Part is not sold separately | ||||||
| 4 | NSS | NOT SOLD SEPARATE, Plug | 1 | This Part is not sold separately | ||||||
| 5 | 847062A1 | BONDING KIT | 2 | |||||||
| 6 | 10-68513 | SCREW, (#10-32 x .375) Stainless Steel | 1 | |||||||
| 7 | 13-69432 | 700-21491 | 525-13-69432 | LOCKWASHER, External (#10) | 3 | |||||
| 8 | 10-35871 | SCREW, (.375-24 x 1.500) | 1 | |||||||
| 9 | 12-27880 | WASHER | 1 | |||||||
| 10 | NSS | NOT SOLD SEPARATE, O-Ring, Component Of Seal Kit | 1 | This Part is not sold separately | ||||||
| 11 | NSS | NOT SOLD SEPARATE, Piston | 1 | This Part is not sold separately | ||||||
| 12 | NSS | NOT SOLD SEPARATE, O-Ring, Component Of Seal Kit | 3 | This Part is not sold separately | ||||||
| 13 | NSS | NOT SOLD SEPARATE, Piston Rod | 1 | This Part is not sold separately | ||||||
| 14 | 11-845997 | NUT, (.625-18) | 1 | |||||||
| 15 | NSS | NOT SOLD SEPARATE, Rod End | 1 | This Part is not sold separately | ||||||
| 16 | NSS | NOT SOLD SEPARATE, O-Ring, Component Of Seal Kit | 1 | This Part is not sold separately | ||||||
| 17 | 8M0050236 | END CAP | 1 | 840768T | ||||||
| 18 | NSS | NOT SOLD SEPARATE, Rod Scraper, Component Of Seal Kit | 1 | This Part is not sold separately | ||||||
| 19 | NSS | NOT SOLD SEPARATE, Washer, Component Of Seal Kit | 1 | This Part is not sold separately | ||||||
| 20 | NSS | NOT SOLD SEPARATE, Retaining Ring, Component Of Seal Kit | 1 | This Part is not sold separately | ||||||
| 21 | 16-840854 | STUD, (#10-32 x 1.22) | 2 | |||||||
| 22 | 806189Q1 | ANODE | 1 | |||||||
| 23 | 11-840853 | NUT, (#10-32) Stainless Steel | 1 | |||||||
| 24 | 11-859124 | NUT, (#10-32) Stainless Steel | 2 | |||||||
| NS | 25-87298A1 | SEAL KIT, Steering Cylinder | 1 |
