Bravo XR Sportmaster - Serial 0M906878 and Up - Universal Joint and Shift Components

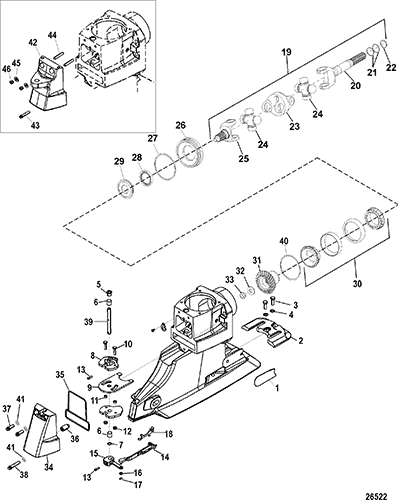

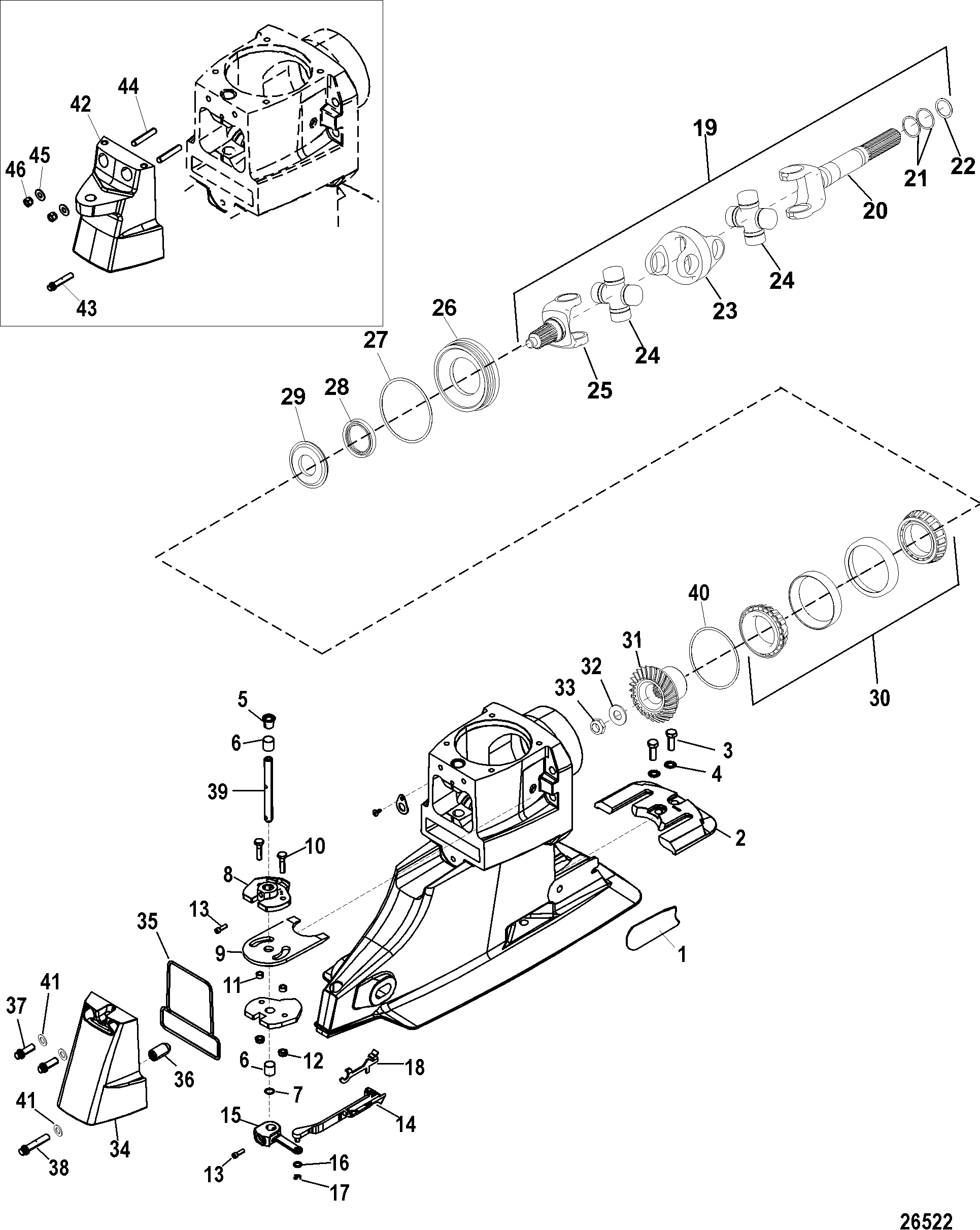

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Bell Housing (Integrated and Hi Performance Transom)
- Continuity Kit
- Driveshaft Housing and Drive Gears
- Gear Housing (Bravo I XR)
- Gear Housing (Bravo I XR-SportMaster)(0M955633 and Below)
- Gear Housing (Bravo I XR-SportMaster)(0M955634 and Up)
- Gear Housing (Bravo III)
- Gear Lube Monitor Components
- Gimbal Housing
- Gimbal Housing (Integrated Transom)
- Gimbal Housing Cover
- Gimbal Ring (Integrated Transom)
- Gimbal Ring and Steering Lever
- Mercathode Kit
- Mercathode Kit (Integrated Transom)
- Power Steering Actuator (Integrated Transom)
- Power Steering Actuator (Magnum And Hi-Performance Transom)
- Special Tools (Driveshaft Housing)
- Special Tools (Gear Housing Bravo I)
- Special Tools (Transom)
- Sterndrive Unit Chart, Bravo And Bravo I XR (SportMaster)
- Sterndrive Unit Chart, Bravo I-III XR (Integrated Transom)
- Sterndrive Unit Chart, Bravo I-III XR (Standard Transom)
- Transom Assembly Chart
- Transom Plate and Shift Cable
- Trim Cylinder Components
- Trim Cylinders and Hydraulic Hoses (Standard Transoms)
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Universal Joint and Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1589-865440H56 | HOUSING ASSEMBLY, Driveshaft - Complete (16/19) | 1 | (Use With Magnum and Hi-Performance Transom) | |||||
| - | 1589-865440H73 | HOUSING ASSEMBLY, Driveshaft - Complete (16/19) | 1 | (Use With Integrated Transom) | |||||
| - | 1500-866459J04 | HOUSING ASSEMBLY, Driveshaft - Complete (16/19) | 1 | (SEACORE)(Use With Magnum and Hi-Performance Transom) | |||||
| - | 1589-865440H70 | HOUSING, Driveshaft - Basic | 1 | ||||||
| - | 1500-866459J00 | HOUSING, Driveshaft - Basic | 1 | (SEACORE) | |||||
| 1 | 805261A1 | WEAR PAD KIT | 1 | ||||||
| 2 | 821630Q1 | ANODE ASSEMBLY | 1 | ||||||
| 3 | 10-65210 | SCREW, (.375-16 x 1.00) | 2 | ||||||
| 4 | 13-35479 | LOCKWASHER, (.375) | 2 | ||||||
| 5 | 19-865866 | PLUG, Shift Shaft Oil Seal | 1 | ||||||
| 6 | 23-861209A1 | BUSHING KIT | 1 | ||||||
| 7 | 26-127091 | SEAL | 1 | ||||||
| 8 | 806552A1 | YOKE AND CAM ASSEMBLY | 1 | ||||||
| 9 | 806552 | YOKE, Shifter | 1 | ||||||
| 10 | 10-805733 | SCREW, (.250-28 x 1.00) | 2 | ||||||
| 11 | 23-12706 | SPACER, (.194 x .375) | 2 | ||||||
| 12 | 11-8267139 | NUT, (.250-28) | 2 | ||||||
| 13 | 10-865900 | SCREW, (.250-28 x .930) | 2 | 10-865712 | |||||
| 14 | 861175A2 | SHIFT LINKAGE ASSEMBLY, High Bump Shift Lever | 1 | ||||||
| 15 | NSS | NOT SOLD SEPARATE, SHIFT LEVER | 1 | This Part is not sold separately | |||||
| 16 | 12-20583 | WASHER | 1 | ||||||
| 17 | 18-26953 | COTTER PIN | 1 | ||||||
| 18 | 86776 | LATCH | 1 | ||||||
| 19 | 865425A03 | UNIVERSAL JOINT ASSEMBLY | 1 | ||||||
| 19 | 865425T02 | UNIVERSAL JOINT ASSEMBLY | 1 | (Use With Integrated Transom Assemblies) | |||||
| 20 | 866133A01 | YOKE, Splined, Coupler End | 1 | ||||||
| 20 | 866135A01 | YOKE, Splined, Coupler End | 1 | (Integrated Transom Assembly) | |||||
| 21 | 25-29845 | O-RING, (.924 x .103) | 2 | 17 | |||||
| 22 | 25-35027 | 700-81180 | 525-25-35027 | O-RING, (1.046) | 1 | 17 | |||
| 23 | 866137T | SOCKET, Center | 1 | ||||||
| 24 | 866136A01 | CROSS AND BEARING | 1 | ||||||
| 25 | 866134T | YOKE, Gear End | 1 | ||||||
| 26 | 11-841026A2 | RETAINER/SEAL KIT | 1 | ||||||
| 27 | 25-861844 | O-RING | 1 | ||||||
| 28 | 26-43993 | SEAL, Oil | 1 | ||||||
| 29 | 12-862134 | WASHER | 1 | ||||||
| 30 | 31-86763A04 | BEARING ASSEMBLY, Tapered Roller | 1 | ||||||
| 31 | 43-849320T | GEAR, (16 Teeth) | 1 | ||||||
| 32 | 12-861832 | WASHER | 1 | ||||||
| 33 | 11-22339 | 700-28360 | 525-11-22339 | NUT, (.625-18) | 1 | 11-97522 | |||
| 34 | 865441A02 | COVER ASSEMBLY, Back | 1 | (Use With Magnum and Hi-Performance Transom) | |||||
| 34 | 866463A02 | COVER ASSEMBLY, Back | 1 | (SEACORE)(Use With Magnum and Hi-Performance Transom) | |||||
| 35 | 12708 | SEAL | 1 | 17 | |||||
| 36 | 865711A02 | DETENT ASSEMBLY | 1 | 14497A2 | |||||
| 37 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 2 | |||
| 38 | 10-87158 | SCREW, (.375-16 x 1.875) | 1 | ||||||
| 39 | 12711 | SHAFT | 1 | ||||||
| 40 | 15-888927028 | SHIM, (.028) | 1 | ||||||
| 40 | 15-888927029 | SHIM, (.029) | 1 | ||||||
| 40 | 15-888927030 | SHIM, (.030) | 1 | ||||||
| 40 | 15-888927031 | SHIM, (.031) | 1 | ||||||
| 40 | 15-888927032 | SHIM, (.032) | 1 | ||||||
| 40 | 15-888927033 | SHIM, (.033) | 1 | ||||||
| 40 | 15-888927034 | SHIM, (.034) | 1 | ||||||
| 40 | 15-888927035 | SHIM, (.035) | 1 | ||||||
| 40 | 15-888927036 | SHIM, (.036) | 1 | ||||||
| 40 | 15-888927037 | SHIM, (.037) | 1 | ||||||
| 40 | 15-888927038 | SHIM, (.038) | 1 | ||||||
| 40 | 15-888927039 | SHIM, (.039) | 1 | ||||||
| 40 | 15-888927040 | SHIM, (.040) | 1 | ||||||
| 41 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 3 | SEACORE | |||||
| 42 | 842783T01 | COVER ASSEMBLY | 1 | ||||||
| 43 | 10-87158 | SCREW, (.375-16 x 1.875) | 1 | ||||||
| 44 | 16-57932 | STUD, (.375-16/.375-24 x 1.750) | 2 | ||||||
| 45 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 2 | ||||||
| 46 | 11-82671013 | NUT, (.375-24) | 2 | 11-34932 | |||||
| - | 26-16709A2 | SEAL KIT, Driveshaft Housing | 1 |
