Bravo XR Sportmaster - Serial 0M906878 and Up - Gimbal Housing (Integrated Transom)

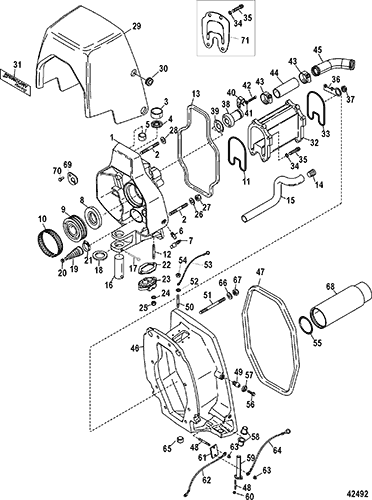

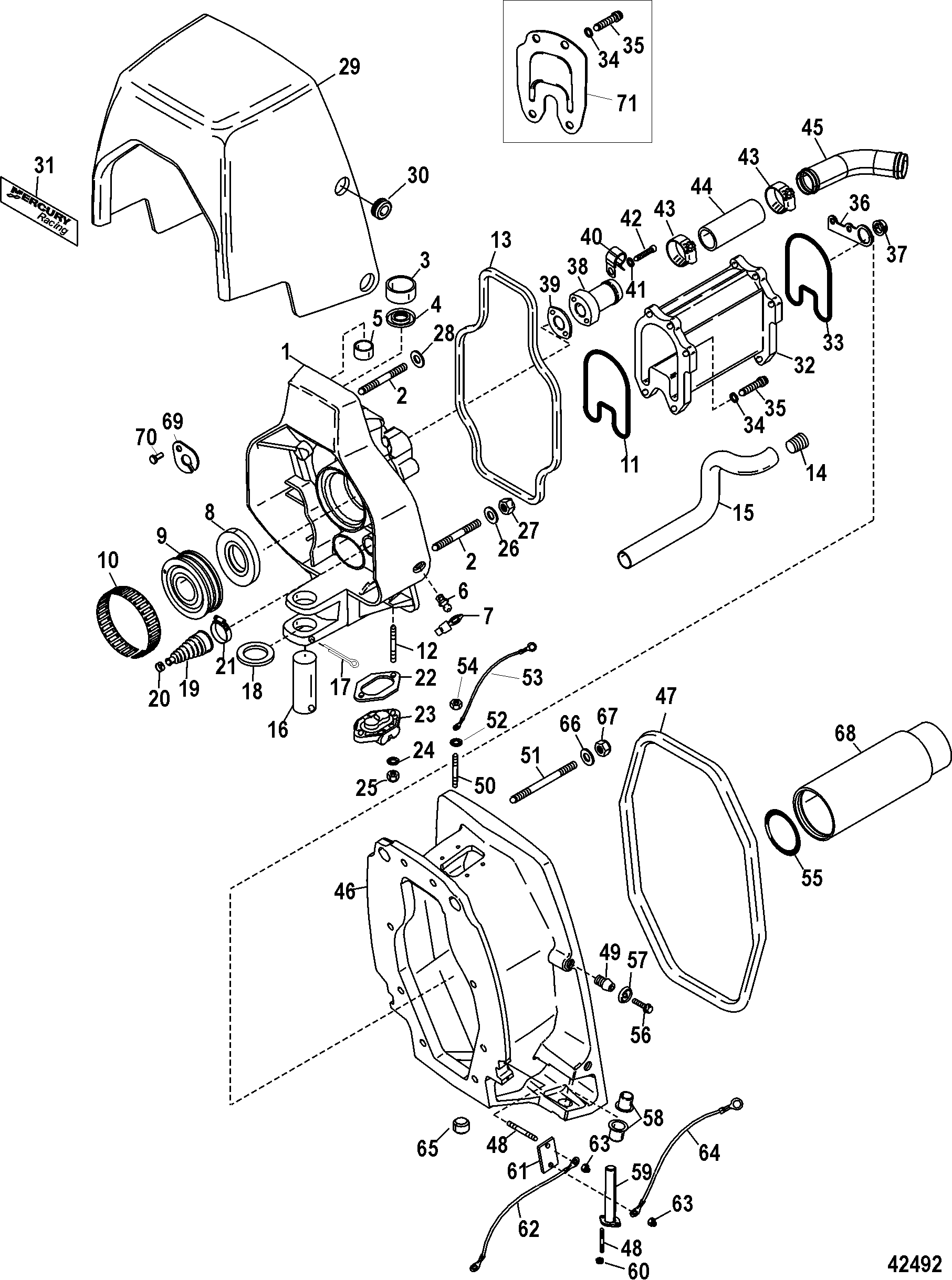

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Bell Housing (Integrated and Hi Performance Transom)
- Continuity Kit
- Driveshaft Housing and Drive Gears
- Gear Housing (Bravo I XR)
- Gear Housing (Bravo I XR-SportMaster)(0M955633 and Below)
- Gear Housing (Bravo I XR-SportMaster)(0M955634 and Up)
- Gear Housing (Bravo III)
- Gear Lube Monitor Components
- Gimbal Housing
- Gimbal Housing (Integrated Transom)
- Gimbal Housing Cover
- Gimbal Ring (Integrated Transom)
- Gimbal Ring and Steering Lever
- Mercathode Kit
- Mercathode Kit (Integrated Transom)
- Power Steering Actuator (Integrated Transom)
- Power Steering Actuator (Magnum And Hi-Performance Transom)
- Special Tools (Driveshaft Housing)
- Special Tools (Gear Housing Bravo I)
- Special Tools (Transom)
- Sterndrive Unit Chart, Bravo And Bravo I XR (SportMaster)
- Sterndrive Unit Chart, Bravo I-III XR (Integrated Transom)
- Sterndrive Unit Chart, Bravo I-III XR (Standard Transom)
- Transom Assembly Chart
- Transom Plate and Shift Cable
- Trim Cylinder Components
- Trim Cylinders and Hydraulic Hoses (Standard Transoms)
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Universal Joint and Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0062528 | GIMBAL HOUSING ASSEMBLY | 1 | 43881A18 | |||||
| 2 | 16-57984 | STUD, (.437-14/.437-20 x 2.380) | 8 | ||||||
| 3 | 23-983571 | BUSHING, Lower | 1 | ||||||
| 4 | 26-8M2005029 | SEAL, Oil | 1 | 26-416071 | |||||
| 5 | 23-98356 | BUSHING, Upper | 1 | ||||||
| 6 | 22-74036 | FITTING, Grease | 1 | ||||||
| 7 | 19-77633Q | LUBRICAP | 1 | ||||||
| 8 | 26-88416 | SEAL, Oil | 1 | ||||||
| 9 | 879194A01 | BEARING ASSEMBLY | 1 | 30-862540A3 | |||||
| 10 | 61075 | TOLERANCE RING | 1 | ||||||
| 11 | 41802 | SEAL, Rubber | 1 | ||||||
| 12 | 16-56766 | STUD, (.250-20/.250-28 x 1.380) | 2 | ||||||
| 13 | 43713 | SEAL | 1 | ||||||
| 14 | 41674T | INSERT | 1 | 41674 | |||||
| 15 | 32-43437 | HOSE | 1 | ||||||
| 16 | 17-8M0073409 | SWIVEL PIN, Lower | 1 | 17-99353 | |||||
| 17 | 18-54929 | COTTER PIN | 1 | ||||||
| 18 | 12-32518 | WASHER | 1 | ||||||
| 19 | 74639A2 | BELLOWS ASSEMBLY, Shift Cable | 1 | ||||||
| 20 | 54-866507 | 676-9-73115 | 700-21790 | CLAMP | 1 | 54-38863 | |||
| 21 | 54-815504320 | CLAMP, Worm Gear | 1 | ||||||
| 22 | 27-988231 | GASKET | 1 | ||||||
| 23 | 98825A13 | COVER KIT | 1 | ||||||
| 24 | 13-78968 | LOCKWASHER, Internal (.250) | 2 | ||||||
| 25 | 11-8267119 | NUT, (.250-28) | 2 | ||||||
| 26 | 12-35935 | WASHER, (.435 x .875 x .105) Stainless Steel | 8 | ||||||
| 27 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 8 | 11-82671015 | ||||
| 28 | 12-840848 | WASHER | 2 | ||||||
| 29 | 8M0056176 | COWL ASSEMBLY, Transom | 1 | 840493T1 | |||||
| 30 | 25-840840 | GROMMET | 4 | ||||||
| 31 | 37-840359 | DECAL, Mercury Racing | 1 | ||||||
| 32 | 840693A2 | PLATE KIT, Exhaust Extension | 1 | SN# 0M962899 & Below | |||||
| 33 | 41802 | SEAL, Rubber | 1 | SN# 0M962899 & Below | |||||
| 34 | 13-41471 | LOCKWASHER, (.375) | A/R | ||||||
| 35 | 10-58640 | SCREW, (.375-16 x 1.25) | A/R | ||||||
| 36 | 840842 | BRACKET | 1 | ||||||
| 37 | 23-840847 | BUSHING, Snap | 1 | ||||||
| 38 | 22-840688 | CONNECTOR | 1 | ||||||
| 39 | 27-441081 | GASKET | 1 | ||||||
| 40 | 54-642351 | J CLIP | 1 | ||||||
| 41 | 13-78968 | LOCKWASHER, Internal (.250) | 2 | ||||||
| 42 | 10-816742 | SCREW, (.250-20 x 1.250) | 2 | ||||||
| 43 | 54-180766 | CLAMP, Worm Gear | 2 | ||||||
| 44 | 32-8M0062665 | HOSE, (48.00 Inches Bulk) (5.00 Inches) | 1 | 32-5346170 | |||||
| 45 | 22-840831 | TUBE, (60 Degree) | 1 | ||||||
| 46 | 840496A3 | BOX ASSEMBLY, Transom | 1 | ||||||
| 47 | 437131 | SEAL | 1 | ||||||
| 48 | 16-846345 | STUD, (#10-32 x .750) | 8 | ||||||
| 49 | 16-8M0034447 | STUD | 4 | 16-840884 | |||||
| 50 | 16-728091 | STUD, (.250-20/.250-28 x 1.620) | 3 | 16-72809 | |||||
| 50 | 16-843125 | STUD, (.250-20 x 2.02), Bonding Strap | 1 | ||||||
| 51 | 16-56296 | STUD, (.437-20 x 4.750) | 4 | ||||||
| 51 | 16-818834 | STUD, (.437-20 x 4.250) | 4 | ||||||
| 52 | 13-93702 | WASHER, (.250 External Star), Bonding Strap Stud | 1 | ||||||
| 53 | 88238A20 | CABLE ASSEMBLY, Ground, Ground Strap (6.750 Inches) | 1 | ||||||
| 54 | 11-8267098 | NUT, (.250-20) Stainless Steel, Bonding Strap Stud | 1 | ||||||
| 55 | 25-94926 | O-RING, (2.489 x .070) | 1 | ||||||
| 56 | 10-901921 | SCREW, (.250-20 x .750) Stainless Steel With Nylon Patch | 4 | ||||||
| 57 | 12-840841 | WASHER | 4 | ||||||
| 58 | 23-8159501 | BUSHING | 4 | ||||||
| 59 | 840739 | PIN | 2 | ||||||
| 60 | 11-8267096 | NUT, (#10-32) Stainless Steel | 4 | ||||||
| 61 | 840801 | PLATE | 2 | ||||||
| 62 | 88238A7 | CABLE ASSEMBLY, Ground Strap (3.160 Inches) | 2 | ||||||
| 63 | 11-8267096 | NUT, (#10-32) Stainless Steel | 4 | ||||||
| 64 | 88238A20 | CABLE ASSEMBLY, Ground, Ground Strap (6.750 Inches) | 1 | ||||||
| 65 | 22-35052 | PLUG, Pipe (.250-18 x .375), Pipe | 1 | ||||||
| 66 | 12-34567 | WASHER | 8 | ||||||
| 67 | 11-82670815 | NUT, (.437-20) | 8 | ||||||
| 68 | 840689T | TUBE, Extension | 1 | ||||||
| 69 | 54-12078 | CLAMP | 1 | ||||||
| 70 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel | 1 | ||||||
| 71 | 861776A2 | PLATE KIT | 1 | SN# 0M962900 & Up |
