Bravo XR Sportmaster - Serial 0M906878 and Up - Transom Plate and Shift Cable

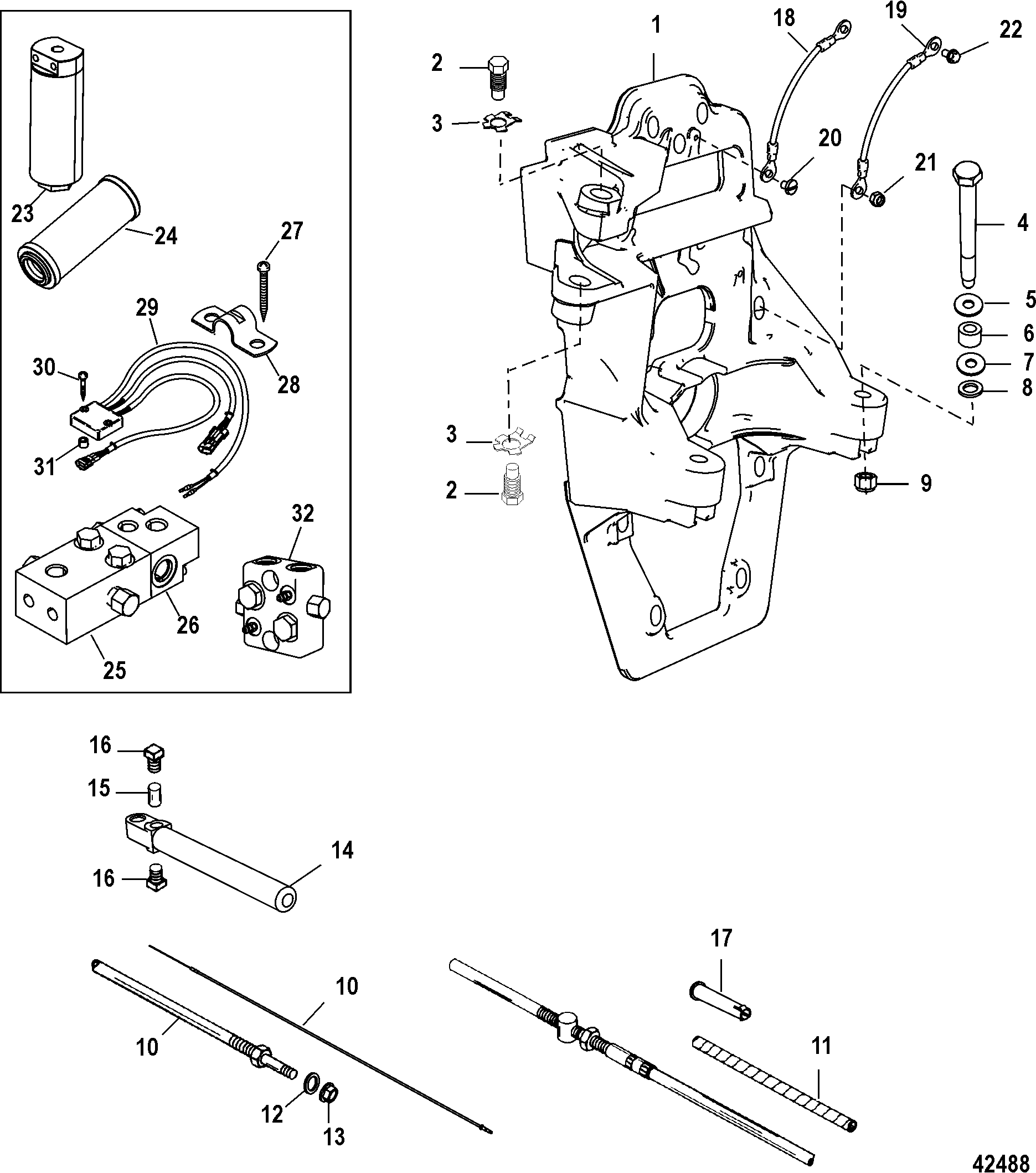

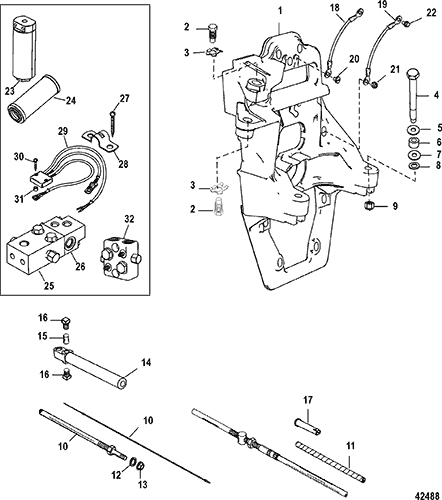

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Bell Housing (Integrated and Hi Performance Transom)
- Continuity Kit
- Driveshaft Housing and Drive Gears
- Gear Housing (Bravo I XR)
- Gear Housing (Bravo I XR-SportMaster)(0M955633 and Below)
- Gear Housing (Bravo I XR-SportMaster)(0M955634 and Up)
- Gear Housing (Bravo III)
- Gear Lube Monitor Components
- Gimbal Housing
- Gimbal Housing (Integrated Transom)
- Gimbal Housing Cover
- Gimbal Ring (Integrated Transom)
- Gimbal Ring and Steering Lever
- Mercathode Kit
- Mercathode Kit (Integrated Transom)
- Power Steering Actuator (Integrated Transom)
- Power Steering Actuator (Magnum And Hi-Performance Transom)
- Special Tools (Driveshaft Housing)
- Special Tools (Gear Housing Bravo I)
- Special Tools (Transom)
- Sterndrive Unit Chart, Bravo And Bravo I XR (SportMaster)
- Sterndrive Unit Chart, Bravo I-III XR (Integrated Transom)
- Sterndrive Unit Chart, Bravo I-III XR (Standard Transom)
- Transom Assembly Chart
- Transom Plate and Shift Cable
- Trim Cylinder Components
- Trim Cylinders and Hydraulic Hoses (Standard Transoms)
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Universal Joint and Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 44117A8 | PLATE ASSEMBLY, Transom | 1 | ||||||
| 1 | 44117A12 | PLATE ASSEMBLY, Transom, X-Haust Compatable | 1 | - Integrated Transom SN# 0M962900 & Up | |||||
| 2 | 10-42253 | BOLT, Pivot | 2 | ||||||
| 3 | 14-42254 | WASHER, Tab | 2 | ||||||
| 4 | 10-97934 | SCREW, (.500-20 x 5.370) Special | 2 | ||||||
| 5 | 12-35777 | WASHER, (.5156 x 1.375 x .125) Aluminium | 2 | ||||||
| 6 | 23-99299 | SPACER, (.520 x .870 x .630) | 2 | ||||||
| 7 | 12-32834 | WASHER, (.9375 x 1.750 x .172) | 2 | ||||||
| 8 | 12-54012 | WASHER, (.530 x .870 x .105) Stainless Steel | AR | ||||||
| 9 | 11-863332 | NUT, (.500-20) Aluminium | 2 | ||||||
| 10 | 865437A02 | CABLE KIT, Shift | 1 | 815471A6 | |||||
| 11 | 90412 | WRAPPING, (1.16 Feet Bulk), Cut As Required | 1 | ||||||
| 12 | 12-815472 | WASHER, Sealing | 1 | ||||||
| 13 | 11-49910 | NUT, (.375-24) | 1 | ||||||
| - | 43433A01 | GUIDE KIT | 1 | ||||||
| 14 | 43433 | GUIDE | 1 | ||||||
| 15 | 43436 | ANCHOR | 1 | ||||||
| 16 | 10-20518 | SET SCREW, (#8-32) | 2 | ||||||
| 17 | 861632T | INSERT | 1 | 861632 | |||||
| 18 | NSS | NOT SOLD SEPARATE, Grounding Cable Assembly | 1 | This Part is not sold separately 23 | |||||
| 19 | NSS | NOT SOLD SEPARATE, Grounding Cable Assembly | 1 | This Part is not sold separately 23 | |||||
| 20 | 10-24231 | SCREW, (#10-32 x .250) | 1 | ||||||
| 21 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 1 | 11-82671015 | ||||
| 22 | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel | 1 | ||||||
| 23 | 35-841067T1 | FILTER ASSEMBLY, Power Steering | 1 | - Integrated Transom | |||||
| 24 | 35-841076 | ELEMENT, Power Steering Filter | 1 | - Integrated Transom | |||||
| 25 | 840690T | VALVE BLOCK ASSEMBLY | 1 | - Intergrated Transom | |||||
| 26 | 8M8021152 | BLOCK ASSEMBLY, Adaptor - With Check Valves | 1 | - Intergrated Transom SN# 0M962899 & Below | |||||
| 27 | 10-57807 | SCREW, (#10-16 x .750) Stainless Steel | 2 | - Integrated Transom | |||||
| 28 | 54-828370 | BRACKET | 1 | - Integrated Transom | |||||
| 29 | 884359T1 | MODULE ASSEMBLY, Gauge Driver | 1 | - Integrated Transom | |||||
| 30 | 10-818224 | SCREW, (#12-11 x 1.750) | 2 | - Integrated Transom | |||||
| 31 | 23-849083 | SPACER | 2 | - Integrated Transom | |||||
| 32 | 844399T01 | VALVE BLOCK ASSEMBLY | 1 | SN# 0M962900 & Up |
