TR-TRS - Serial 4794900 and Up - Bell Housing

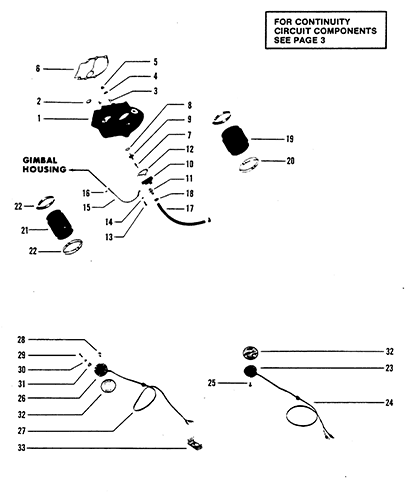

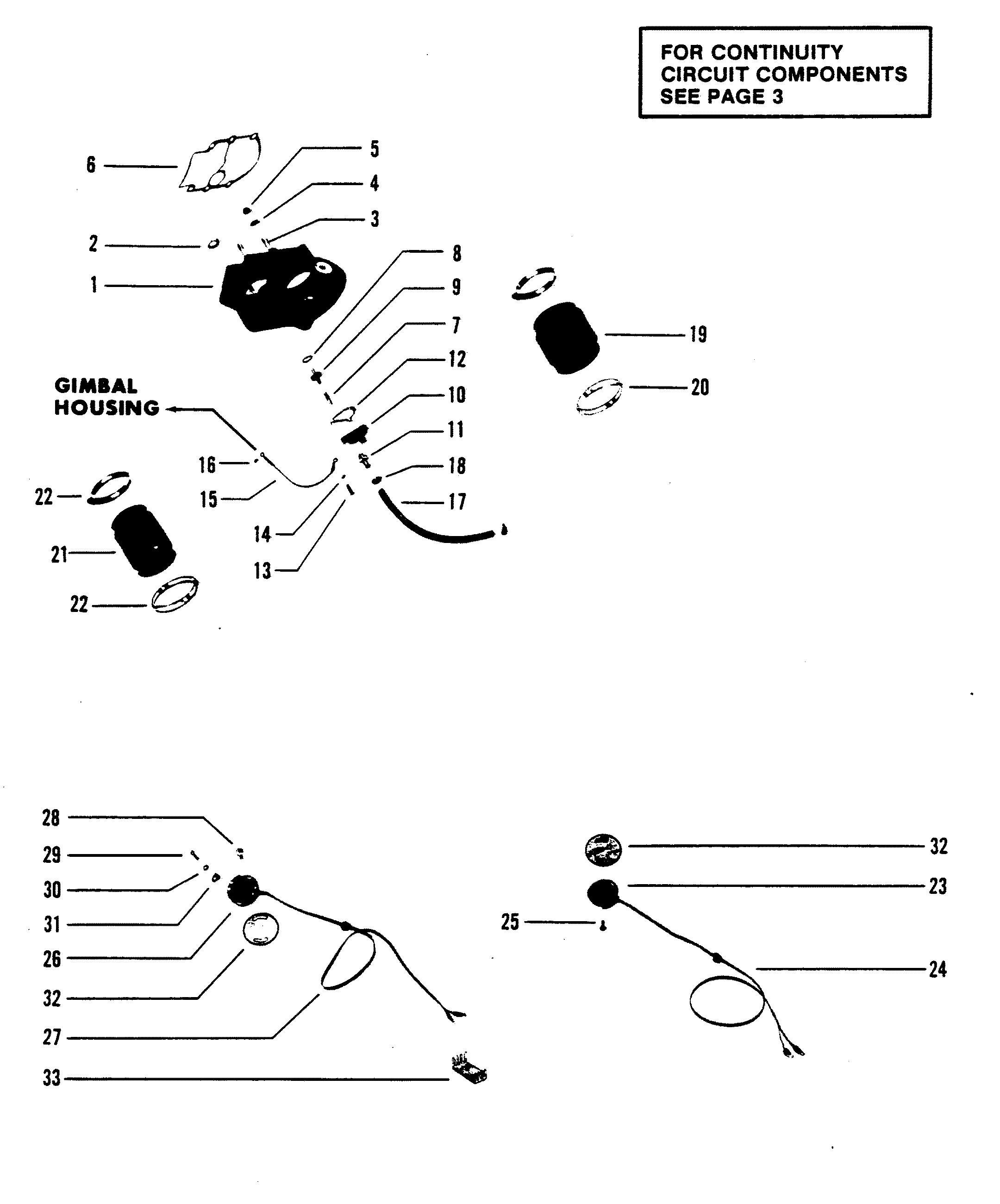

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Control Panel (Prestolite Pump Use With ERL)
- Drive Shaft Housing And Gear Assembly
- Gear Housing (TR)
- Gear Housing (TRS)
- Gimbal Housing
- Gimbal Ring And Steering Lever
- Hydraulic Pump (Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump (Plastic Reservoir)
- Hydraulic Pump (Prestolite Pump)
- Hydraulic Pump And Bracket (Oildyne Pump Metal Reservoir)
- Hydraulic Pump And Bracket (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump And Bracket (Prestolite Pump Use With Erl)
- Hydraulic Pump And Bracket (Prestolite Pump)
- Miscellaneous Parts-Accessories
- Power Steering Components
- Transom Plate
- Trim Cylinder And Hoses (Internal Lines)
- Trim Cylinder Repair Kits (External Lines)
- Trim Cylinder Repair Kits (Internal Lines)
- Trim Cylinders And Hoses (External Lines)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 62814A3 | BELL HOUSING ASSEMBLY | 1 | ||||||
| 2 | 26-48443 | OIL SEAL, BELL HOUSING | 1 | ||||||
| 3 | 16-54011 | STUD, BELL HOUSING (3-1/4") | 6 | This Part is No Longer Available | |||||
| 4 | 12-54012 | WASHER, BELL HOUSING STUD | 6 | ||||||
| 5 | 11-35000 | NUT, BELL HOUSING STUD | 6 | ||||||
| 6 | 27-54014Q1 | GASKET, BELL HOUSING | 1 | 27-54014A1 | |||||
| 7 | 24-48442 | SPRING, TENSION - OIL RELEASE CHECK VALVE | 1 | ||||||
| 8 | 25-48452 | QUAD RING, OIL RELEASE CHECK VALVE | 1 | ||||||
| 9 | 20-48219 | CHECK VALVE, OIL RELEASE | 1 | ||||||
| 10 | 54170A1 | COVER ASSEMBLY, CHECK VALVE GUIDE | 1 | This Part is No Longer Available | |||||
| 11 | 22-34982 | CONNECTOR, CHECK VALVE GUIDE COVER | 1 | ||||||
| 12 | 27-540211 | GASKET, CHECK VALVE GUIDE COVER | 1 | 27-54021 | This Part is No Longer Available | ||||
| 13 | 10-36137 | SCREW, CHECK VALVE GUIDE COVER (1") | 3 | ||||||
| 14 | 13-26992 | LOCKWASHER, CHECK VALVE GUIDE COVER SCREW | 3 | ||||||
| 15 | 57292 | JUMPER CABLE, GIMBAL HOUSING TO COVER | 1 | This Part is No Longer Available | |||||
| 16 | 10-47225 | SCERW, JUMPER CABLE | 1 | This Part is No Longer Available | |||||
| 17 | 32-34423 | HOSE, OIL - BELL HOUSING TO GIMBAL HOUSING (12-5/8") | 1 | ||||||
| 18 | 54-815504104 | CLAMP, HOSE | 2 | 54-54428 | |||||
| 19 | 60932A4 | BELLOWS ASSEMBLY, UNIVERSAL JOINT | 1 | ||||||
| -- | 54-86049 | 676-9-73116 | 700-89440 | CLIP, GROUNDING | 2 | ||||
| 20 | 54-815504372 | 700-01100 | CLAMP, BELLOWS | 2 | 54-31765 | ||||
| 21 | 78632A1 | TUBE, EXHAUST | 1 | ||||||
| 22 | 54-815504360 | CLAMP, EXHAUST BELLOWS | 2 | 54-38889 | |||||
| 23 | 805320A2 | SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE) | 1 | 96863A10 | |||||
| 24 | 84-19279 | HARNESS, TRIM LIMIT SWITCH (PORT SIDE) | 1 | 84-63405 | This Part is No Longer Available | ||||
| 25 | 10-63400 | SCEW, HARNESS ATTACHING (5/23") (PORT SIDE) | 2 | No longer made, limited availability | |||||
| 26 | 64947 | SENDER, DUMMY (STARBOARD SIDE) | 1 | This is a plastic dummy sender only, it does not do anything. | |||||
| 27 | 84-64987 | HARNESS, DUMMY SENDER (STARBOARD SIDE) | 1 | This Part is No Longer Available | |||||
| 28 | 19-96069 | PLUG, HARNESS ATTACHING (STARBOARD SIDE) | 2 | This Part is No Longer Available | |||||
| 29 | 10-37978 | SCREW, TRIM SENDER AND SWITCH TO GIMBAL RING (3/4") | 4 | ||||||
| 30 | 13-26996 | LOCKWASHER, TRIM SENDER AND SWITCH SCREW | 4 | ||||||
| 31 | 57008 | RETAINER, TRIM SENDER AND SWITCH SCREW | 4 | ||||||
| 32 | 85-63990 | INSULATOR, SWITCH AND SENDER | 2 | ||||||
| 33 | 79146 | RETAINER, CONNECTOR - TRIM SWITCH LEADS | 1 | ||||||
| - | 805320A2 | SINGLE STATION SENDER KIT (OPTIONAL) | 1 | 96863A11 | |||||
| - | 805130A8 | DUAL STATION SENDER KIT (OPTIONAL) | 1 | ||||||
| - | 42385A7 | GIMBAL RING KIT | - |
