TR-TRS - Serial 4794900 and Up - Gear Housing (TR)

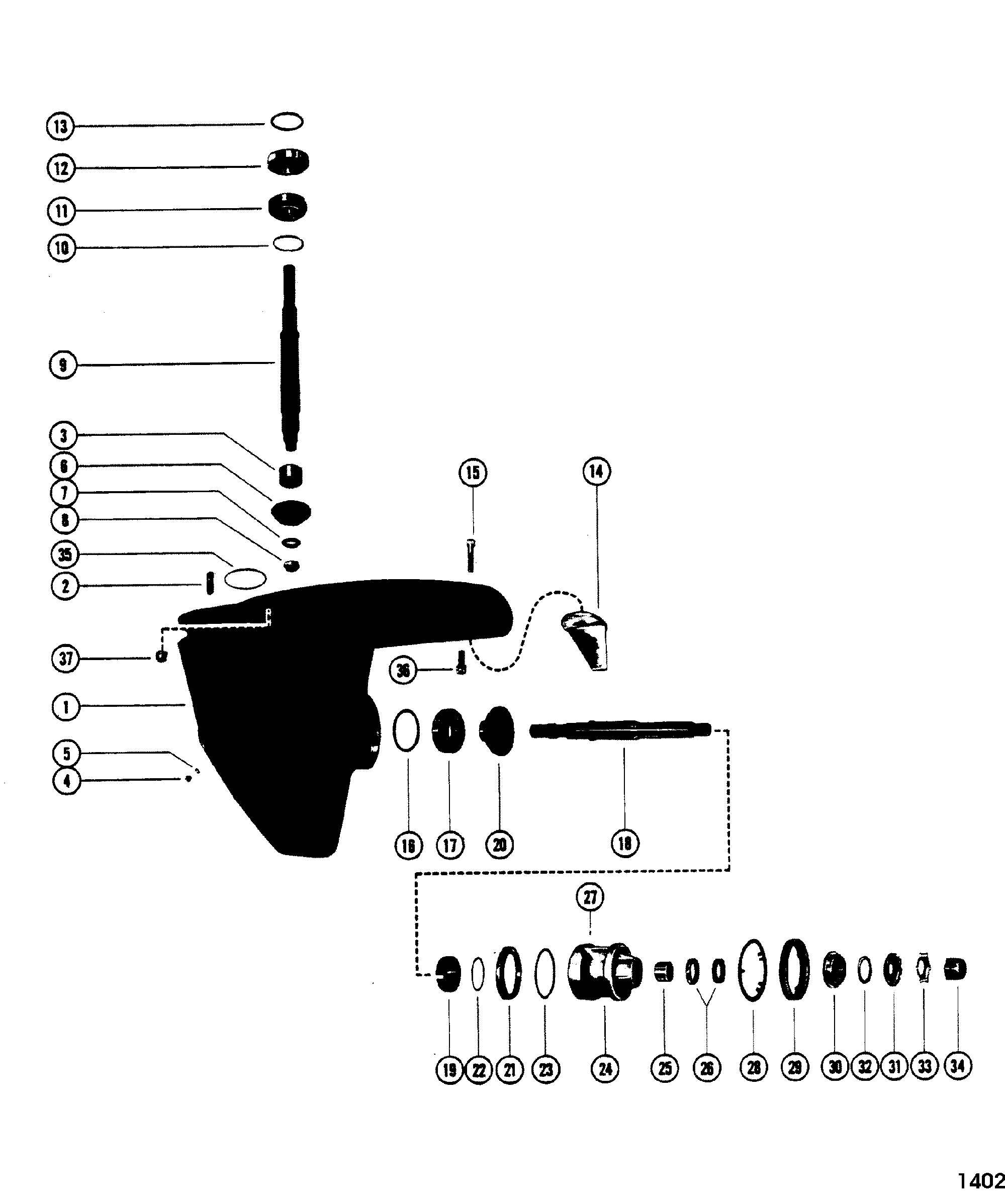

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Control Panel (Prestolite Pump Use With ERL)
- Drive Shaft Housing And Gear Assembly
- Gear Housing (TR)
- Gear Housing (TRS)
- Gimbal Housing
- Gimbal Ring And Steering Lever
- Hydraulic Pump (Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump (Plastic Reservoir)
- Hydraulic Pump (Prestolite Pump)
- Hydraulic Pump And Bracket (Oildyne Pump Metal Reservoir)
- Hydraulic Pump And Bracket (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump And Bracket (Prestolite Pump Use With Erl)
- Hydraulic Pump And Bracket (Prestolite Pump)
- Miscellaneous Parts-Accessories
- Power Steering Components
- Transom Plate
- Trim Cylinder And Hoses (Internal Lines)
- Trim Cylinder Repair Kits (External Lines)
- Trim Cylinder Repair Kits (Internal Lines)
- Trim Cylinders And Hoses (External Lines)
| Note: OVERALL DRIVE RATIO WILL BE 1.5:1 USING THE 17/17 HEAVY DUTY GEAR SET ON TR DRIVES | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| -- | 1641-4855A13 | GEAR HSG ASS'Y, COMPLETE (LEFT HAND ROTATION) | 1 | This Part is No Longer Available | |||||
| -- | 1641-4855A14 | GEAR HSG ASS'Y, COMPLETE (RIGHT HAND ROTATION) | 1 | This Part is No Longer Available | |||||
| 1 | 1641-4855A6 | GEAR HOUSING ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 2 | 16-57982 | STUD, GEAR HOUSING (1-7/8") | 1 | ||||||
| 3 | 31-35246 | ROLLER BRG, DRIVE SHAFT | 1 | ||||||
| 4 | 10-79953Q04 | SCREW, VENT - GEAR HOUSING | 1 | 10-79953 | |||||
| 5 | 12-191833 | WASHER, SEAL - VENT SCREW | 1 | 12-20260 | |||||
| 6 | 43-62880T1 | PINION GEAR (16 TEETH) | 1 | 43-62880T | |||||
| 7 | 12-54048 | WASHER, PINION GEAR TO DRIVE SHAFT | 1 | ||||||
| 8 | 11-55819 | NUT, PINION GEAR TO DRIVE SHAFT | 1 | ||||||
| 9 | 45-62783T | DRIVE SHAFT | 1 | This Part is No Longer Available | |||||
| 10 | 15-26320A1 | SHIM ASS'Y, ROLLER BEARING TO GEAR HOUSING | AR | This Part is No Longer Available 22 | |||||
| 11 | 31-48941A1 | TAPERED ROLLER BEARING ASS'Y, DRIVE SHAFT | 1 | This Part is No Longer Available | |||||
| 12 | 31-35990A1 | TAPERED ROLLER BEARING ASS'Y, DRIVE SHAFT | 1 | ||||||
| 13 | 25-54030 | O-RING, GEAR HOUSING | 1 | ||||||
| 14 | 31640Q4 | TIRM TAB ASSEMBLY, GEAR HOUSING | 1 | 31640A1 | |||||
| 15 | 10-41350 | SCREW, TRIM TAB TO GEAR HOUSING (2-1/2") | 1 | ||||||
| 16 | 15-55499A1 | SHIM ASS'Y, ROLLER BEARING (LEFT HAND ROTATION) | AR | 22 | |||||
| 17 | 31-54038A1 | TAPERED ROLLER BEARING ASS'Y (LEFT HAND ROTATION) | 1 | ||||||
| 18 | 44-62820T1 | PROPELLER SHAFT (LEFT HAND ROTATION) | 1 | 44-62820 | |||||
| 19 | 31-54036A1 | TAPERED ROLLER BEARING ASS'Y (LEFT HAND ROTATION) | 1 | ||||||
| 16 | 15-47397A1 | 700-23220 | SHIM ASS'Y, ROLLER BEARING (RIGHT HAND ROTATION) | AR | 22 | ||||
| 17 | 31-62801A1 | TAPERED ROLLER BEARING ASS'Y (RIGHT HAND ROTATION) | 1 | This Part is No Longer Available | |||||
| 18 | 44-62792 | PROPELLER SHAFT (RIGHT HAND ROTATION) | 1 | 44-62792T | This Part is No Longer Available | ||||
| 19 | 31-62799A1 | TAPERED ROLLER BEARING ASS'Y (RIGHT HAND ROTATION) | 1 | ||||||
| 20 | 43-62881T1 | DRIVE GEAR (24 TEETH) | 1 | 43-62881T | |||||
| 21 | 66103A1 | THRUST RING ASSEMLBY | 1 | This Part is No Longer Available | |||||
| 22 | 23-66093T | LOAD RING, THURST RING | 1 | 23-66093 | |||||
| 23 | 25-34821 | O-RING, BEARING CARRIER | 1 | ||||||
| 24 | 863913A04 | BEARING CARRIER ASSEMBLY | 1 | 62813A4 | |||||
| 25 | 31-54042T | ROLLER BEARING, BEARING CARRIER | 1 | ||||||
| 26 | 26-821092 | OIL SEAL, BEARING CARRIER | 2 | 26-54926 | |||||
| 27 | 28-30281 | KEY, LOCATING - BEARING CARRIER | 1 | ||||||
| 28 | 14-54167 | TAB WASHER, GEAR HOUSING COVER | 1 | ||||||
| 29 | 54163 | COVER, GEAR HOUSING | 1 | ||||||
| 30 | 55074T | THRUST HUB | 1 | ||||||
| 31 | 12-55073A2 | WASHER ASSEMBLY, SPLINED - PROPELLER SHAFT | 1 | ||||||
| 32 | 12-55072 | THURST WASHER, BEARING CARRIER | 1 | ||||||
| 33 | 14-34817 | TAB WASHER, PROPELLER NUT | 1 | ||||||
| 34 | 11-82671127 | NUT, PROPELLER (1-1/4-7 THREAD) | 1 | 11-54034 | |||||
| 35 | 25-54029 | "O" RING, GEAR HOUSING | 1 | ||||||
| 36 | 10-47557 | SCREW, GEAR HOUSING (1-1/2") | 1 | This Part is No Longer Available No longer made, limited availability | |||||
| 37 | 11-34933 | 676-9-72004 | NUT, DRIVE SHAFT HOUSING STUD | 1 | |||||
