TR-TRS - Serial 4794900 and Up - Drive Shaft Housing And Gear Assembly

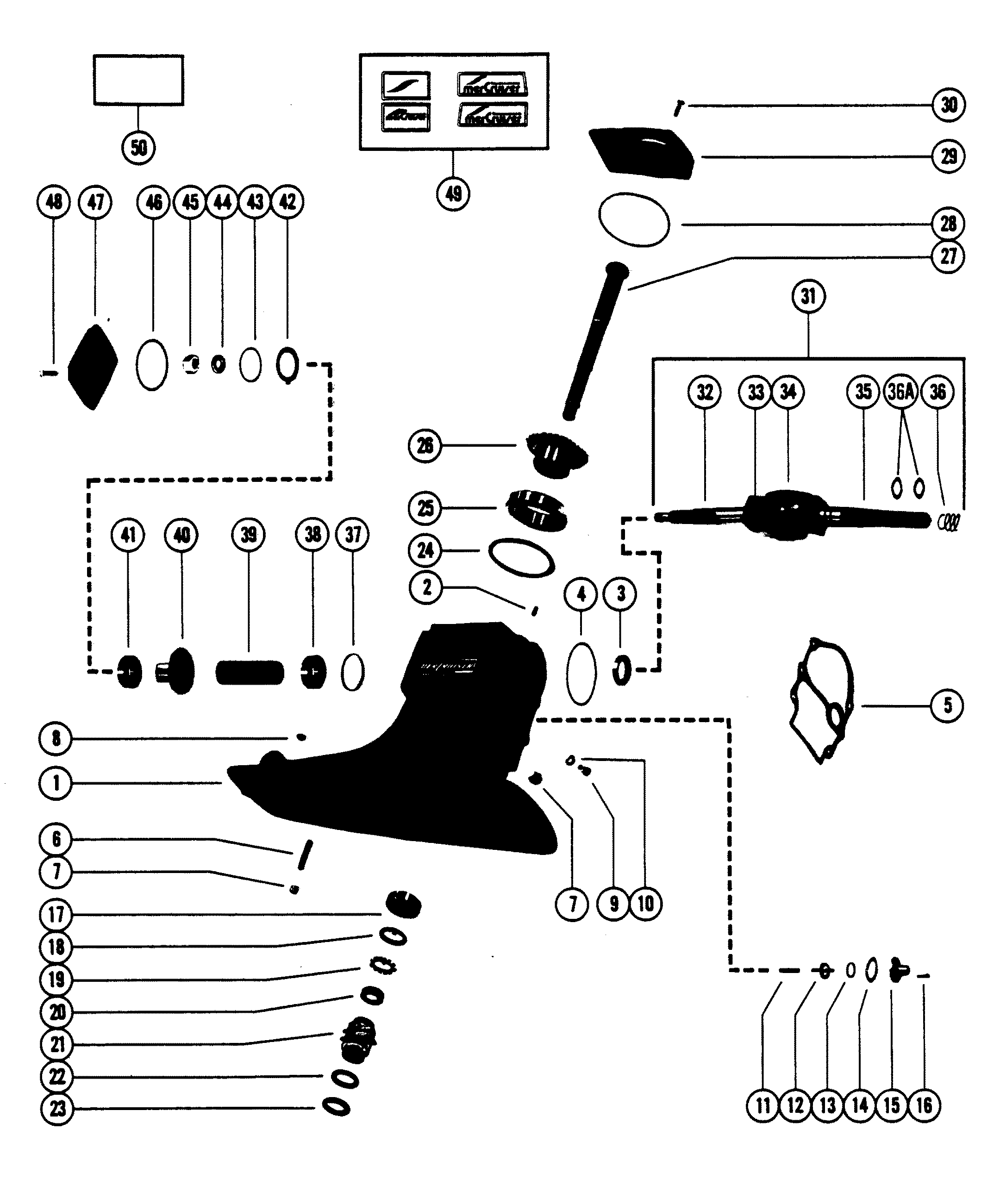

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Control Panel (Prestolite Pump Use With ERL)
- Drive Shaft Housing And Gear Assembly
- Gear Housing (TR)
- Gear Housing (TRS)
- Gimbal Housing
- Gimbal Ring And Steering Lever
- Hydraulic Pump (Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump (Plastic Reservoir)
- Hydraulic Pump (Prestolite Pump)
- Hydraulic Pump And Bracket (Oildyne Pump Metal Reservoir)
- Hydraulic Pump And Bracket (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump And Bracket (Prestolite Pump Use With Erl)
- Hydraulic Pump And Bracket (Prestolite Pump)
- Miscellaneous Parts-Accessories
- Power Steering Components
- Transom Plate
- Trim Cylinder And Hoses (Internal Lines)
- Trim Cylinder Repair Kits (External Lines)
- Trim Cylinder Repair Kits (Internal Lines)
- Trim Cylinders And Hoses (External Lines)
| Note: COMMERCIAL APPLICATION ONLY 17/17 TOOTH HEAVY DUTY GEAR SET ORDER [43 96928A1] | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1571-4847A5 | DRIVE SHAFT HOUSING ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 2 | 10-21934 | SCREW, SET - DRIVE SHAFT HOUSING | 1 | This Part is No Longer Available | |||||
| 3 | 26-62818 | OIL SEAL, DRIVE SHAFT HOUSING | 1 | ||||||
| 4 | 25-62817 | "O" RING, DRIVE SHAFT HOUSING | 1 | ||||||
| 5 | 27-54014Q1 | GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING | 1 | 27-54014A1 | |||||
| 6 | 16-54674 | STUD, DRIVE SHAFT HOUSING (2-1/4") | 6 | ||||||
| 7 | 11-34933 | 676-9-72004 | NUT, DRIVE SHAFT HOUSING STUD | 6 | |||||
| 8 | 19-47579 | 700-21890 | PLUG, TRIM TAB HOLE | 1 | |||||
| 9 | 10-79953Q04 | SCERW, VENT | 1 | 10-79953 | |||||
| 10 | 12-191833 | WASHER, SEALING | 1 | 12-20260 | |||||
| 11 | 24-48442 | SPRING, TENSION | 1 | ||||||
| 12 | 20-48219 | CHECK VALVE | 1 | ||||||
| 13 | 25-48452 | QUAD RING | 1 | ||||||
| 14 | 27-66925 | GASKET | 1 | This Part is No Longer Available | |||||
| 15 | 54168 | GUIDE | 1 | This Part is No Longer Available | |||||
| 16 | 10-22523 | SCREW | 3 | This Part is No Longer Available | |||||
| 17 | 31-38356A1 | TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT | 1 | ||||||
| 18 | 12-62795 | TAB WASHER, DRIVE SHAFT | 1 | This Part is No Longer Available | |||||
| 19 | 13-62788 | LOCKWASHER, DRIVE SHAFT | 1 | No longer made, limited availability | |||||
| 20 | 11-41527T | NUT, DRIVE SHAFT | 1 | No longer made, limited availability | |||||
| 21 | 62787A2 | COUPLING ASSEMBLY, OIL SLINGER | 1 | This Part is No Longer Available INCLUDED WITH GEAR HOUSING ASSEMBLIES | |||||
| 22 | 15-39899A1 | SHIM ASS'Y, ROLLER BEARING TO COUPLING | AR | INCLUDED WITH GEAR HOUSING ASSEMBLIES 22 | |||||
| 23 | 12-62797 | WASHER, ROLLER BEARING TO COUPLING | 1 | This Part is No Longer Available INCLUDED WITH GEAR HOUSING ASSEMBLIES | |||||
| 24 | 15-846353A1 | SHIM ASSEMBLY, TAPERED ROLLER BEARING | AR | 15-32061A1 | 22 | ||||
| 25 | 31-62799A1 | TAPERED ROLLER BEARING ASSEMBLY, DRIVE GEAR | 1 | ||||||
| 26 | 43-62879T1 | DRIVEN GEAR, DRIVE SHAFT (32 TEETH) | 1 | 43-62879T | (SEE NOTE #1) | ||||
| 27 | 45-62793T | DRIVE SHAFT | 1 | This Part is No Longer Available | |||||
| 28 | 25-67202 | "O" RING, TOP COVER | 1 | This Part is No Longer Available | |||||
| 29 | 62911T | COVER, TOP | 1 | This Part is No Longer Available | |||||
| 30 | 10-35047 | SCREW, COVER (1-1/4") | 4 | ||||||
| 31 | 62782A8 | UNIVERSAL JOINT (MERCURY MARINE TRANSMISSION) | 1 | This Part is No Longer Available | |||||
| 31 | 62782A4 | UNIVERSAL JOINT (BORG WARNER TRANSMISSION) | 1 | This Part is No Longer Available | |||||
| 32 | 62782A6 | YOKE, UNIVERSAL JOINT (GEAR END) | 1 | ||||||
| 33 | 75832T | CROSS AND BEARING ASSEMBLY | 2 | 75832A2 | |||||
| 34 | 393831 | SOCKET, CENTER - UNIVERSAL JOINT | 1 | 39383T | |||||
| 35 | 62784A1 | YOKE, UNIV. JOINT (COUPLING END) | 1 | MERUCRY MARINE TRANSMISSION | |||||
| 36 | 24-62727 | SPRING, UNIVERSAL JOINT | 1 | MERUCRY MARINE TRANSMISSION | |||||
| 35 | 57749A1 | YOKE, UNIVERSAL (COUPLING END) | 1 | BORG WARNER TRANSMISSION | |||||
| 36A | 25-25439 | O" RING, UNIVERSAL | 2 | BORG WARNER TRANSMISSION | |||||
| 37 | 15-62833A1 | SHIM ASSEMBLY, ROLLER BEARING TO HOUSING | AR | ||||||
| 38 | 31-38356A1 | TAPERED ROLLER BRG ASSEMBLY, UNIVERSAL JOINT | 1 | ||||||
| 39 | 23-62789 | SPACER, TAPERED ROLLER BEARING | 1 | This Part is No Longer Available | |||||
| 40 | 43-62878 | DRIVE GEAR (24 TEETH) | 1 | 43-62878T | (SEE NOTE #1) | ||||
| 41 | 31-54038A1 | TAPERED ROLLER BEARING ASSEMBLY, PINION GEAR | 1 | ||||||
| 42 | 12-62786 | TAB WASHER, TAPERED ROLLER BEARING | 1 | This Part is No Longer Available | |||||
| 43 | 15-55499A1 | SHIM ASSEMBLY, TAPERED ROLLER BEARING | AR | ||||||
| 44 | 12-48912 | WASHER, PINION GEAR TO UNIVERSAL JOINT | 1 | This Part is No Longer Available | |||||
| 45 | 11-82671327 | NUT, PINION GEAR TO UNIVERSAL JOINT | 1 | 11-34862 | |||||
| 46 | 25-39695 | "O" RING, REAR COVER | 1 | ||||||
| 47 | 62785T | COVER, REAR | 1 | This Part is No Longer Available | |||||
| 48 | 10-35047 | SCREW, REAR COVER (1-1/4") | 4 | ||||||
| 49 | 37-14489A90 | DECAL SET, DRIVE SHAFT HOUSING (330 TR/TRS/370) | 1 | 37-14489A87 | |||||
| 50 | 37-77386 | DECAL, "228" | 1 | This Part is No Longer Available | |||||
| 50 | 37-77412 | DECAL, "330" | 1 | This Part is No Longer Available | |||||
| 50 | 37-16416A87 | DECAL, "420" | 1 | This Part is No Longer Available | |||||
