TR-TRS - Serial 4794900 and Up - Hydraulic Pump (Metal Reservoir)

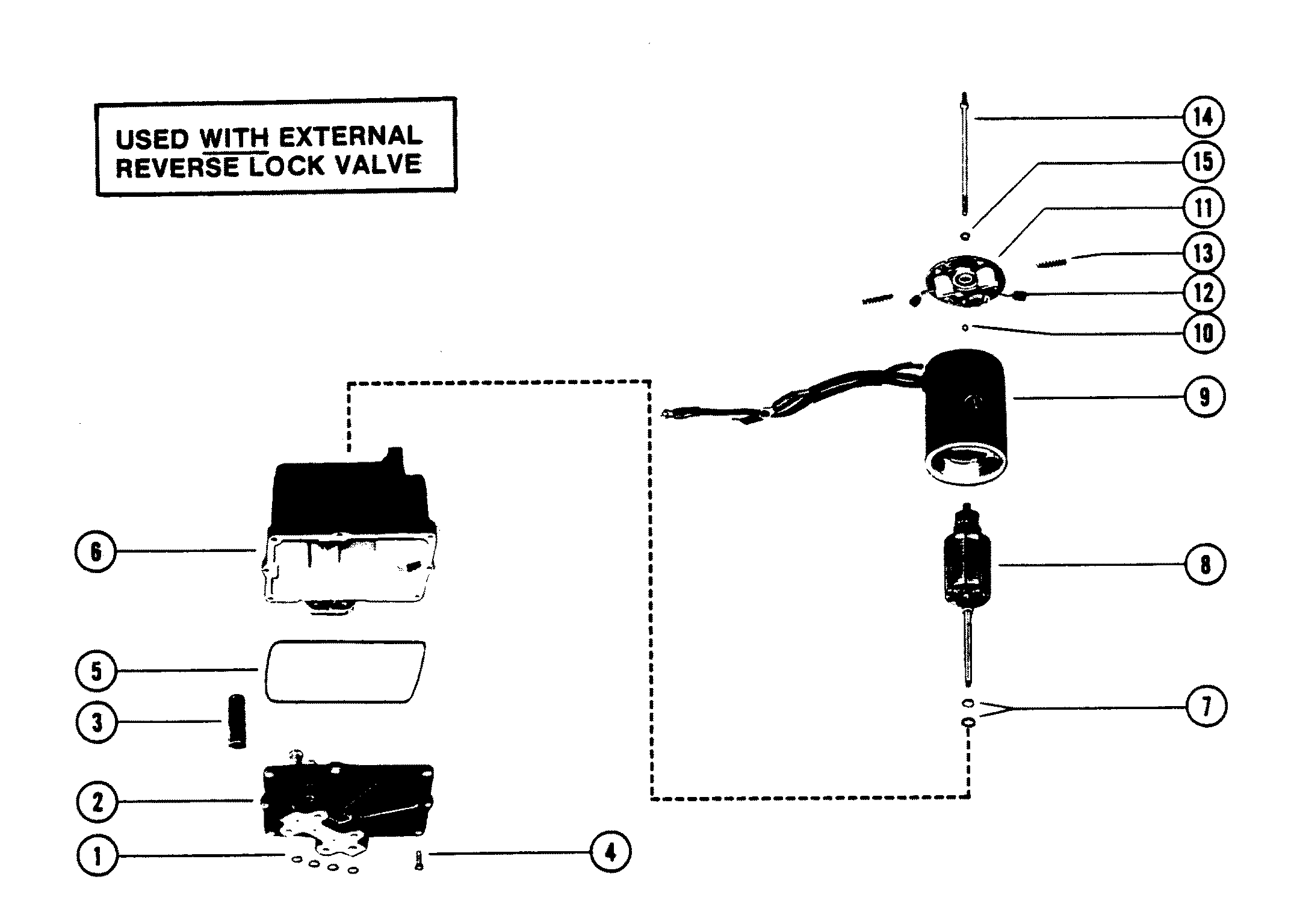

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Control Panel (Prestolite Pump Use With ERL)
- Drive Shaft Housing And Gear Assembly
- Gear Housing (TR)
- Gear Housing (TRS)
- Gimbal Housing
- Gimbal Ring And Steering Lever
- Hydraulic Pump (Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump (Plastic Reservoir)
- Hydraulic Pump (Prestolite Pump)
- Hydraulic Pump And Bracket (Oildyne Pump Metal Reservoir)
- Hydraulic Pump And Bracket (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump And Bracket (Prestolite Pump Use With Erl)
- Hydraulic Pump And Bracket (Prestolite Pump)
- Miscellaneous Parts-Accessories
- Power Steering Components
- Transom Plate
- Trim Cylinder And Hoses (Internal Lines)
- Trim Cylinder Repair Kits (External Lines)
- Trim Cylinder Repair Kits (Internal Lines)
- Trim Cylinders And Hoses (External Lines)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| -- | 93247A7 | HYDRAULIC PUMP ASSEMBLY, COMPLETE | 1 | 79271A4 | |||||
| 1 | 25-48171 | O-RING, HYDRAULIC PUMP | 4 | ||||||
| 2 | 392-7734 | VALVE BODY AND GEAR ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 3 | 392-2618 | CAN, VALVE BODY | 1 | This Part is No Longer Available | |||||
| 4 | 10-20411 | SCREW, VALVE BODY TO RESERVOIR (5/8") | 8 | no longer made, limited availability | |||||
| 5 | 392-7735 | SEAL, RESERVOIR TO VALVE BODY AND GEAR | 1 | 392-2937 | |||||
| 6 | 392-2939 | RESERVOIR ASSEMBLY (METAL) | 1 | This Part is No Longer Available | |||||
| 7 | 392-2623 | WASHER, THURST - ARMATURE | AR | This Part is No Longer Available 22 | |||||
| 8 | 392-2943 | ARMATURE, FIELD AND FRAME | 1 | ||||||
| 9 | 392-2942 | FIELD AND FRAME ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 10 | 392-2944 | BALL, COMMUTATOR END PLATE | 1 | no longer made, limited availability | |||||
| 11 | 392-2940 | PLATE ASSEMBLY, COMMUTATOR END | 1 | ||||||
| 12 | 392-8989 | BRUSH SET, COMMUTATOR END PLATE | 1 | 392-2941 | |||||
| 13 | 392-2529 | SPRING SET BRUSH TENSION | 1 | ||||||
| 14 | 392-2938 | BOLT SET, THRU - PLATE AND FRAME | 1 | This Part is No Longer Available | |||||
| 15 | 13-26996 | LOCKWASHER, THRU BOLT | 2 |
