TR-TRS - Serial 4794900 and Up - Trim Cylinder And Hoses (Internal Lines)

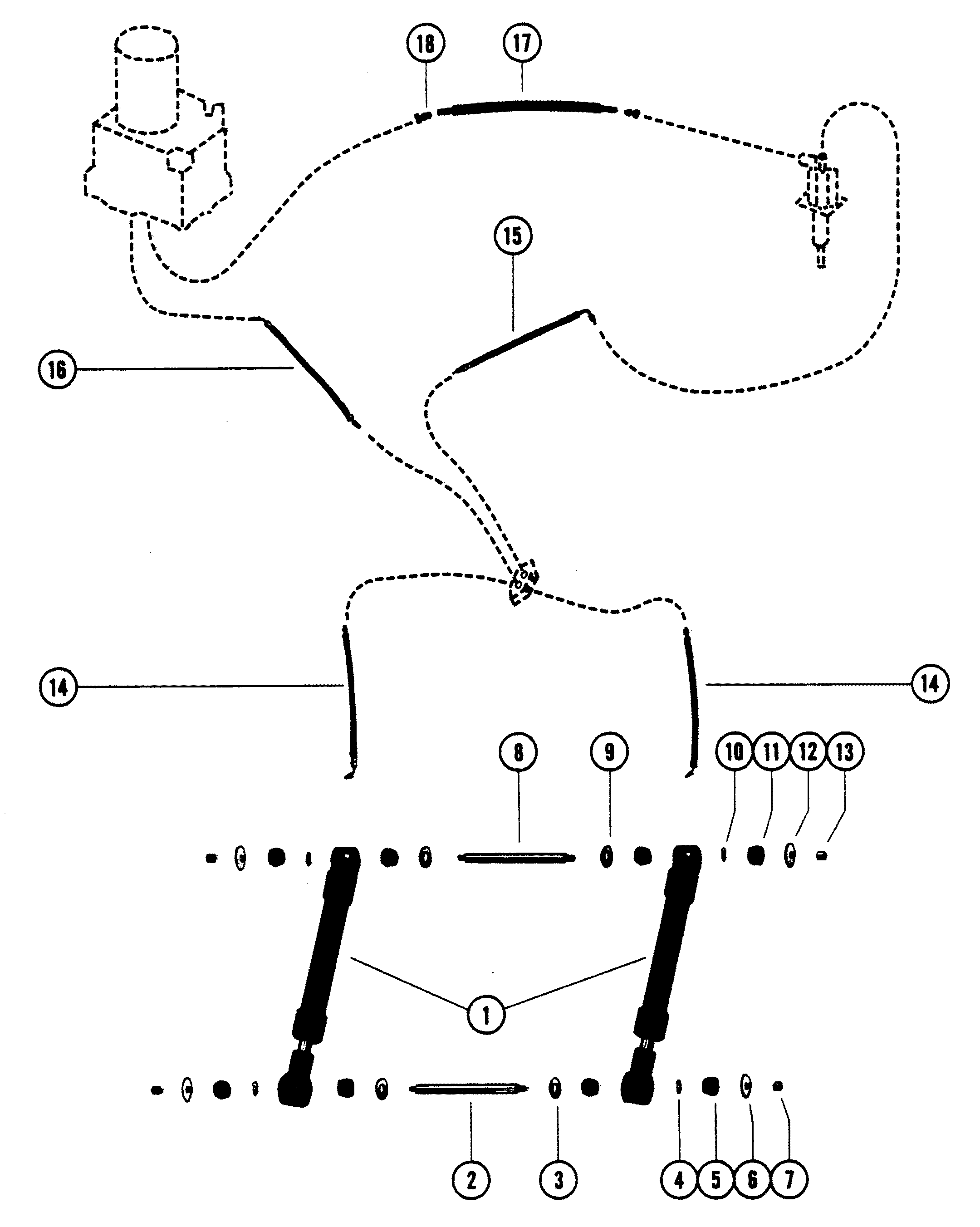

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Control Panel (Prestolite Pump Use With ERL)
- Drive Shaft Housing And Gear Assembly
- Gear Housing (TR)
- Gear Housing (TRS)
- Gimbal Housing
- Gimbal Ring And Steering Lever
- Hydraulic Pump (Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump (Plastic Reservoir)
- Hydraulic Pump (Prestolite Pump)
- Hydraulic Pump And Bracket (Oildyne Pump Metal Reservoir)
- Hydraulic Pump And Bracket (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump And Bracket (Prestolite Pump Use With Erl)
- Hydraulic Pump And Bracket (Prestolite Pump)
- Miscellaneous Parts-Accessories
- Power Steering Components
- Transom Plate
- Trim Cylinder And Hoses (Internal Lines)
- Trim Cylinder Repair Kits (External Lines)
- Trim Cylinder Repair Kits (Internal Lines)
- Trim Cylinders And Hoses (External Lines)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 47342A23 | TRIM CYLINDERS ASS'Y, COMPLETE | 2 | 47342A12 | This Part is No Longer Available SEE TRIM CYLINDER REPAIR KIT (INTERNAL LINES) FOR REPAIR KIT BREAKDOWN | ||||
| 2 | 17-14874A1 | ANCHOR PIN, DRIVE SHAFT HOUSING (10-3/4") | 1 | 14-49279 | |||||
| 3 | 12-89664 | WASHER, ANCHOR PIN (59/64" I.D.) | 2 | ||||||
| 4 | 24-49593 | SPRING, ANCHOR PIN | 2 | No longer made, limited availability | |||||
| 5 | 23-90203 | BUSHING, RUBBER - ANCHOR PIN | 4 | ||||||
| 6 | 12-89665 | WASHER, ANCHOR PIN (33/64" I.D.) | 2 | ||||||
| 7 | 11-35000 | NUT, ANCHOR PIN | 2 | ||||||
| 8 | 17-14875A1 | ANCHOR PIN, GIMBAL RING (13-1/4") | 1 | 17-47374 | |||||
| 9 | 12-89664 | WASHER, ANCHOR PIN (59/64" I.D.) | 2 | ||||||
| 10 | 24-49593 | SPRING, ANCHOR PIN | 2 | No longer made, limited availability | |||||
| 11 | 23-90203 | BUSHING, RUBBER - ANCHOR PIN | 4 | ||||||
| 12 | 12-89665 | WASHER, ANCHOR PIN (33/64" I.D.) | 2 | ||||||
| 13 | 11-35000 | NUT, ANCHOR PIN | 2 | ||||||
| 14 | 32-86036Q | HOSE, CONNECTOR TO TRIM CYLINDER (12-1/2") | 4 | 32-86036 | |||||
| 15 | 32-63158A1 | HOSE, CONNECTOR TO VALVE (25") | 1 | ||||||
| 16 | 32-63157A1 | HOSE, CONNECTOR TO PUMP (50-1/2") | 1 | ||||||
| 17 | 32-58432A2 | TUBING ASSEMBLY, PUMP TO REVERSE LOCK VALVE (49") | 1 | ||||||
| 18 | 22-49718 | NUT, COMPRESSION - HYDRAULIC TUBING | 2 |
