R-MR-Alpha One (Transom Assembly) 1983-1990 - Serial 6216687 Thru 0D469858 - Bell Housing

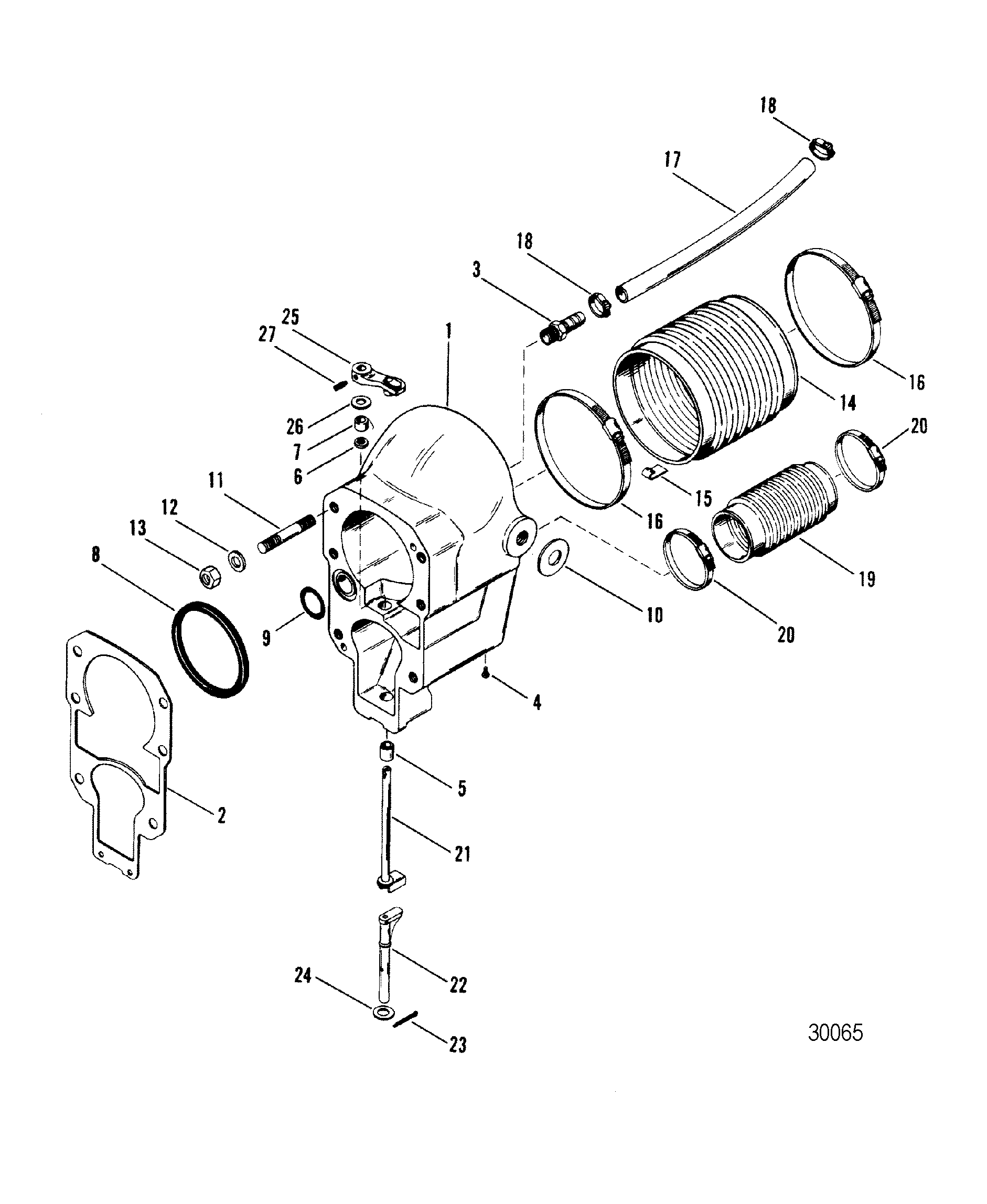

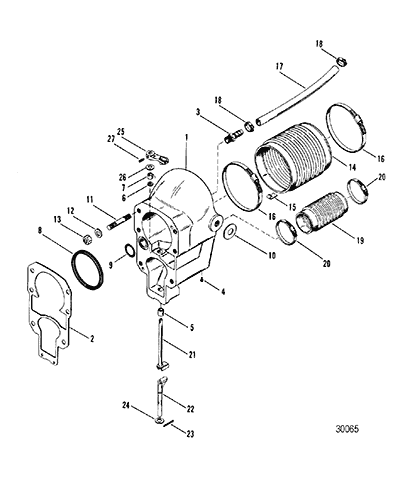

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Auto Trim Components
- Bell Housing
- Continuity Kit
- Drive Unit Chart
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Gear Housing (Driveshaft) - (Counter Rotation)
- Gear Housing (Driveshaft) - MR
- Gear Housing (Driveshaft) - R
- Gear Housing (Propeller Shaft) - MR
- Gear Housing (Propeller Shaft) -(Counter Rotation)
- Gear Housing, Propeller Shaft - R
- Gimbal Housing Square-Splined Upper Swivel Shaft
- Gimbal Housing Square-Square Upper Swivel Shaft
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket Oildyne Pump- Plastic Reservoir
- Hydraulic Pump And Bracket Oildyne Pump-Metal Reservoir
- Hydraulic Pump And Bracket Pretolite Pump
- Hydraulic Pump Oildyne Pump - Metal Reservoir
- Hydraulic Pump Oildyne Pump- Plastic Reservoir
- Hydraulic Pump Prestolite Pump
- Mercathode Kit
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 42815A6 | BELL HOUSING ASSEMBLY (BLACK) | 1 | ||||||
| 2 | 27-94996Q2 | GASKET, BELL HOUSING | 1 | (Gear Repair Kits No. 1 - 5) 11,12,14 | |||||
| 3 | 22-33066 | CONNECTOR, (.500-14) Straight - Brass | 1 | ||||||
| 3 | 22-44221 | CONNECTOR (5/8 Inch HOSE - 3/4-14 THREAD) | 1 | ||||||
| 3 | 22-42683 | 700-13986 | CONNECTOR, (.750-14) | 1 | |||||
| 5 | 23-805041A2 | 676-9-72161 | 700-87561 | BUSHING/SEAL KIT, Oil, BELLHOUSING (5/8 Inch) | 1 | 15 | |||
| 6 | 26-8164641 | SEAL, Oil, BELL HOUSING | 1 | 15 | |||||
| 7 | 23-805041A2 | 676-9-72161 | 700-87561 | BUSHING/SEAL KIT, Oil, BELL HOUSING (5/16 Inch) | 1 | 15 | |||
| 8 | 27-35982 | GASKET, Rubber, Bell Housing | 1 | (Gear Repair Kits No. 1 - 5) 11,12,15 | |||||
| 9 | 25-33504 | O-RING, BELL HOUSING | 1 | (Gear Repair Kits No. 1 - 5) 11,12,15 | |||||
| 10 | 12-72498 | WASHER, Synthane, Bell Housing | 2 | ||||||
| 11 | 16-59579 | STUD, (.437-14/.437-20 x 2.812), BELL HOUSING TO DRIVE SHAFT HOUSING | 6 | ||||||
| 12 | 12-35935 | WASHER, (.435 x .875 x .105) Stainless Steel, BELL HOUSING STUD | 6 | ||||||
| 13 | 11-859116 | NUT, (.437-20), BELL HOUSING STUD | 6 | ||||||
| 14 | 60932A4 | BELLOWS ASSEMBLY, UNIVERSAL JOINT | 1 | 12 | |||||
| 15 | 54-86049 | 676-9-73116 | 700-89440 | CLIP, Grounding, BELLOWS | 4 | 12 | |||
| 16 | 54-815504372 | 700-01100 | CLAMP, Worm Gear, UNIVERSAL JOINT BELLOWS | 2 | 12 | ||||
| 17 | 32-32461 | HOSE, WATER - 5/8 Inch Inside Diameter | 1 | 12 | |||||
| 17 | 32-8M0062309 | HOSE, WATER - 3/4 Inch Inside Diameter | 1 | 32-4172533 | 12 | ||||
| 18 | 54-815504412 | CLAMP, Worm Gear, WATER HOSE | 2 | 12 | |||||
| 19 | 18654A1 | BELLOWS ASSEMBLY, EXHAUST | 1 | 12 | |||||
| 19 | 78458A1 | TUBE (454 MAGNUM/JACKSHAFT MODELS) | 1 | ||||||
| 20 | 54-815504348 | 700-01070 | CLAMP, Worm Gear, EXHAUST BELLOWS | 2 | 12 | ||||
| 21 | 45589A3 | SHAFT ASSEMLBY, SHIFT - UPPER | 1 | ||||||
| 22 | 621041 | SHIFT SHAFT, INTERMEDIATE | 1 | ||||||
| 23 | 18-32665 | COTTER PIN, INTERMEDIATE SHIFT SHAFT | 1 | ||||||
| 24 | 12-32666 | WASHER, INTERMEDIATE SHIFT SHAFT | 1 | ||||||
| 25 | 45518A3 | LEVER ASSEMBLY, UPPER SHIFT SHAFT | 1 | 15 | |||||
| 26 | 12-39116 | WASHER, UPPER SHIFT LEVER | 1 | 15 | |||||
| 27 | 10-45590 | SCREW, (.250-28), UPPER SHIFT LEVER (1-1/16 Inch) | 1 | 15 | |||||
| - | 865436A03 | CABLE KIT, Shift | 1 | 19543T1 | |||||
| - | 30-803097T1 | SEAL KIT, Transom (with Exhaust Bellow) | 1 | ||||||
| - | 30-803098T1 | SEAL KIT, Transom (with Exhaust Tube) | 1 | ||||||
| - | 43-803101T1 | REPAIR KIT, Gear - Upper Driveshaft | 1 | (1.98 Ratio)(20/24 Gear) | |||||
| - | 43-803112T1 | REPAIR KIT, Gear - Upper Driveshaft | 1 | (1.65 Ratio)(24/24 Gear) | |||||
| - | 43-803114T1 | REPAIR KIT, Gear - Upper Driveshaft | 1 | (1.84 Ratio)(17/19 Gear) | |||||
| - | 43-803115T1 | REPAIR KIT, Gear - Upper Driveshaft | 1 | (1.32 Ratio)(16/20 Gear) | |||||
| - | 43-803116T1 | REPAIR KIT, Gear - Upper Driveshaft | 1 | (1.50 Ratio)(20/22 Gear) |
