R-MR-Alpha One (Transom Assembly) 1983-1990 - Serial 6216687 Thru 0D469858 - Gear Housing, Propeller Shaft - R

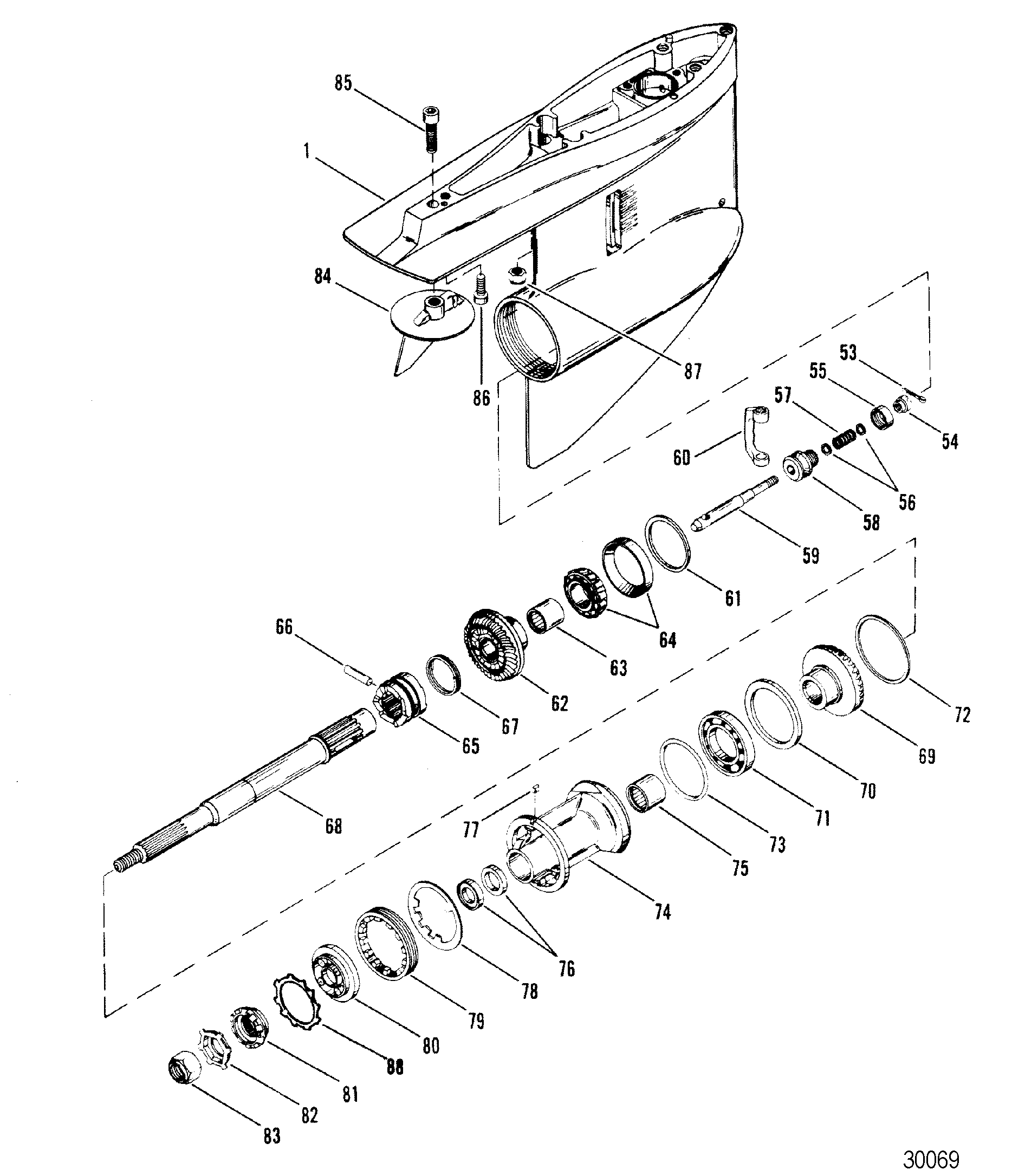

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Auto Trim Components
- Bell Housing
- Continuity Kit
- Drive Unit Chart
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Gear Housing (Driveshaft) - (Counter Rotation)
- Gear Housing (Driveshaft) - MR
- Gear Housing (Driveshaft) - R
- Gear Housing (Propeller Shaft) - MR
- Gear Housing (Propeller Shaft) -(Counter Rotation)
- Gear Housing, Propeller Shaft - R
- Gimbal Housing Square-Splined Upper Swivel Shaft
- Gimbal Housing Square-Square Upper Swivel Shaft
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket Oildyne Pump- Plastic Reservoir
- Hydraulic Pump And Bracket Oildyne Pump-Metal Reservoir
- Hydraulic Pump And Bracket Pretolite Pump
- Hydraulic Pump Oildyne Pump - Metal Reservoir
- Hydraulic Pump Oildyne Pump- Plastic Reservoir
- Hydraulic Pump Prestolite Pump
- Mercathode Kit
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| -- | 1623-8951A43 | GEAR HOUSING ASSEMBLY, COMPLETE | 1 | ||||||
| 1 | 1623-5356A4 | GEAR HOUSING ASSEMBLY | 1 | ||||||
| 53 | 18-469501 | COTTER PIN, CLUTCH ACTUATING SHAFT | 1 | 5 | |||||
| 54 | NSS | NOT SOLD SEPARATE, ADJUSTING - SHAFT | 1 | ||||||
| 55 | NSS | NOT SOLD SEPARATE, SPRING - SHAFT | 1 | This Part is not sold separately (Replacement Spool Assembly 818349T1) 5 | |||||
| 56 | NSS | NOT SOLD SEPARATE, CLUTCH ACTUATING SHAFT | 2 | This Part is not sold separately (Replacement Spool Assembly 818349T1) 5 | |||||
| 57 | NSS | NOT SOLD SEPARATE, COMPRESSION | 1 | This Part is not sold separately (Replacement Spool Assembly 818349T1) 5 | |||||
| 58 | NSS | NOT SOLD SEPARATE, CLUTCH ACTUATING SHAFT | 1 | This Part is not sold separately (Replacement Spool Assembly 818349T1) 5 | |||||
| 59 | NSS | NOT SOLD SEPARATE, CLUTCH ACTUATING | 1 | This Part is not sold separately (Replacement Spool Assembly 818349T1) 5 | |||||
| 60 | 76865 | CRANK, Shift | 1 | ||||||
| 61 | 15-47397A1 | 700-23220 | SHIM SET, BEARING OUTER RACE | AR | 16,16 | ||||
| 62 | NSS | NOT SOLD SEPARATE | 1 | This Part is not sold separately 5,6 | |||||
| 63 | 31-30895T | BEARING, Needle, FORWARD GEAR | 1 | 5,6,16,17 | |||||
| 64 | 31-35928T1 | BEARING ASSEMBLY, Tapered Roller | 1 | 5,16,17 | |||||
| 65 | 52-853594T | CLUTCH, SLIDING | 1 | 17 | |||||
| 66 | 17-30632 | 676-9-78111 | 700-21131 | PIN, Cross, CLUTCH TO PROPELLER CHAFT | 1 | No longer made, limited availability | |||
| 67 | 24-30893 | 676-9-78135 | 700-11050 | SPRING, RETAINER - CROSS PIN | 1 | ||||
| 68 | 44-824110 | PROPELLER SHAFT | 1 | ||||||
| 69 | 43-92320T | GEAR, Reverse | 1 | 5,6,17 | |||||
| 70 | 35915 | THRUST RING, BEARING CARRIER | 1 | 5 | |||||
| 71 | 30-88957T | BEARING, Ball, REVERSE GEAR | 1 | 5,16,17 | |||||
| 72 | 15-97166 | SHIM, THRUST WASHER TO GEAR HOUSING | 1 | 5,16,17 | |||||
| 73 | 25-31534 | O-RING, BEARING CARRIER | 1 | 3,16,17 | |||||
| 74 | 73020A14 | CARRIER ASSEMBLY, Bearing | 1 | ||||||
| 75 | 31-30956T | BEARING, Needle, BEARING CARRIER | 1 | 16,17 | |||||
| 76 | 26-76868 | SEAL, BEARING CARRIER | 2 | 3,16,17 | |||||
| 77 | 28-30281 | KEY, LOCATING - BEARING CARRIER | 1 | ||||||
| 78 | 14-79447 | 700-11380 | TAB WASHER, GEAR HOUSING COVER | 1 | 16,17 | ||||
| 79 | 8M2011027 | RETAINER, GEAR HOUSING | 1 | 79448 | |||||
| 80 | 12-835467Q01 | 700-21301 | THRUST HUB (FOR USE W/ BLACK MAX PROPELLERS) | 1 | 12-8354671 | ||||
| 80 | 56292Q04 | THRUST HUB (FOR USE W/M/C I PROPELLERS) | 1 | 56292A4 | |||||
| 81 | 12-31211Q03 | WASHER, PLINED - PROPELLER SHAFT | 1 | 12-31211A3 | |||||
| 82 | 14-816629Q | 700-21200 | TAB WASHER, PROPELLER NUT | 1 | 14-816629 | ||||
| 83 | 11-52707Q1 | PROP NUT KIT, (.750-16), PROPELLER | 1 | ||||||
| 84 | 31640Q4 | TRIM TAB, GEAR HOUSING (2-3/8 inch) | 1 | ||||||
| 84 | 34127T2 | TRIM TAB ASSEMBLY, GEAR HOUSING (4 inch) | OPT | THIS TRIM TAB CANNOT BE USED WITH "BLACK MAX" PROPELLERS | |||||
| 85 | 10-32470 | SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING | 1 | ||||||
| 86 | 10-30206 | SCREW, (.375-16 x 1.00) Stainless Steel, GEAR HOUSING TO DRIVE SHAFT HOUSING | 1 | ||||||
| 87 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUD | 2 | 11-82671015 | ||||
| 88 | 13-423511 | LOCKWASHER, Toothed, PROPELLER SHAFT | 1 | ||||||
| - | 43-96084A08 | GEAR REPLACEMENT KIT | 1 | 43-96084A2 | |||||
| - | 26-33144A2 | SEAL KIT | 1 | ||||||
| - | 43-96084A4 | GEAR SET | 1 | ||||||
| - | 31-803068T1 | BEARING AND SEAL KIT | 1 | ||||||
| - | 43-803079T1 | REPAIR KIT, Lower Gear | 1 |
