R-MR-Alpha One (Transom Assembly) 1983-1990 - Serial 6216687 Thru 0D469858 - Gear Housing (Driveshaft) - (Counter Rotation)

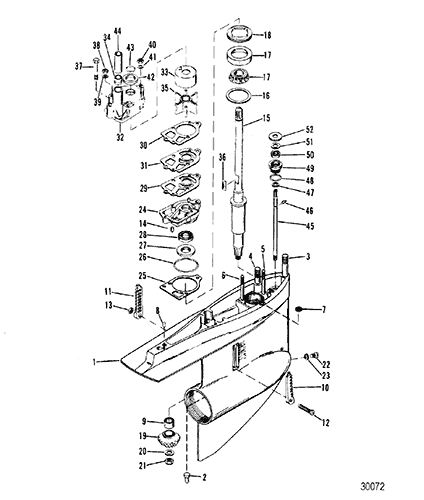

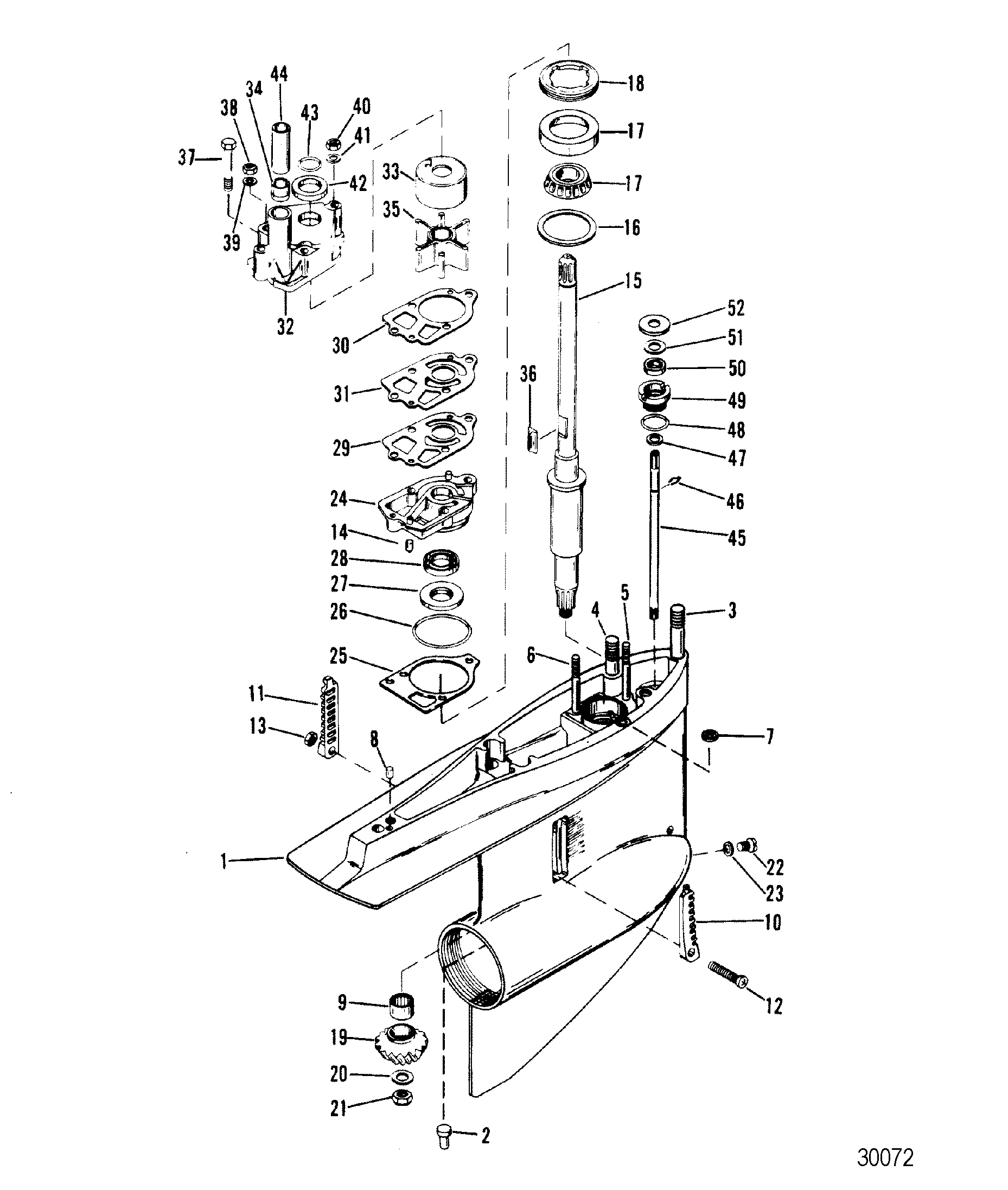

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Auto Trim Components
- Bell Housing
- Continuity Kit
- Drive Unit Chart
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Gear Housing (Driveshaft) - (Counter Rotation)
- Gear Housing (Driveshaft) - MR
- Gear Housing (Driveshaft) - R
- Gear Housing (Propeller Shaft) - MR
- Gear Housing (Propeller Shaft) -(Counter Rotation)
- Gear Housing, Propeller Shaft - R
- Gimbal Housing Square-Splined Upper Swivel Shaft
- Gimbal Housing Square-Square Upper Swivel Shaft
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket Oildyne Pump- Plastic Reservoir
- Hydraulic Pump And Bracket Oildyne Pump-Metal Reservoir
- Hydraulic Pump And Bracket Pretolite Pump
- Hydraulic Pump Oildyne Pump - Metal Reservoir
- Hydraulic Pump Oildyne Pump- Plastic Reservoir
- Hydraulic Pump Prestolite Pump
- Mercathode Kit
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| -- | 1623-8951A33 | GEAR HOUSING ASSEMBLY | 1 | ||||||
| 1 | 1623-8951A39 | GEAR HOUSING ASSEMBLY | 1 | ||||||
| 2 | 17-379721 | PIN, SHIFT CRANK - GEAR HOUSING | 1 | ||||||
| 3 | 16-46911 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3-3/16 inch) | 1 | ||||||
| 4 | 16-56298 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1-31/32 inch) | 2 | ||||||
| 5 | 16-8M0034463 | STUD, (.312-18/.324-24 x 3.380), WATER PUMP GEAR HOUSING | 1 | 16-562972 | |||||
| 6 | 16-69501 | STUD, WATER PUMP GEAR HOUSING (3-1/4 inch) | 2 | ||||||
| 7 | 26-455771 | SEAL, GEAR HOUSING | 1 | 3,18,24,2 | |||||
| 8 | 17-35973 | PIN, Dowel, GEAR HOUSING | 2 | ||||||
| 9 | 31-42647A1 | BEARING ASSEMBLY, Roller, DRIVE SHAFT | 1 | 18,24 | |||||
| 10 | 934231 | INSERT, WATER PICKUP (STARBOARD) | 1 | ||||||
| 11 | 934241 | INSERT, WATER PICKUP (PORT) | 1 | ||||||
| 12 | 10-76156 | SCREW, (#10-32 x 1.88), INSERT TO GEAR HOUSING | 1 | ||||||
| 13 | 11-859124 | NUT, (#10-32) Stainless Steel, INSERT SCREW | 1 | 11-45812 | |||||
| 14 | 17-42836 | PIN, Groove, WATER PUMP | 1 | This Part is No Longer Available | |||||
| 15 | 45-42634 | DRIVESHAFT ASSEMBLY | 1 | ||||||
| 16 | 15-8M0063267 | SHIM SET, DRIVE SHAFT BEARING | AR | 15-42637A1 | 18,24 | ||||
| 17 | 31-36387A1 | BEARING, Roller, DRIVESHAFT | 1 | 18,24 | |||||
| 18 | 8245191 | RETAINER, DRIVE SHAFT BEARING | 1 | ||||||
| 19 | 43-828071A1 | GEAR SET (INCLUDES PINION AND FORWARD GEARS) | 1 | 24 | |||||
| 20 | 12-92721 | 676-9-78108 | 700-32800 | WASHER, PINION GEAR | 1 | 18,24 | |||
| 21 | 11-35921 | 676-9-78103 | 700-11190 | NUT, (.625-18), PINION GEAR TO DRIVESHAFT | 1 | 18,24 | |||
| 22 | 22-8M0058389 | FITTING KIT, Magnetic, Plug Fill/Drain | 1 | 22-67892A1 | |||||
| 23 | 12-191833 | WASHER, FILL/DRAIN SCREW | 1 | 12-191832 | (Component of Lower Seal Kit 26-33144A2) 18,24,22,2 | ||||
| 24 | 46-44292A3 | BASE ASSEMBLY, Water Pump | 1 | ||||||
| 25 | 27-426311 | GASKET, WATER PUMP TO GEAR HSG | 1 | (Component of Water Pump Kit 46-44292A3) 3,18,24,2 | |||||
| 26 | 25-896523 | O-RING, (2.175 x .175), WATER PUMP | 1 | 25-90011 | (Component of Water Pump Kit 46-44292A3) 3,18,24,2 | ||||
| 27 | 26-16977 | SEAL, Oil, WATER PUMP | 1 | 18,24,3 | |||||
| 28 | 26-16977 | SEAL, Oil, WATER PUMP | 1 | 3,18 | |||||
| 29 | 27-856081 | GASKET, LOWER - WATER PUMP | 1 | (Component of Water Pump Impeller Kit 47-89984T5) 3,18,24,2 | |||||
| 30 | 27-858524 | GASKET, UPPER - WATER PUMP | 1 | (Component of Water Pump Impeller Kit 47-89984T5) 3,18,24,2 | |||||
| 31 | 324351 | FACE PLATE | 1 | 32435 | 22 | ||||
| 32 | 46-96148T1 | BODY ASSEMBLY, Water Pump | 1 | 2 | |||||
| 33 | 48752T | INSERT, WATER PUMP | 1 | ||||||
| 34 | 26-38970 | SEAL, RUBBER - WATER INLET TUBE | 1 | 2,19 | |||||
| 35 | 47-89984T4 | IMPELLER, WATER PUMP | 1 | 22,2 | |||||
| 36 | 8M0032834 | KEY, IMPELLER DRIVE | 1 | 28-56654 | 22,2 | ||||
| 37 | 10-96411 | SCREW, (#14-8 x 2.25), WATER PUMP TO GEAR HOUSING | 1 | 2 | |||||
| 38 | 11-8267119 | NUT, (.250-28), WATER PUMP STUD | 2 | 11-13438 | |||||
| 39 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP STUD | 2 | ||||||
| 40 | 11-13436 | NUT, WATER PUMP STUDS (5/16-24) | 1 | ||||||
| 41 | 12-36001 | WASHER, WATER PUMP STUD | 1 | ||||||
| 42 | 25-30271 | RING, Rubber, DRIVE SHAFT | 1 | 22,2 | |||||
| 43 | 25-30613 | O-RING, UPPER - DRIVE SHAFT | 1 | (Component of Water Pump Impeller Kit 47-89984T5) 3,18,24,2 | |||||
| 44 | 23-29804T | SLEEVE, GUIDE - WATER INLET TUBE | 1 | 22 | |||||
| 45 | 774811 | SHIFT SHAFT, LOWER | 1 | ||||||
| 46 | 53-29641 | 700-21136 | E RING, SHIFT SHAFT | 1 | |||||
| 47 | 12-27880 | WASHER, LOWER SHIFT SHAFT AND CRANK | 1 | ||||||
| 48 | 25-25439 | O-RING, (.862 x .103), SHIFT SHAFT BUSHING | 1 | 18,24,3 | |||||
| 49 | 23-30617A2 | 676-9-76133 | 700-21010 | BUSHING ASSEMBLY, SHIFT SHAFT | 1 | 18,24,3 | |||
| 50 | 26-892361 | SEAL, Oil, SHIFT SHAFT BUSHING | 1 | 3,18,24 | |||||
| 51 | 12-31266 | 700-30010 | WASHER, RUBBER - SHIFT SHAFT BUSHING | 1 | 3,18,24 | ||||
| 52 | 12-29395 | 676-9-78137 | 700-21800 | WASHER, (.390 x 1.00 x .06), SHIFT SHAFT | 1 | ||||
| - | 46-96148A8 | BODY ASSEMBLY, Water Pump | - | ||||||
| - | 26-33144A2 | SEAL KIT | - | ||||||
| - | 26-32511A1 | SEAL KIT | 1 | ||||||
| - | 31-803092T1 | BEARING AND SEAL KIT | 1 | This Part is No Longer Available | |||||
| - | 43-803093T1 | GEAR KIT, Lower | 1 | ||||||
| - | 46-44292A3 | BASE ASSEMBLY, Water Pump | 1 | ||||||
| - | 47-89984T5 | IMPELLER KIT, Water Pump | 1 |
