R-MR-Alpha One (Transom Assembly) 1983-1990 - Serial 6216687 Thru 0D469858 - Gimbal Ring And Steering Lever

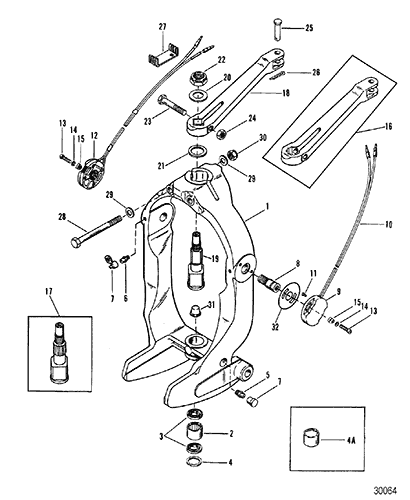

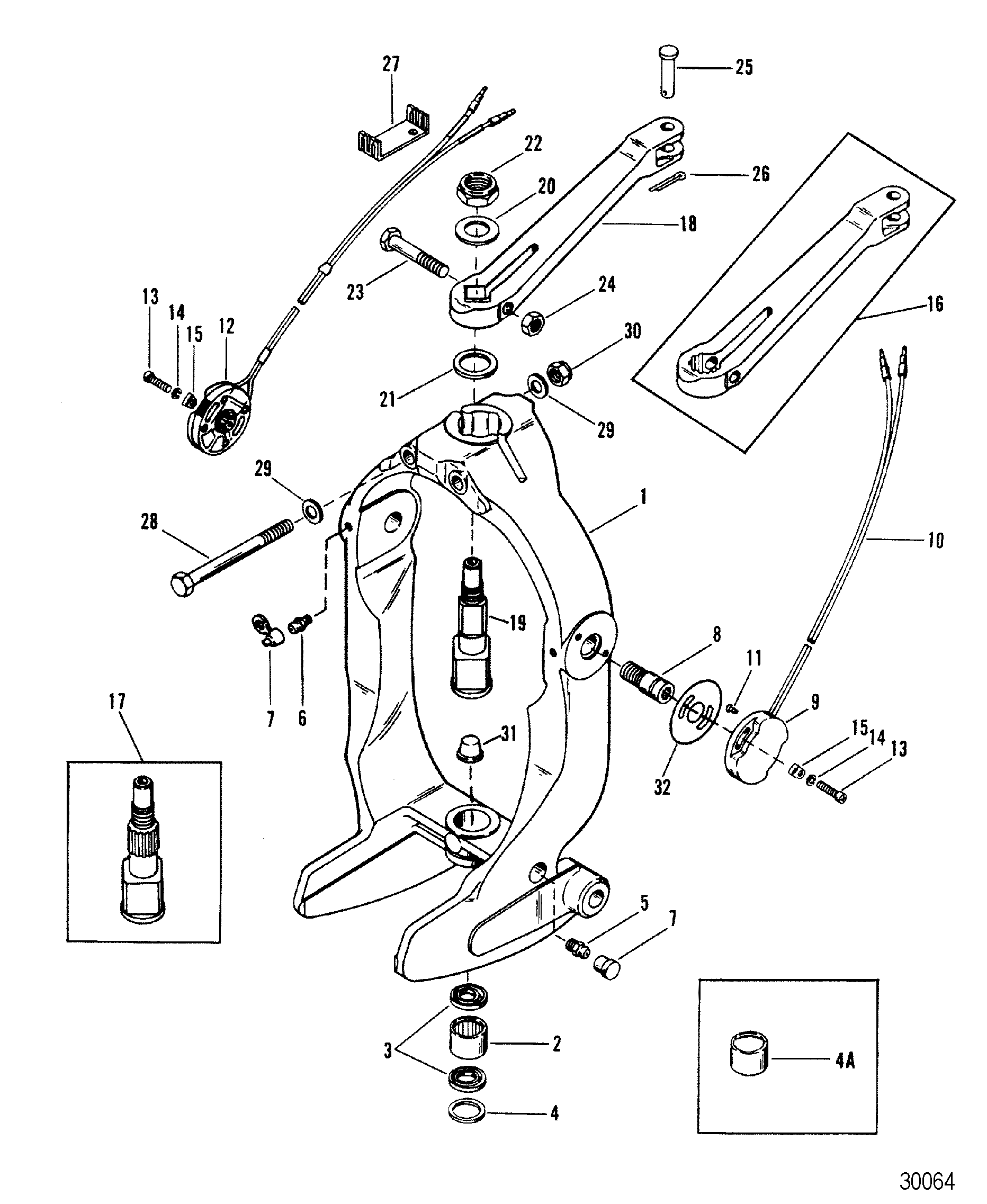

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Auto Trim Components
- Bell Housing
- Continuity Kit
- Drive Unit Chart
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Gear Housing (Driveshaft) - (Counter Rotation)
- Gear Housing (Driveshaft) - MR
- Gear Housing (Driveshaft) - R
- Gear Housing (Propeller Shaft) - MR
- Gear Housing (Propeller Shaft) -(Counter Rotation)
- Gear Housing, Propeller Shaft - R
- Gimbal Housing Square-Splined Upper Swivel Shaft
- Gimbal Housing Square-Square Upper Swivel Shaft
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket Oildyne Pump- Plastic Reservoir
- Hydraulic Pump And Bracket Oildyne Pump-Metal Reservoir
- Hydraulic Pump And Bracket Pretolite Pump
- Hydraulic Pump Oildyne Pump - Metal Reservoir
- Hydraulic Pump Oildyne Pump- Plastic Reservoir
- Hydraulic Pump Prestolite Pump
- Mercathode Kit
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 94993A12 | GIMBAL RING KIT, With Upper Swivel Shaft (use with square steering arm) | 1 | ||||||
| - | 88302A1 | GIMBAL RING KIT, With Upper Swivel Shaft (use with spline steering arm) | 1 | ||||||
| 1 | 94993A7 | GIMBAL RING ASSEMBLY (BLACK) | 1 | ||||||
| 2 | 31-32538 | BEARING, GIMBAL RING (OLD DESIGN) | 1 | ||||||
| 3 | 26-32541 | SEAL, Oil, GIMBAL RING (OLD DESIGN) | 2 | ||||||
| 4 | 23-39273 | SPACER, GIMBAL RING (OLD DESIGN) | 1 | ||||||
| 4A | 23-99352 | BEARING, GIMBAL RING (NYLON) (NEW DESIGN) | 1 | ||||||
| 5 | 22-69059 | FITTING, GIMBAL RING (1/8-27) | 1 | ||||||
| 6 | 22-74036 | FITTING, Grease, GIMAB RING (1/4-28) | 2 | ||||||
| 7 | 19-77633Q | LUBRICAP, GIMBAL RING GREASE FITTING | 3 | ||||||
| 8 | 77123 | PIN, Hinge, THREADED (WITH GREASE GROOVE) | 2 | ||||||
| 9 | 64947 | SENDER, DUMMY (STARBOARD) (BLACK) | 1 | This is a plastic dummy sender only, it does not do anything. | |||||
| 10 | 84-19216 | HARNESS ASSEMBLY, DUMMY SENDER (STARBOARD) | 1 | This Part is No Longer Available | |||||
| 11 | 10-46942 | SCREW, (#6-20 x .3125), HARNESS ATTACHING (STARBOARD) | 2 | ||||||
| 12 | 805320A1 | SWITCH ASSEMBLY, TRIM LIMIT - PORT (BLACK) | 1 | 99122A2 | No longer availabe - ORDER 805320A 1 | ||||
| 13 | 10-37978 | SCREW, (#10-32 x .750) Stainless Steel, SWITCH AND SENDER TO GIMBAL RING | 4 | ||||||
| 14 | 13-26996 | LOCKWASHER, (#10) Stainless Steel, SWITCH AND SENDER SCREW | 4 | ||||||
| 15 | 57008 | RETAINER, SWITCH AND SENDER SCREW | 4 | ||||||
| 16 | 94991A1 | LEVER ASSEMBLY, Steering (SQUARE/SPLINED SWIVEL SHAFT) | 1 | This Part is No Longer Available | |||||
| 17 | 88302A2 | SHAFT, UPPER SWITCH (SQUARE/SPLINED SWIVEL SHAFT) | 1 | ||||||
| 18 | 866322A01 | LEVER ASSEMBLY (SQUARE SWIVEL SHAFT) | 1 | 98262A1 | |||||
| 19 | 98230A1 | SHAFT ASSEMBLY, UPPER SWIVEL (SQUARE SWIVEL SHAFT) | 1 | ||||||
| 20 | 12-85344 | WASHER, (.750 Inside Diameter) | 1 | ||||||
| 21 | 12-32997 | WASHER (SPLINED SWIVEL SHAFT) | 1 | no longer made, limited availability | |||||
| 21 | 12-98548 | WASHER, (1.125 ) (SQUARE SWIVEL SHAFT) | 1 | ||||||
| 22 | 11-8M2014641 | NUT, (.750-16), UPPER SWIVEL SHAFT | 1 | 11-82671323 | |||||
| 23 | 10-807204 | SCREW, (.437-20 x 2.00), STEERING LEVER TO UPPER SWIVEL SHAFT | 1 | ||||||
| 24 | 11-8M2008293 | NUT, (.437-20), STEERING LEVER TO UPPER SWIVEL SHAFT SCREW | 1 | 11-98533 | |||||
| 25 | 17-52798 | PIN, Clevis, CABLE TO STEERING LEVER (NON POWER STEERING) | 1 | ||||||
| 26 | 18-46950 | COTTER PIN (NON POWER STEERING) | 1 | ||||||
| 27 | 79146 | RETAINER, CONNECTOR, TRIM LIMIT LEADS | 2 | ||||||
| 28 | 10-88432 | SCREW, (.375-24 x 4.00), GIMBAL RING SEE DRIVE UNIT CHART REF. #'S 1-10 | 2 | ||||||
| 28 | 10-90126 | SCREW, (.375-24 x 3.750), GIMBAL RING SEE DRIVE UNIT CHART REF. #'S 1-10 | 2 | ||||||
| 29 | 12-34931 | WASHER, (.406 x .734 x .063) Stainless Steel, GIMBAL RING SCREW | 4 | ||||||
| 30 | 11-862903 | NUT, (.375-24), GIMBAL RING SCREW | 2 | ||||||
| 31 | 19-90887 | PLUG, UPPER SWIVEL SHAFT | 1 | This Part is No Longer Available | |||||
| 32 | 85-63990 | INSULATOR, TRIM LIMIT SWITCH | 1 | ||||||
| - | 805320A03 | SWITCH ASSEMBLY (BLACK) | AR | 805320A1 | |||||
| - | 805130A6 | SENDER KIT, Dual Station (BLACK) | AR |
