R-MR-Alpha One (Transom Assembly) 1983-1990 - Serial 6216687 Thru 0D469858 - Driveshaft Housing And Drive Gears

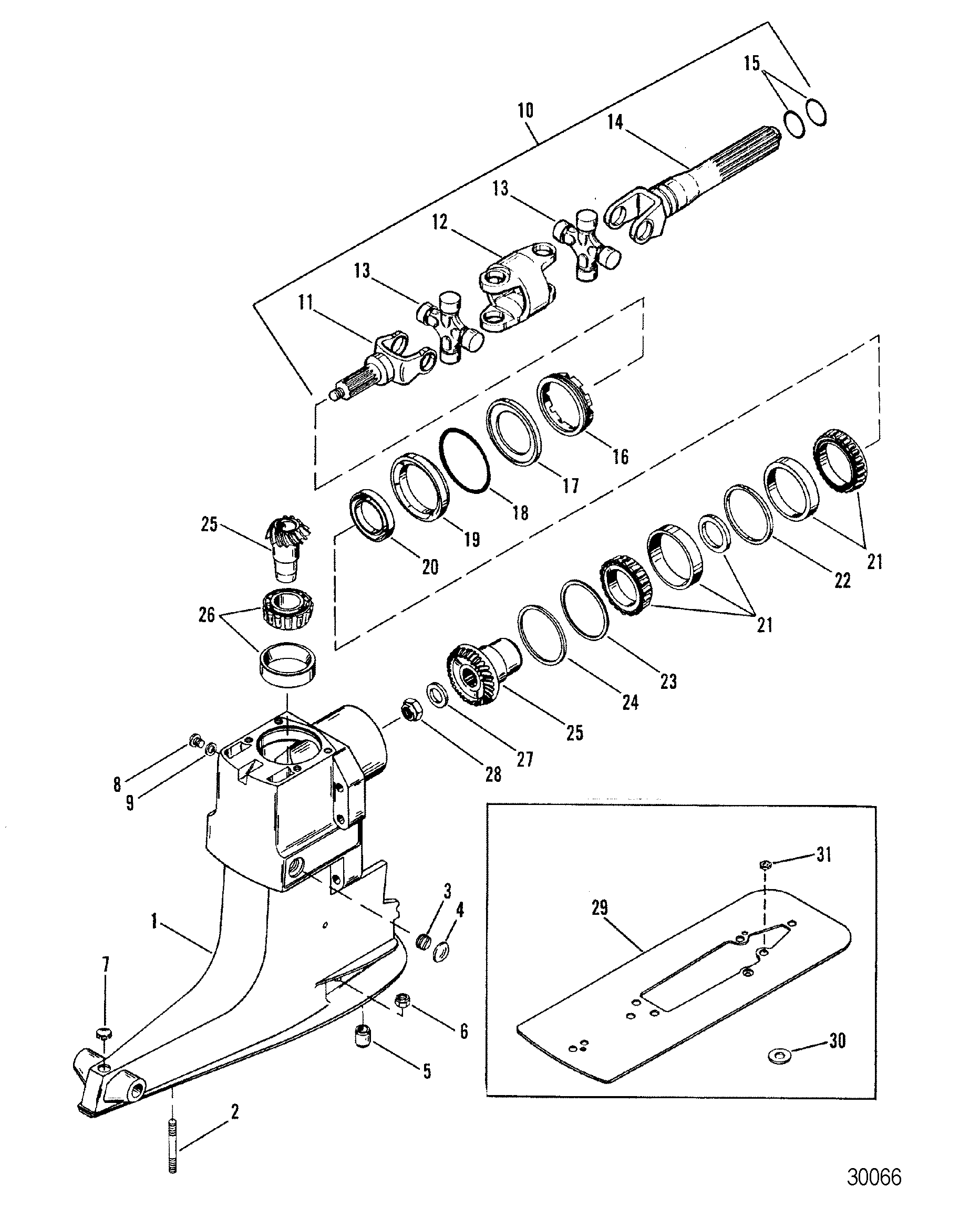

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Auto Trim Components
- Bell Housing
- Continuity Kit
- Drive Unit Chart
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Gear Housing (Driveshaft) - (Counter Rotation)
- Gear Housing (Driveshaft) - MR
- Gear Housing (Driveshaft) - R
- Gear Housing (Propeller Shaft) - MR
- Gear Housing (Propeller Shaft) -(Counter Rotation)
- Gear Housing, Propeller Shaft - R
- Gimbal Housing Square-Splined Upper Swivel Shaft
- Gimbal Housing Square-Square Upper Swivel Shaft
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket Oildyne Pump- Plastic Reservoir
- Hydraulic Pump And Bracket Oildyne Pump-Metal Reservoir
- Hydraulic Pump And Bracket Pretolite Pump
- Hydraulic Pump Oildyne Pump - Metal Reservoir
- Hydraulic Pump Oildyne Pump- Plastic Reservoir
- Hydraulic Pump Prestolite Pump
- Mercathode Kit
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1547-9412A18 | HOUSING ASSEMBLY, Driveshaft (BLACK) | 1 | ||||||
| 2 | 16-56295 | STUD, (.437 x 2.69) | 2 | ||||||
| 3 | 22-428611 | FITTING, Pipe - Brass (.750-14) | 1 | ||||||
| 4 | 19-32652 | WELCH PLUG (7/8 inch O.D.) | 1 | ||||||
| 4 | 19-42682 | WELCH PLUG (1-1/4 inch O.D.) | 1 | ||||||
| 5 | 23-32632 | 700-21423 | BUSHING | 1 | |||||
| 6 | 11-859116 | NUT, (.437-20) | 3 | ||||||
| 7 | 19-47579 | 700-21890 | PLUG (1/2 inch DIA. HOLE) (BLACK) | 1 | |||||
| 7 | 47591 | ROD (1/2 inch DIA. HOLE) (OYSTER) | 1 | This Part is No Longer Available | |||||
| 8 | 10-79953Q04 | SCREW KIT, (.375-16 x .250) Drain | 1 | 10-79953Q2 | |||||
| 9 | 12-191833 | WASHER | 1 | 12-191832 | (Component of Gear Repair Kits No. 1 - 5) 3,14,19 | ||||
| 10 | 814819A2 | UNIVERSAL JOINT | 1 | ||||||
| 11 | 46020T02 | YOKE, GEAR END | 1 | 460201 | |||||
| 12 | 393831 | SOCKET, Center | 1 | ||||||
| 13 | 75832T | CROSS AND BEARING | 2 | SN# B-418818 & Below | |||||
| 13 | 75832T1 | 700-28030 | CROSS AND BEARING | 2 | SN# B-418819 & Up | ||||
| 14 | 59830A7 | YOKE ASSEMBLY, COUPLING END | 1 | ||||||
| 15 | 25-25439 | O-RING, (.862 x .103) | 2 | (Component of Gear Repair Kits No. 1 - 5) 3,11,12 | |||||
| 16 | 8168112 | RETAINER | 1 | ||||||
| 17 | 35983 | RING | 1 | ||||||
| 18 | 25-70937 | 676-9-76551 | 700-82380 | O-RING | 1 | (Component of Gear Repair Kits No. 1 - 5) 14 | |||
| 19 | 66081A2 | CARRIER ASSEMBLY | 1 | ||||||
| 20 | 26-823894 | SEAL, Oil | 1 | ||||||
| 21 | 31-35988A12 | BEARING KIT, Roller | 1 | (Component of Gear Repair Kits No. 1-2-3 & 5) 14 | |||||
| 22 | 23-35985 | SPACER | 1 | (Component of Gear Repair Kits No. 1-2-3 & 5) 14 | |||||
| 21 | 31-35988A3 | BEARING ASSEMBLY, Tapered Roller (1.32 RATIO ONLY) | 1 | (Component of Gear Repair Kit No. 4) 14 | |||||
| 22 | 23-66824 | SPACER (1.32 RATIO ONLY) | 1 | (Component of Gear Repair Kit No. 4) 14 | |||||
| 21 | 31-35988A9 | BEARING ASSEMBLY | 1 | (1.5O HEAVY DUTY RATIO ONLY) | |||||
| 22 | 23-66824 | SPACER | 1 | (1.5O HEAVY DUTY RATIO ONLY) | |||||
| 23 | 15-35980A1 | 700-23280 | SHIM SET | AR | (Component of Gear Repair Kits No. 1-5) 14 | ||||
| 24 | 15-71013 | 700-28380 | SHIM, Spacer | 1 | |||||
| 25 | 43-55778A3 | GEAR KIT (1.98 RATIO) (20-24 GEAR RATIO) | AR | (Component of Gear Repair Kit No. 1) 14 | |||||
| 25 | 43-45814A5 | 700-11220 | GEAR KIT (1.65 RATIO) (24-24 GEAR RATIO) | AR | (Component of Gear Repair Kit No. 2) 14 | ||||
| 25 | 43-75325A3 | GEAR KIT (1.84 RATIO) (17-19 GEAR RATIO) | AR | (Component of Gear Repair Kit No. 3) 14 | |||||
| 25 | 43-18411A2 | GEAR KIT (1.50 RATIO) (20-22 GEAR RATIO) | AR | (Component of Gear Repair Kit No. 5) 14 | |||||
| 25 | 43-66773A3 | GEAR SET (1.32 RATIO) (16-20 GEAR RATIO) | AR | (Component of Gear Repair Kit No. 4) 14 | |||||
| 25 | 43-18411A4 | GEAR KIT, With Bearings And Shims | AR | (1.50 RATIO) (20-22 RATIO) (REPLACES HEAVY DUTY KIT) | |||||
| 26 | 31-35990A1 | BEARING ASSEMBLY, Roller (TIMKEN CONE #89449/CUP #89410) | AR | USED W/(1.98, 1.65, 1.84 RATIO) - WAS ALSO USED ON EARLY STYLE 1.50 RATIOS(Component of Gear Repair Kits 1-2 &3) 14 | |||||
| 26 | 31-66818A1 | BEARING ASSEMBLY, Tapered Roller (TIMKEN CONE #43131/CUP #43300) | AR | USED WITH 1.32 RATIO(Component of Gear Repair Kit No. 4) 14 | |||||
| 26 | 31-32573A1 | BEARING ASSEMBLY, Roller (TIMKEN CONE #24780/CUP #24720) | AR | USED WITH 1.50 RATIO AND 1.50 HEAVY DUTY(Component of Gear Repair Kit 5) 14 | |||||
| 27 | 12-45810 | 676-9-78107 | 700-28330 | WASHER | 1 | (Component of Gear Repair Kits No.1-5) 14 | |||
| 28 | 11-22339 | 700-28360 | 525-11-22339 | NUT, (.625-18) | 1 | (Component of Gear Repair Kits No.1-5) 14 | |||
| 29 | 42512A2 | SPLASH PLATE KIT (OPTIONAL) | 1 | This Part is No Longer Available | |||||
| 30 | 12-29395 | 676-9-78137 | 700-21800 | WASHER, (.390 x 1.00 x .06) (OPTIONAL) | 1 | ||||
| 31 | 26-455771 | SEAL (OPTIONAL) | 1 | 3,19 | |||||
| - | 26-32511A1 | SEAL KIT | 1 | ||||||
| - | 865436A03 | CABLE KIT, Shift | 1 | 19543T1 | |||||
| - | 30-803097T1 | SEAL KIT, Transom (with Exhaust Bellow) | 1 | ||||||
| - | 30-803098T1 | SEAL KIT, Transom (with Exhaust Tube) | 1 | ||||||
| - | 43-803101T1 | REPAIR KIT, Gear - Upper Driveshaft | 1 | (1.98 Ratio)(20/24 Gear) | |||||
| - | 43-803112T1 | REPAIR KIT, Gear - Upper Driveshaft | 1 | (1.65 Ratio)(24/24 Gear) | |||||
| - | 43-803114T1 | REPAIR KIT, Gear - Upper Driveshaft | 1 | (1.84 Ratio)(17/19 Gear) | |||||
| - | 43-803115T1 | REPAIR KIT, Gear - Upper Driveshaft | 1 | (1.32 Ratio)(16/20 Gear) | |||||
| - | 43-803116T1 | REPAIR KIT, Gear - Upper Driveshaft | 1 | (1.50 Ratio)(20/22 Gear) |
