Alpha One (Gen. II) 1996-1997 - Serial 0F680000 Thru 0K999999 - Driveshaft Housing And Driveshaft

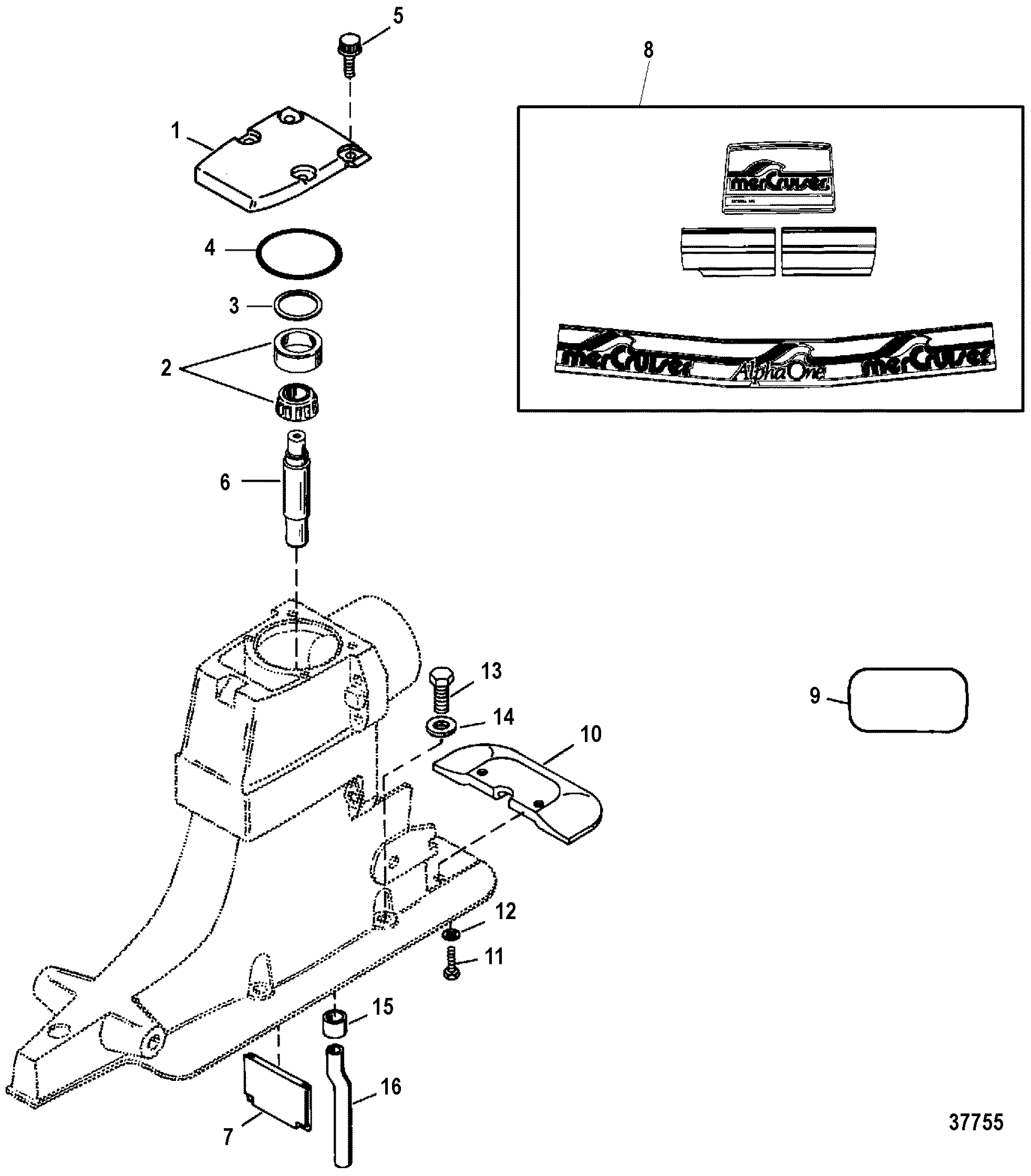

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Counter Rotation)
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Seal Kit, Driveshaft Housing
- Seal Kit, Gear Housing
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 828692A1 | COVER ASSEMBLY | 1 | ||||||
| 2 | 31-32575T1 | 676-9-75106 | BEARING ASSEMBLY, Roller | 1 | 31-32575A1 | ||||
| 3 | 15-32563A1 | 700-23261 | SHIM SET | AR | 3 | ||||
| 4 | 25-32546 | 676-9-76546 | 700-80420 | O-RING | 1 | 4 | |||
| 5 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 4 | |||
| 6 | 45-557961 | DRIVESHAFT, Upper | 1 | ||||||
| 7 | 815932 | 700-10991 | FILLER WALL | 1 | |||||
| 8 | 37-817387A91 | DECAL SET | 1 | ||||||
| 9 | 37-13722A11 | DECAL SET, Engine Model | 1 | (3.0LX) | |||||
| 9 | 37-13722A13 | DECAL SET, Engine Model | 1 | (4.3L/4.3LX/5.7L) | |||||
| 9 | 37-13722A14 | DECAL SET | 1 | (4.3LX/4.3LXH/262 MAG)(GEN +) 1 | |||||
| 9 | 37-13722A15 | DECAL SET | 1 | (5.7L/LX CARB & EFI) no longer made, limited availability 1 | |||||
| 9 | 37-13722A16 | DECAL SET | 1 | This Part is No Longer Available (350 MAGNUM) 1 | |||||
| 10 | 821629Q1 | 700-12711 | ANODE ASSEMBLY | 1 | 821629A1 | ||||
| 11 | 10-28668 | 676-9-78127 | 700-22440 | SCREW, (.250-20 x .875) Stainless Steel | 2 | ||||
| 12 | 13-78968 | 676-9-78144 | LOCKWASHER, Internal (.250) | 2 | |||||
| 13 | 10-816601 | 700-28430 | SCREW, (.437-20 x 1.500) | 4 | |||||
| 14 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 4 | |||||
| 15 | 26-88397 | 700-12831 | SEAL | 1 | 4 | ||||
| 16 | 32-860220 | 676-9-44010 | 700-12829 | TUBE, Water | 1 | 32-814384 | |||
| - | 26-88397A1 | 700-87501 | SEAL KIT, Driveshaft Housing | - |
