Alpha One (Gen. II) 1996-1997 - Serial 0F680000 Thru 0K999999 - Hydraulic Pump And Bracket

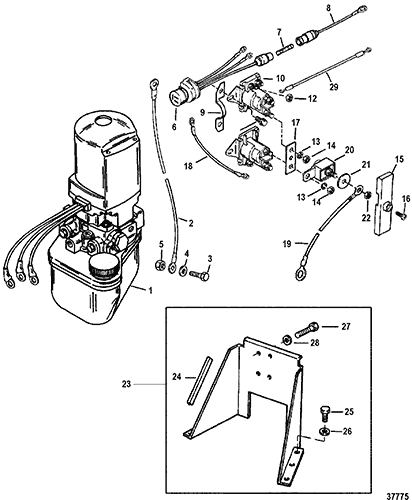

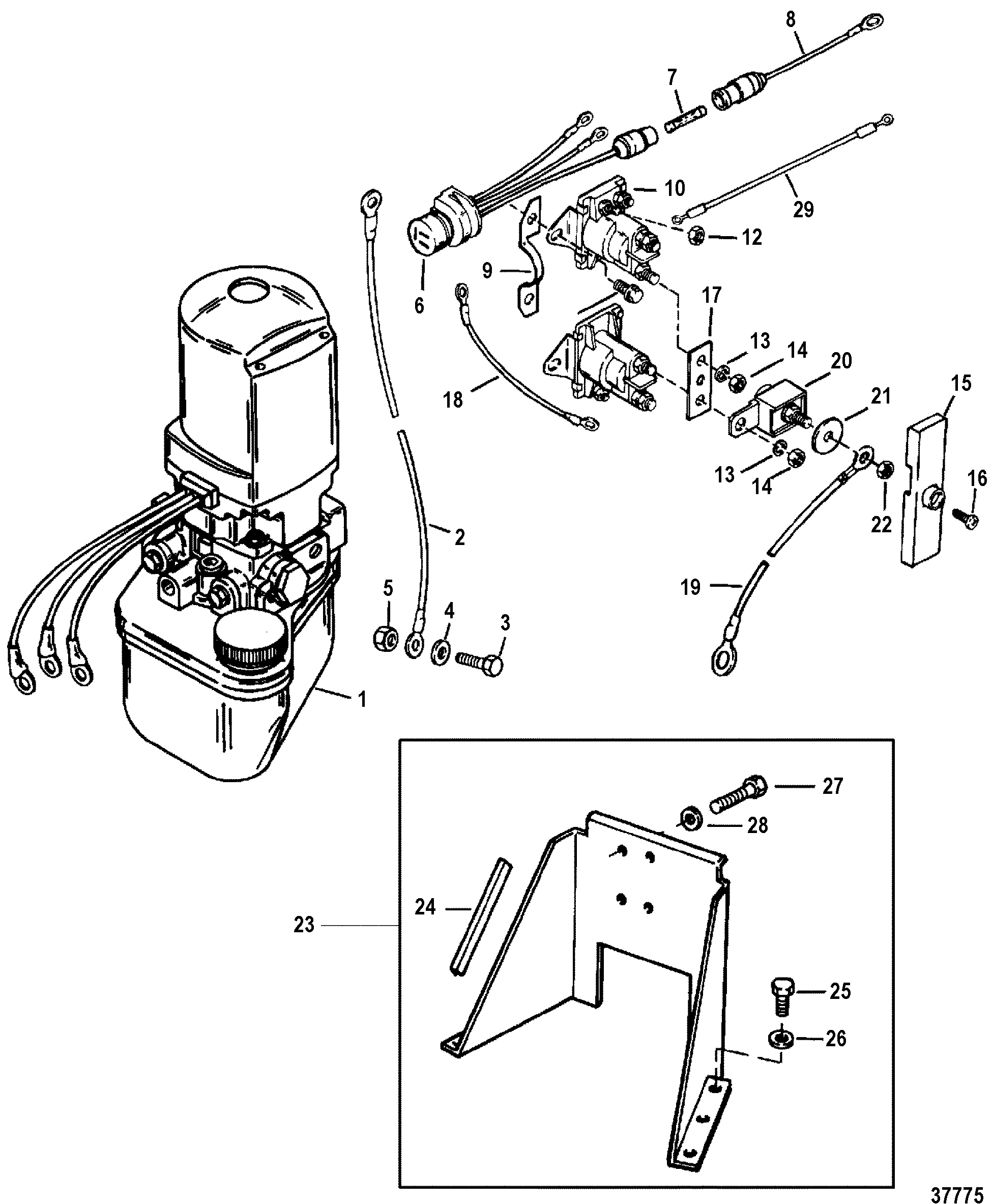

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Counter Rotation)
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Seal Kit, Driveshaft Housing
- Seal Kit, Gear Housing
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Note: COMPLETE HYDRAULIC PUMP INCLUDES ALL PARTS ON THIS PAGE. | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865380A13 | PUMP/MOTOR ASSEMBLY | 1 | 14336A8 | (SEE "HYDRAULIC PUMP" SECTION FOR BREAKDOWN) | ||||
| 2 | 84-79138A9 | CABLE ASSEMBLY, (6.00 Feet) Black-Negative | 1 | ||||||
| 3 | 10-90285 | SCREW, (.312-18 x .625) | 1 | ||||||
| 4 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 1 | ||||||
| 5 | 11-68292 | NUT, (.312-18) | 1 | ||||||
| 6 | 84-79147A3 | HARNESS ASSEMBLY | 1 | ||||||
| 7 | 88-79091 | FUSE, 20 Ampere | 1 | ||||||
| 8 | 84-95084A2 | CABLE ASSEMBLY | 1 | ||||||
| 9 | 88075 | RETAINER | 1 | ||||||
| 10 | 89-96158T | SOLENOID, Starter | 2 | 89-96158 | |||||
| 11 | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel | 4 | ||||||
| 12 | 11-26419 | NUT, (#8-32) Brass | 4 | ||||||
| 13 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 4 | ||||||
| 14 | 11-94330 | NUT, (.250-20) Brass | 4 | ||||||
| 15 | 85-861680 | BOOT | 1 | 85-96535 | |||||
| 16 | 10-48409 | SCREW, (#10-16 x .625) Stainless Steel | 1 | ||||||
| 17 | 94275 | LINK | 1 | ||||||
| 18 | 84-86322A15 | CABLE ASSEMBLY, (5.50 Inches) Black | 2 | ||||||
| 19 | 84-79139A12 | CABLE ASSEMBLY, Red-Positive | 1 | ||||||
| 20 | 79023T10 | FUSE ASSEMBLY, 110 Ampere | 1 | 88-79023A10 | |||||
| 21 | 12-96457 | WASHER, Phenolic (.27 x .81 x .062) | 1 | ||||||
| 22 | 11-21825 | NUT, (.250-28) | 1 | ||||||
| 23 | 862548A1 | BRACKET ASSEMBLY (FLOOR MOUNTED) | 1 | 42419A1 | |||||
| 24 | 58491 | CHANNEL, Rubber (4.00 Inches) | 2 | ||||||
| 25 | 10-59784 | SCREW, (.250-10 x 1.00) | 6 | ||||||
| 26 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 6 | ||||||
| 27 | 10-35386 | SCREW, (.312-18 x 1.00) | 4 | ||||||
| 28 | 13-39107 | 700-21496 | LOCKWASHER, (.312-24) | 4 | |||||
| 29 | 84-86322A24 | CABLE ASSEMBLY, (4.00 Inches) | 1 | ||||||
| - | 865380A25 | PUMP ASSEMBLY, Trim | 1 | 14336A9 | (SEE NOTE) | ||||
