Alpha One (Gen. II) 1996-1997 - Serial 0F680000 Thru 0K999999 - Power Steering

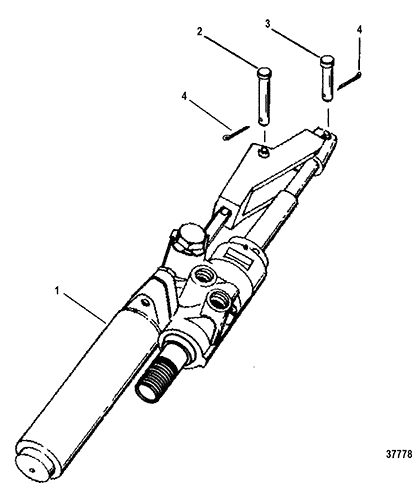

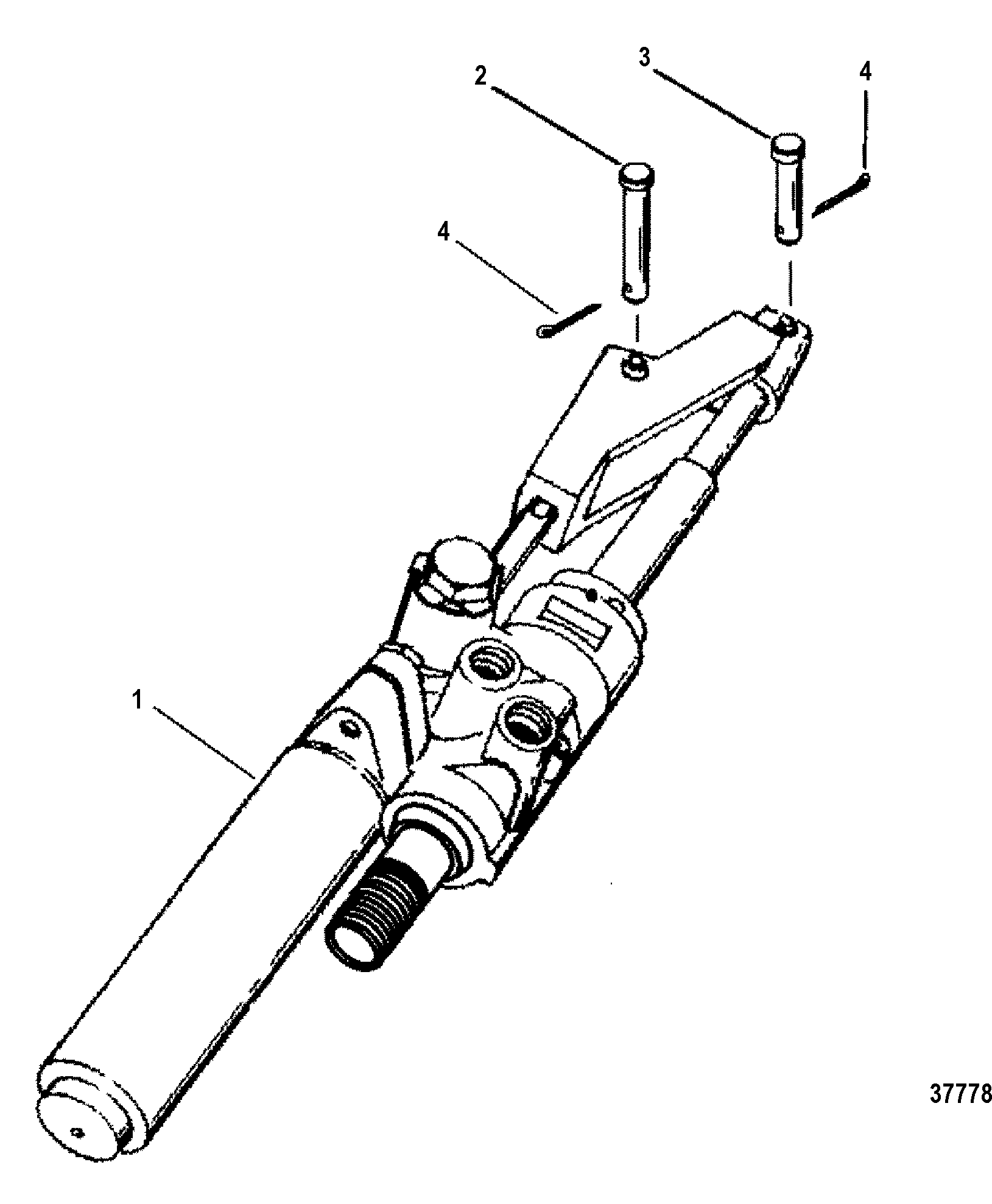

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Counter Rotation)
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Seal Kit, Driveshaft Housing
- Seal Kit, Gear Housing
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Note: COMPONENT PARTS ARE NOT SOLD SEPARATELY | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865383A02 | ACTUATOR ASSEMBLY, Power Steering | 1 | 806034A1 | (SEE NOTE) | ||||
| 2 | 17-15878 | PIN, Clevis | 1 | (LONG) | |||||
| 3 | 17-16419 | PIN, Clevis | 1 | (SHORT) | |||||
| 4 | 18-46950 | COTTER PIN | 2 | ||||||
