Alpha One (Gen. II) 1996-1997 - Serial 0F680000 Thru 0K999999 - Stern Drive Unit Chart

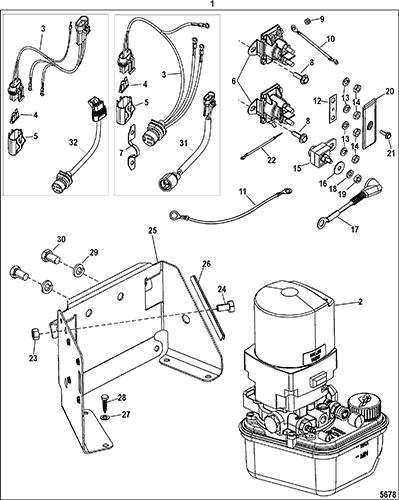

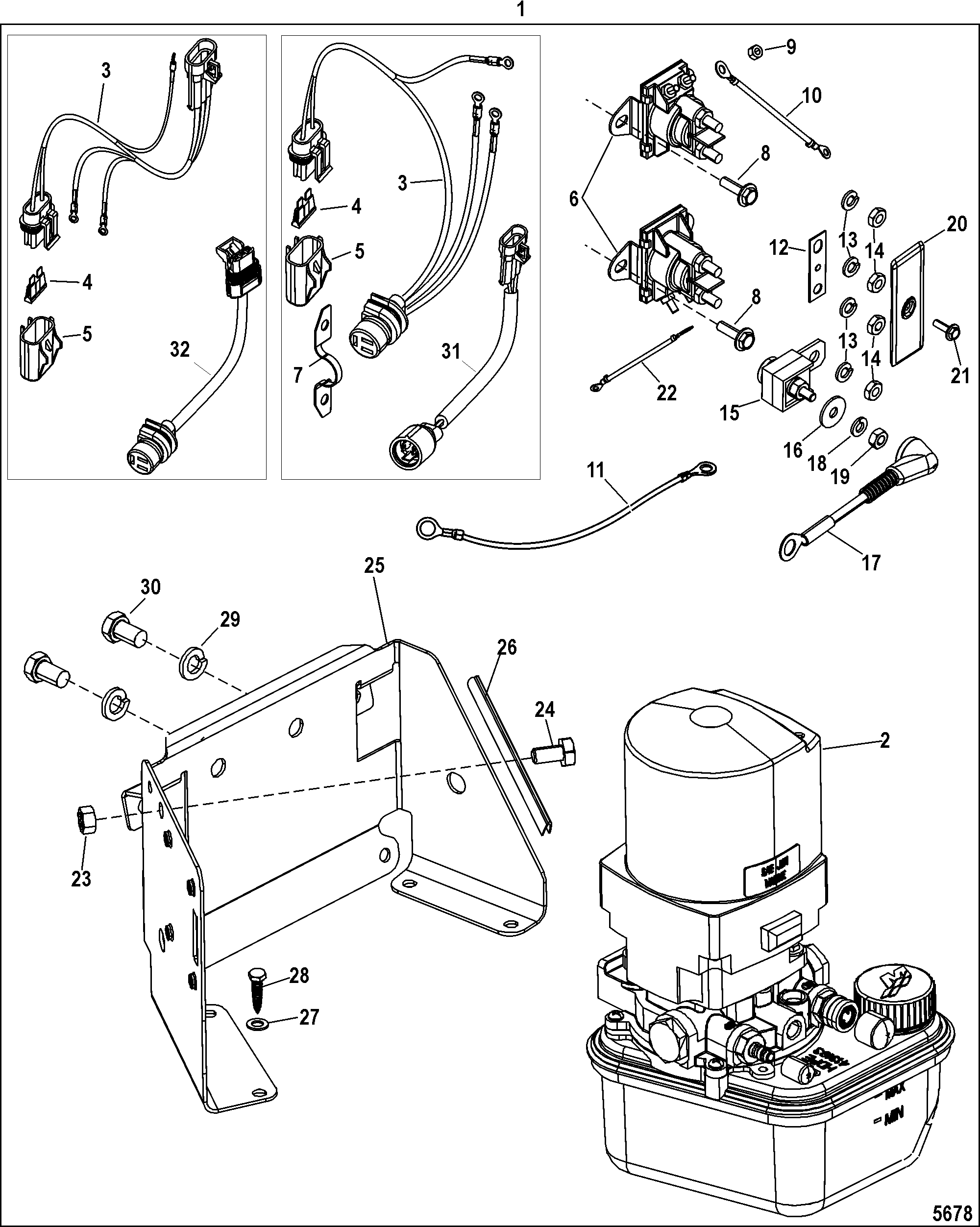

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Counter Rotation)
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Seal Kit, Driveshaft Housing
- Seal Kit, Gear Housing
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Note: FOR REPLACEMENT OF DRIVESHAFT HOUSING ASSEMBLY, COMPLETE AND GEAR HOUSING ASSEMBLY, COMPLETE | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 5-5121700TP | STERN DRIVE UNIT | 1 | 5-5010240JP | (2.40)(STANDARD ROTATION ONLY) | ||||
| - | 5-5121600TP | STERN DRIVE UNIT | 1 | 5-5010194JP | (1.94) | ||||
| - | 5-5111600TP | STERN DRIVE UNIT | 1 | 5-5000194JP | (1.94)(COUNTER ROTATION) | ||||
| - | 5-5121400TP | STERN DRIVE UNIT | 1 | 5-5010181JP | (1.81) | ||||
| - | 5-5111400TP | STERN DRIVE UNIT | 1 | 5-5000181JP | (1.81)(COUNTER ROTATION) | ||||
| - | 5-5121300TP | STERN DRIVE UNIT | 1 | 5-5010162JP | (1.62) | ||||
| - | 5-5111300TP | STERN DRIVE UNIT | 1 | 5-5000162JP | (1.62)(COUNTER ROTATION) | ||||
| - | 5-5121200TP | STERN DRIVE UNIT | 1 | 5-5010147JP | (1.47) | ||||
| - | 5-5111200TP | STERN DRIVE UNIT | 1 | 5-5000147JP | (1.47)(COUNTER ROTATION) | ||||
