Alpha One (Gen. II) 1996-1997 - Serial 0F680000 Thru 0K999999 - Transom Plate And Shift Cable

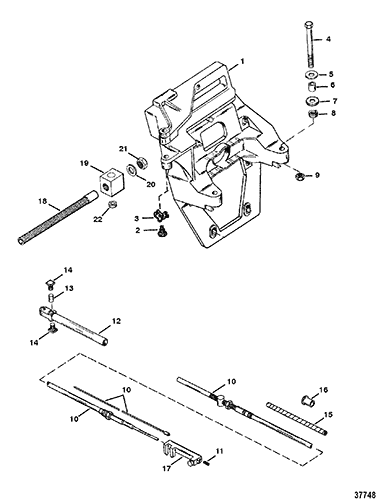

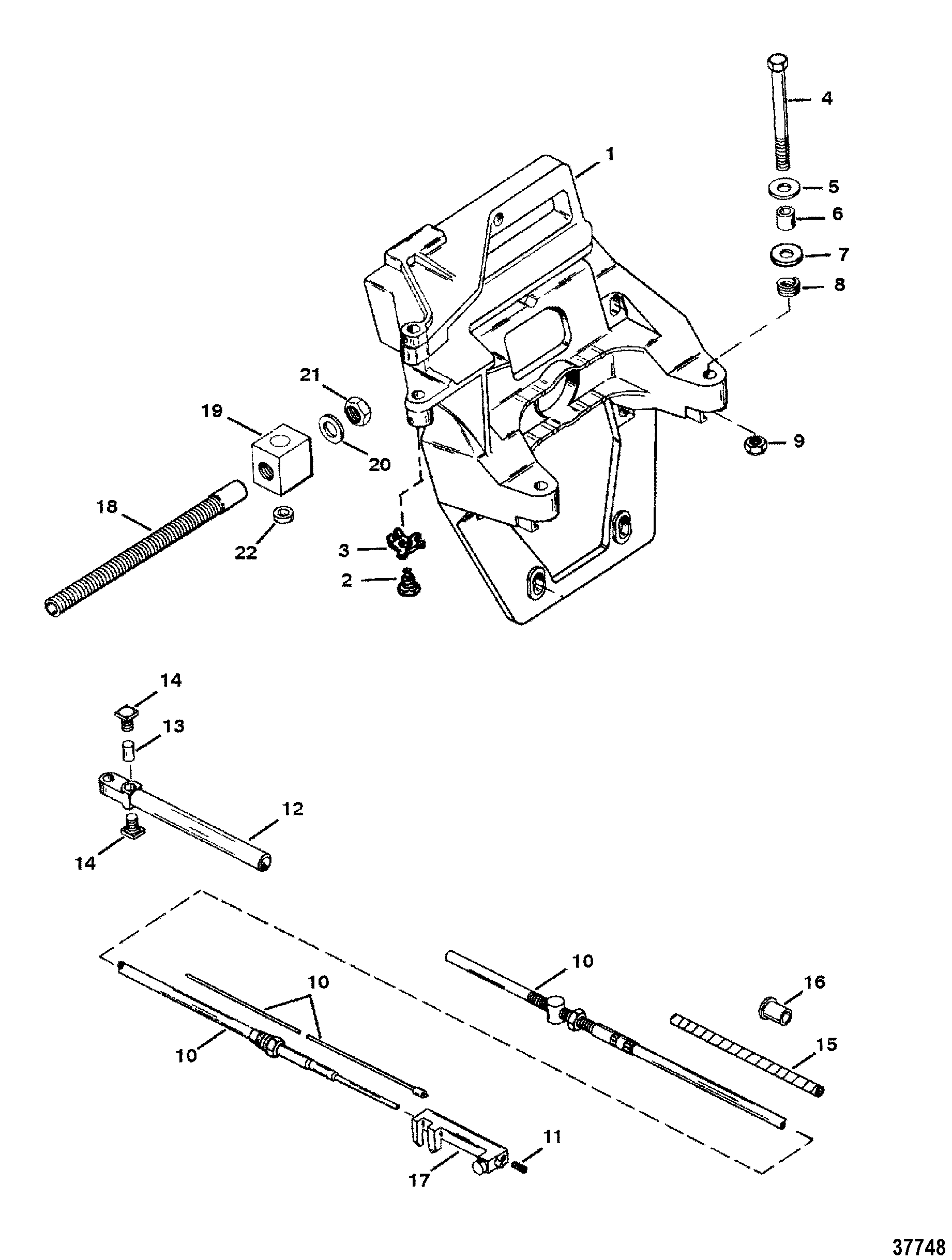

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Counter Rotation)
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Seal Kit, Driveshaft Housing
- Seal Kit, Gear Housing
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 44117A8 | PLATE ASSEMBLY, Transom | 1 | ||||||
| 2 | 10-42253 | BOLT | 2 | ||||||
| 3 | 14-42254 | WASHER | 2 | ||||||
| 4 | 10-97934 | SCREW, (.500-20 x 5.370) Special | 2 | ||||||
| 5 | 12-35777 | WASHER, (.5156 x 1.375 x .125) Aluminium | 2 | ||||||
| 6 | 23-99299 | SPACER, (.520 x .870 x .630) | 2 | ||||||
| 7 | 12-32834 | WASHER, (.9375 x 1.750 x .172) | 2 | ||||||
| 8 | 13-33734 | LOCKWASHER, (.500) | 2 | ||||||
| 9 | 11-863332 | NUT, (.500-20) | 2 | 11-99298 | |||||
| 10 | 865436A02 | CABLE ASSEMBLY, Shift | 1 | 19543A4 | |||||
| 11 | 10-31700 | SCREW, (.250-28 x .750) | 1 | ||||||
| - | 43433A01 | GUIDE KIT | 1 | ||||||
| 12 | 43433 | GUIDE | 1 | ||||||
| 13 | 43436 | ANCHOR | 1 | ||||||
| 14 | 10-20518 | SET SCREW, (#8-32) | 2 | ||||||
| 15 | 38473 | WRAPPING, Spiral | 1 | ||||||
| 16 | 14705 | INSERT | 1 | ||||||
| 17 | 8507522 | SLIDE | 1 | 33981T1 | |||||
| 18 | 96400 | TUBE, Steering | 1 | NON POWER STEERING | |||||
| 19 | 95846 | SWIVEL BLOCK | 1 | NON POWER STEERING | |||||
| 20 | 12-37985 | WASHER | 1 | This Part is No Longer Available NON POWER STEERING | |||||
| 21 | 11-37984 | NUT, (.875-14) | 1 | NON POWER STEERING | |||||
| 22 | 23-95803 | BUSHING | 2 | NON POWER STEERING |
