NXT1 Drive - Serial 0M954569 and Up - Bell Housing Assembly

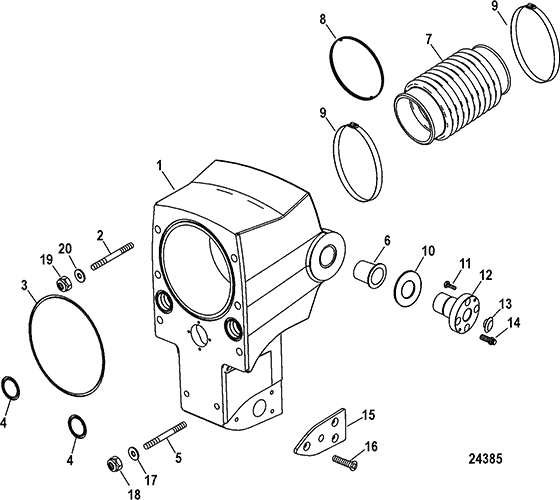

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing Assembly
- Connector Blocks And Hydraulic Hoses
- Drive Spacer Kit
- Driveline Kit (NXT1)
- Driveline-NXT
- Gear Housing Assembly
- Gear Housing Assembly (Driveshaft)
- Gear Housing Assembly (Propshaft)
- Gimbal Ring Components
- Mercathode
- Outer Transom Assembly
- Steering Cylinder Components
- Steering Indicator Kit
- Support Housing(Driveline)
- Tool List (NXT1 Drive - Lower)
- Tool List (NXT1 Drive - Transom)
- Tool List (NXT1 Drive - Upper)
- Trim And Steering Cylinders
- Trim Cylinder Components
- Trim Pump Assembly
- U Joint Assembly
- Upper Housing Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 841960T01 | BELL HOUSING ASSEMBLY | 1 | 841960A01 | |||||
| 1 | 8M0046329 | BELL HOUSING ASSEMBLY, Anodized | 1 | ||||||
| 2 | 16-846389 | STUD, (.625-11/.625-18 x 3.310) | 6 | ||||||
| 3 | 25-846363 | O-RING, (7.262 x .120) | 1 | ||||||
| 4 | 25-457101 | 525-25-457101 | O-RING, (1.424 x .103) | 2 | |||||
| 5 | 16-8M0007427 | STUD, (.500-13/.500-20 x 2.440) | 2 | ||||||
| 6 | 23-846915 | BEARING | 2 | ||||||
| 7 | 846302A1 | BELLOWS ASSEMBLY | 1 | ||||||
| 8 | 24-846421 | SPRING, Inside Bellows | 1 | ||||||
| 9 | 54-846428 | CLAMP, Worm Drive | 2 | ||||||
| 10 | 12-8M0063236 | THRUST WASHER, (1.25 x 2.125 x .0585) Plastic | 2 | 8M0007180 | |||||
| 11 | 10-69022 | SCREW, (#10-32 x .500) Stainless Steel | 1 | ||||||
| 12 | 846433 | PIN, Hinge | 2 | ||||||
| 13 | 19-846643 | PLUG | 2 | ||||||
| 14 | 10-846498 | SCREW, (.312-18 x .750) Stainless Steel | 8 | ||||||
| 15 | 8M0000691 | WEAR PAD, Tilt Housing Thrust | 2 | ||||||
| 15 | 8M0039046 | WEAR PAD, Tilt Housing Thrust, ECP | 2 | ||||||
| 16 | 10-11601 | SCREW, (.312-18 x .750) Stainless Steel | 6 | ||||||
| 17 | 12-846377 | WASHER, (.531 x 1.06 x .095) Stainless Steel | 2 | ||||||
| 18 | 11-826709117 | NUT, (.500-20) Stainless Steel | 2 | ||||||
| 19 | 11-47379 | NUT, (.625-18) Stainless Steel | 6 | ||||||
| 20 | 12-846378 | WASHER, (.688 x 1.00 x .120) Stainless Steel | 6 |
