NXT1 Drive - Serial 0M954569 and Up - Outer Transom Assembly

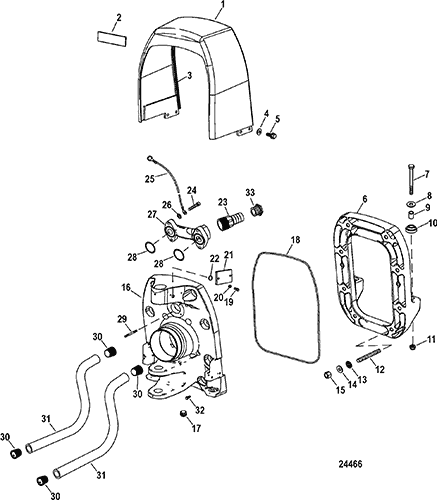

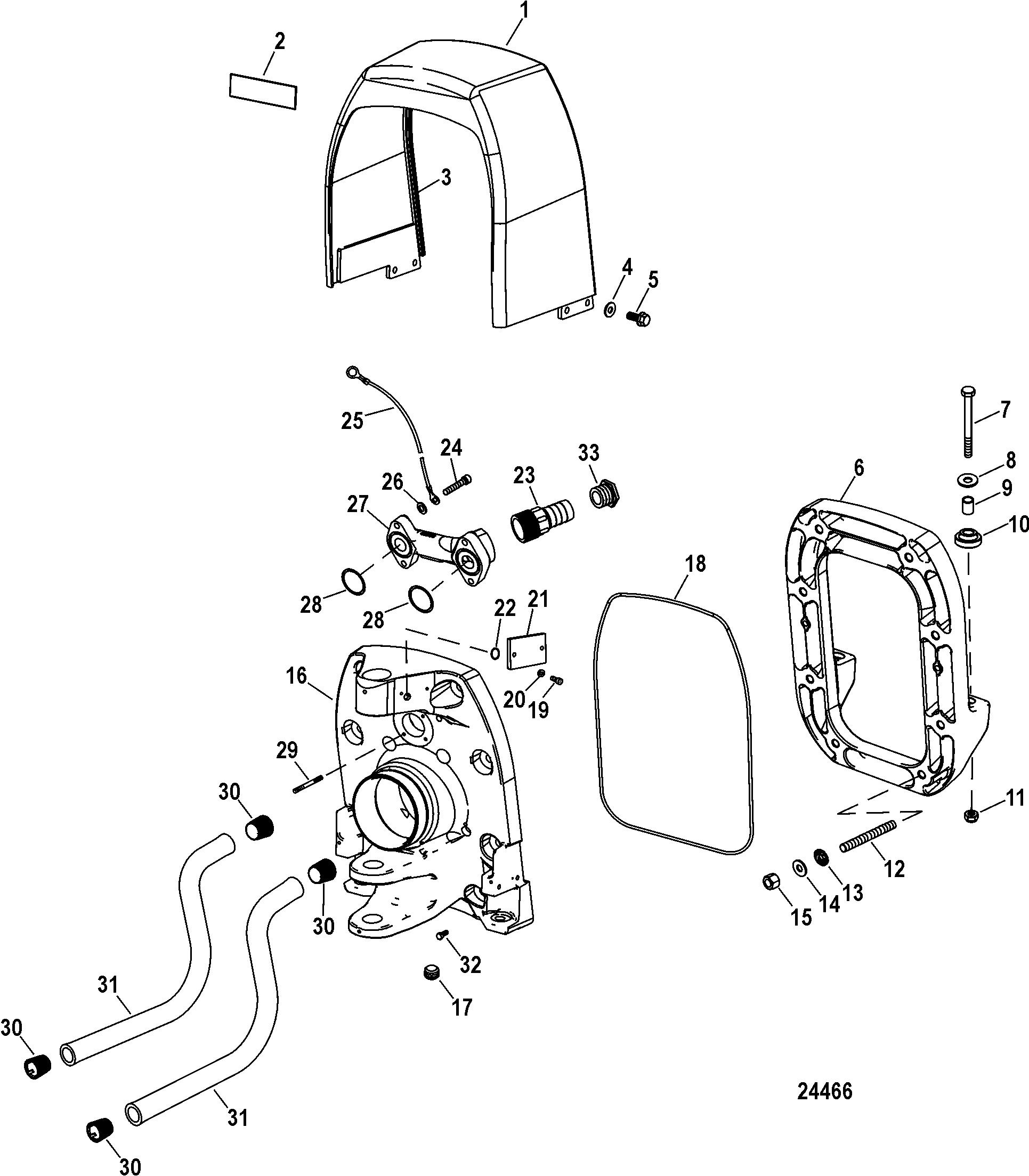

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing Assembly
- Connector Blocks And Hydraulic Hoses
- Drive Spacer Kit
- Driveline Kit (NXT1)
- Driveline-NXT
- Gear Housing Assembly
- Gear Housing Assembly (Driveshaft)
- Gear Housing Assembly (Propshaft)
- Gimbal Ring Components
- Mercathode
- Outer Transom Assembly
- Steering Cylinder Components
- Steering Indicator Kit
- Support Housing(Driveline)
- Tool List (NXT1 Drive - Lower)
- Tool List (NXT1 Drive - Transom)
- Tool List (NXT1 Drive - Upper)
- Trim And Steering Cylinders
- Trim Cylinder Components
- Trim Pump Assembly
- U Joint Assembly
- Upper Housing Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0050504 | COWL ASSEMBLY, Transom | 1 | 841959A01 | |||||
| 2 | 37-8M8020346 | DECAL, NXT1 | 1 | ||||||
| 3 | 8M8021103 | EXTRUSION, (3.75 Feet) Rubber | 1 | ||||||
| 4 | 12-823933 | WASHER, (.405 x .760 x .060) Delrin | 4 | ||||||
| 5 | 10-805559 | SCREW, (.375-16 x .875) Stainless Steel | 4 | ||||||
| 6 | 841955001 | TRANSOM PLATE, Inner | 1 | ||||||
| 7 | 10-97934 | 700-19310 | SCREW, (.500-20 x 5.370) Special | 2 | |||||
| 8 | 12-35777 | 700-19320 | WASHER, (.5156 x 1.375 x .125) Aluminium | 2 | |||||
| 9 | 23-99299 | 700-19340 | SPACER, (.520 x .870 x .630) | 2 | |||||
| 10 | 23-8M0000066 | SPACER | 2 | ||||||
| 11 | 11-863332 | 700-19350 | NUT, (.500-20) Aluminium | 2 | |||||
| 12 | 16-846384 | STUD, (.625-11/.625-18 x 5.750) | 8 | ||||||
| 13 | 25-8M0000668 | O-RING, (.600 x .210) | 8 | ||||||
| 14 | 12-47428 | WASHER, (.660 x 1.120 x .141) Stainless Steel | 8 | ||||||
| 15 | 11-47379 | NUT, (.625-18) Stainless Steel | 8 | ||||||
| 16 | 841958A01 | TRANSOM ASSEMBLY, Outer | 1 | ||||||
| 16 | 8M0046327 | TRANSOM ASSEMBLY, Outer, Anodized | 1 | ||||||
| 17 | 22-35052 | PLUG, Pipe (.250-18 x .375) | 5 | ||||||
| 18 | 25-847213 | O-RING, Special | 1 | ||||||
| 19 | 10-842143 | SCREW, (#10-32 x .620) Stainless Steel | 2 | ||||||
| 20 | 12-72761 | WASHER, (.203 x .562 x .060) Stainless Steel | 2 | ||||||
| 21 | 8M0008595 | COVER | 1 | ||||||
| 22 | 25-85045 | O-RING, (.551 x .070) | 1 | ||||||
| 23 | 22-8M0051041 | FITTING | 1 | 22-8625561 | |||||
| 24 | 10-823029 | SCREW, (.312-18 x 1.500) Stainless Steel | 4 | ||||||
| 25 | 84-62826A10 | CABLE ASSEMBLY, Ground (21.00 Inches) Black | 1 | ||||||
| 26 | 12-843108 | WASHER, (.330 x .560 x .060) Stainless Steel | 4 | ||||||
| 27 | 841995001 | MANIFOLD, Water | 1 | ||||||
| 28 | 25-457101 | 525-25-457101 | O-RING, (1.424 x .103) | 2 | |||||
| 29 | 16-846388 | STUD, (.250-28 x 1.750) | 4 | ||||||
| 30 | 41674T | INSERT | 4 | 41674 | |||||
| 31 | 32-8M0005856 | HOSE, Molded - Water Pick Up | 2 | ||||||
| 32 | 10-85486 | SCREW, (.250-20 x .380) Stainless Steel | 2 | ||||||
| 33 | 22-8M0022461 | PLUG, (1.250 x 2.00) Hex Head | OPT |
