NXT1 Drive - Serial 0M954569 and Up - Tool List (NXT1 Drive - Lower)

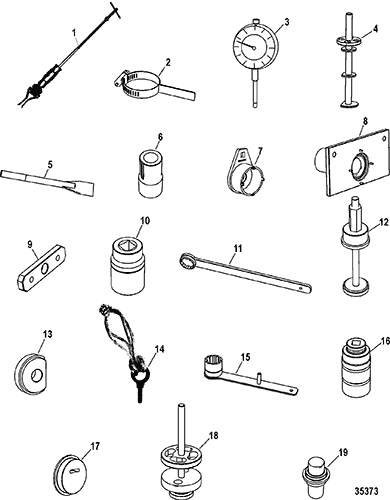

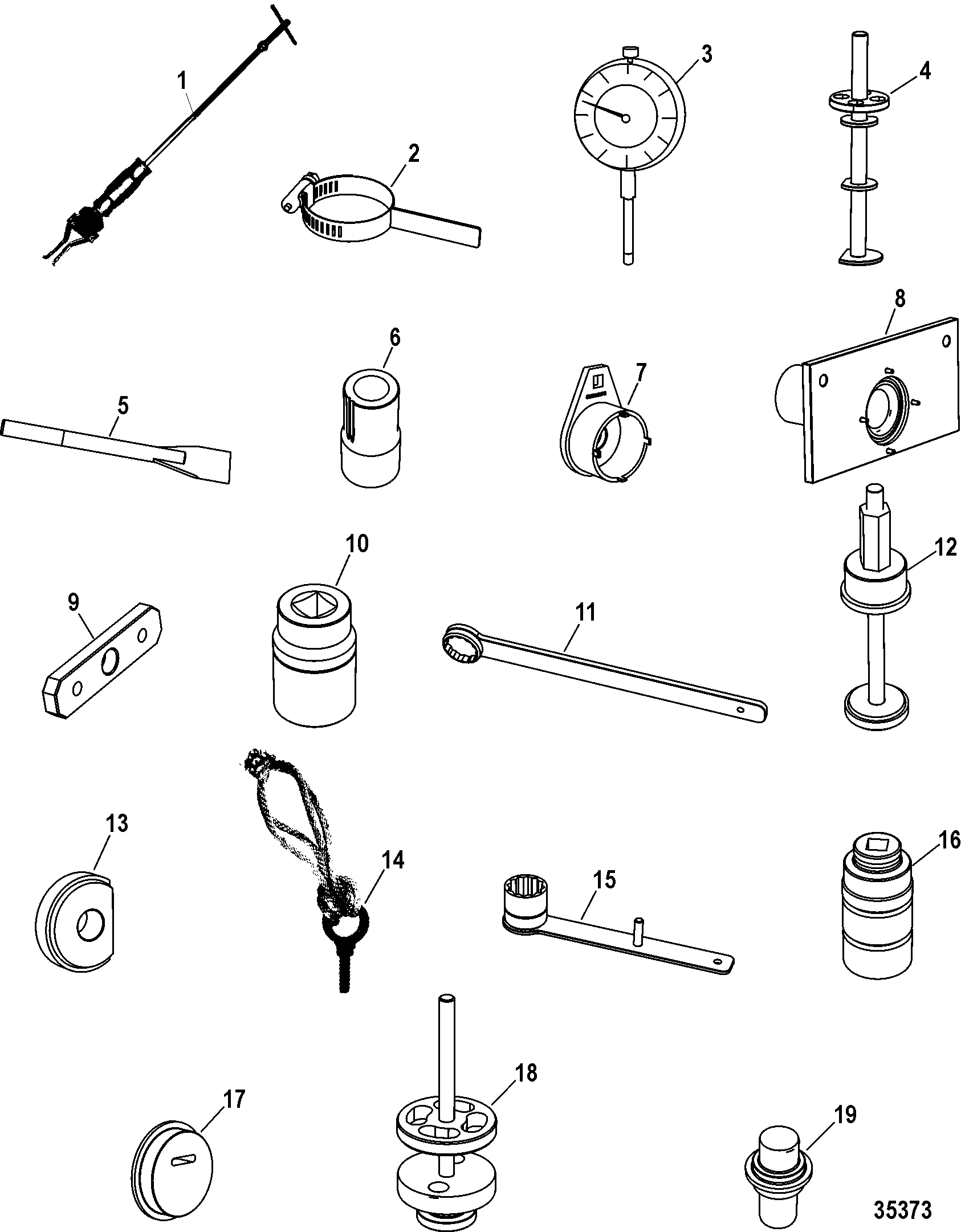

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing Assembly
- Connector Blocks And Hydraulic Hoses
- Drive Spacer Kit
- Driveline Kit (NXT1)
- Driveline-NXT
- Gear Housing Assembly
- Gear Housing Assembly (Driveshaft)
- Gear Housing Assembly (Propshaft)
- Gimbal Ring Components
- Mercathode
- Outer Transom Assembly
- Steering Cylinder Components
- Steering Indicator Kit
- Support Housing(Driveline)
- Tool List (NXT1 Drive - Lower)
- Tool List (NXT1 Drive - Transom)
- Tool List (NXT1 Drive - Upper)
- Trim And Steering Cylinders
- Trim Cylinder Components
- Trim Pump Assembly
- U Joint Assembly
- Upper Housing Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 91-34569A1 | PULLER ASSEMBLY, Slide Hammer | 1 | ||||||
| 2 | 91-847420 | INDICATOR TOOL | 1 | ||||||
| 3 | 91-58222A1 | DIAL INDICATOR TOOL | 1 | ||||||
| 4 | 8M0050787 | GAGE TOOL, Pinion Height | 1 | 91-848035 | |||||
| 5 | 8M0050817 | REMOVAL TOOL, Pinion Bearing Cup | 1 | 91-847475 | |||||
| 6 | 841972T | ADAPTOR, Propshaft | 1 | ||||||
| 7 | 91-899898T13 | RETAINER NUT TOOL, Gear Housing | 1 | ||||||
| 8 | 91-899898T14 | FIXTURE TOOL, Propshaft | 1 | ||||||
| 9 | 91-8M0008078 | HANDLE TOOL, Oil Pump, Install And Remove | 1 | ||||||
| 10 | 8M0050779 | SOCKET TOOL, Driveshaft Spline | 1 | 91-847440 | |||||
| 11 | 8M0050694 | WRENCH TOOL, Pinion Nut | 1 | 91-847450 | |||||
| 12 | 91-847441A01 | PULLER TOOL, Pinion Bearing Cup | 1 | ||||||
| 13 | 8M0050505 | INSTALLER TOOL, Bearing Cup | 1 | 91-847471 | |||||
| 14 | 10-814411 | EYE BOLT | 1 | ||||||
| 15 | 91-847589T | WRENCH TOOL, Driveshaft Nut | 1 | ||||||
| 16 | 91-899898T15 | SOCKET TOOL, Gear Housing, Front Propshaft Nut | 1 | ||||||
| 17 | 91-8M0011399 | WRENCH HOLDER TOOL, Pinion Nut | 1 | ||||||
| 18 | 91-899898T16 | GAUGE TOOL, Shimming - Gear Housing, Pinion Location | 1 | ||||||
| 19 | 91-899898T17 | INSTALLER TOOL, Seal, Carrier | 1 |
