NXT1 Drive - Serial 0M954569 and Up - Steering Indicator Kit

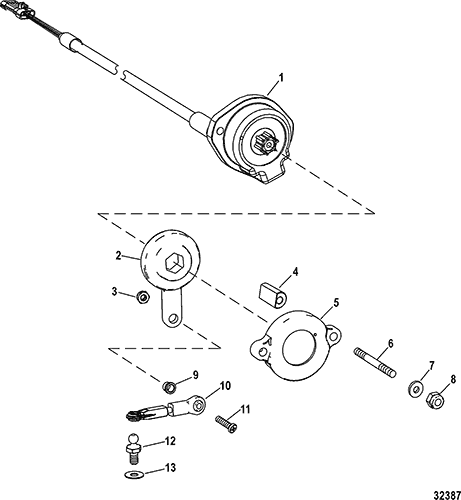

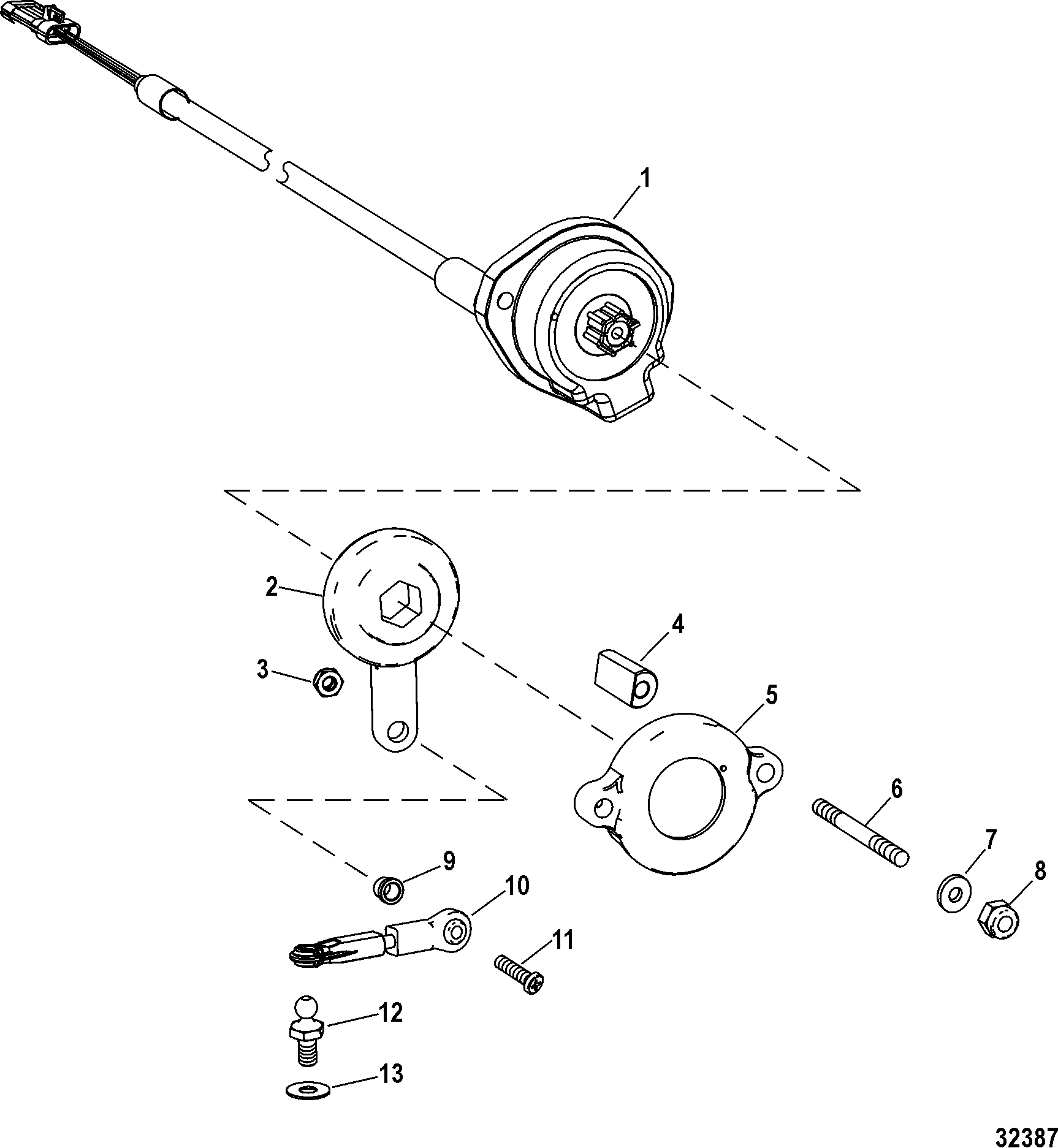

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing Assembly
- Connector Blocks And Hydraulic Hoses
- Drive Spacer Kit
- Driveline Kit (NXT1)
- Driveline-NXT
- Gear Housing Assembly
- Gear Housing Assembly (Driveshaft)
- Gear Housing Assembly (Propshaft)
- Gimbal Ring Components
- Mercathode
- Outer Transom Assembly
- Steering Cylinder Components
- Steering Indicator Kit
- Support Housing(Driveline)
- Tool List (NXT1 Drive - Lower)
- Tool List (NXT1 Drive - Transom)
- Tool List (NXT1 Drive - Upper)
- Trim And Steering Cylinders
- Trim Cylinder Components
- Trim Pump Assembly
- U Joint Assembly
- Upper Housing Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 8M8021162 | INDICATOR KIT, Steering | 1 | ||||||
| 1 | 8M0008867 | SENSOR ASSEMBLY, Steering Indicator | 1 | ||||||
| 2 | 840845 | ARM, Actuator | 1 | ||||||
| 3 | 11-859124 | 676-9-78125 | 700-21161 | NUT, (#10-32) Stainless Steel | 1 | ||||
| 4 | 23-8M0010644 | SPACER, (.201 x .500 x .850) Black | 2 | ||||||
| 5 | 8M0010642 | COVER, Steering Indicator Sensor - Black | 1 | ||||||
| 6 | 16-8M0010672 | STUD, (#10-32 x 2.06) Stainless Steel | 2 | ||||||
| 7 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 2 | ||||||
| 8 | 11-859124 | 676-9-78125 | 700-21161 | NUT, (#10-32) Stainless Steel | 2 | ||||
| 9 | 23-8M0010674 | SPACER, (.201 x .250) Black | 1 | ||||||
| 10 | 8M0024810 | LINK ROD ASSEMBLY | 1 | ||||||
| 11 | 10-96113 | SCREW, (#10-32 x .880) Stainless Steel | 1 | ||||||
| 12 | 8M0009026 | BALL, (.250-28 x 1.00) Stainless Steel | 1 | ||||||
| 13 | 12-69056 | WASHER, (.255 x .620 x .030) Stainless Steel | 1 |
