NXT1 Drive - Serial 0M954569 and Up - Tool List (NXT1 Drive - Upper)

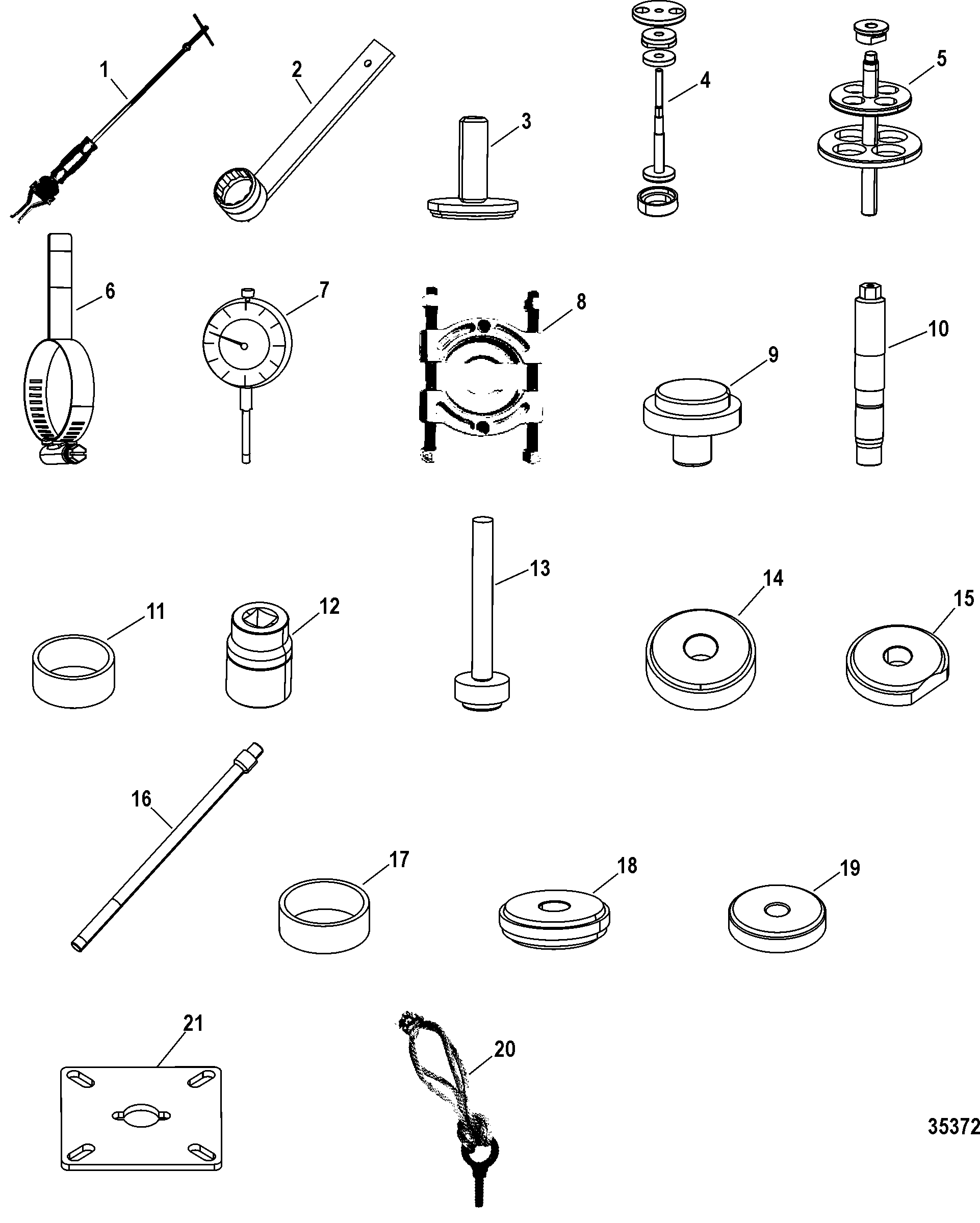

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing Assembly
- Connector Blocks And Hydraulic Hoses
- Drive Spacer Kit
- Driveline Kit (NXT1)
- Driveline-NXT
- Gear Housing Assembly
- Gear Housing Assembly (Driveshaft)
- Gear Housing Assembly (Propshaft)
- Gimbal Ring Components
- Mercathode
- Outer Transom Assembly
- Steering Cylinder Components
- Steering Indicator Kit
- Support Housing(Driveline)
- Tool List (NXT1 Drive - Lower)
- Tool List (NXT1 Drive - Transom)
- Tool List (NXT1 Drive - Upper)
- Trim And Steering Cylinders
- Trim Cylinder Components
- Trim Pump Assembly
- U Joint Assembly
- Upper Housing Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 91-34569A1 | PULLER ASSEMBLY, Slide Hammer | 1 | ||||||
| 2 | 8M0050763 | WRENCH TOOL, Pinion Nut | 1 | 91-847437 | |||||
| 3 | 8M0050780 | REMOVAL TOOL, Driven Gear Retainer | 1 | 91-847446 | |||||
| 4 | 91-847482A01 | GAGE ASSEMBLY TOOL, Upper Pinion Drive Gear Position | 1 | ||||||
| 5 | 91-848479A01 | GAGE ASSEMBLY TOOL, Upper Driven Gear Position | 1 | ||||||
| 6 | 91-847420 | INDICATOR TOOL | 1 | ||||||
| 7 | 91-58222A1 | DIAL INDICATOR TOOL | 1 | ||||||
| 8 | 91-37241 | 700-90150 | PULLER PLATE | 1 | |||||
| 9 | 8M0050778 | PRESSING TOOL, Seal | 1 | 91-847426 | |||||
| 10 | 8M0050738 | INDICATOR TOOL, Upper Driven Shaft | 1 | 91-848480 | |||||
| 11 | 8M0050783 | SPACER TOOL | 1 | 91-847421 | |||||
| 12 | 8M0050508 | SOCKET TOOL, Driveline Spline | 1 | 91-847439 | |||||
| 13 | 8M0050759 | INSTALLER TOOL, Seal | 1 | 91-847453 | |||||
| 14 | 8M0050835 | DRIVER TOOL, Bearing Cup | 1 | 91-847577 | |||||
| 15 | 8M0050818 | DRIVER TOOL, Bearing Cup | 1 | 91-847574 | |||||
| 16 | 8M0050777 | HANDLE TOOL, Bearing Cup Driver | 1 | 91-847452 | |||||
| 17 | 91-847422 | SPACER TOOL | 1 | ||||||
| 18 | 8M0050816 | DRIVER TOOL, Bearing Cup | 1 | 91-847470 | |||||
| 19 | 8M0050790 | DRIVER TOOL, Bearing Cup | 1 | 91-847473 | |||||
| 20 | 10-814411 | EYE BOLT | 1 | ||||||
| 21 | 8M0050740 | CENTERING TOOL, Upper Pinion | 1 | 91-847480 |
