500 EFI - Serial 0L001496 Thru 0L306499 - Electrical Components

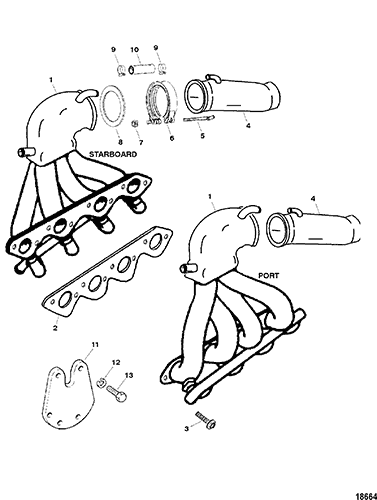

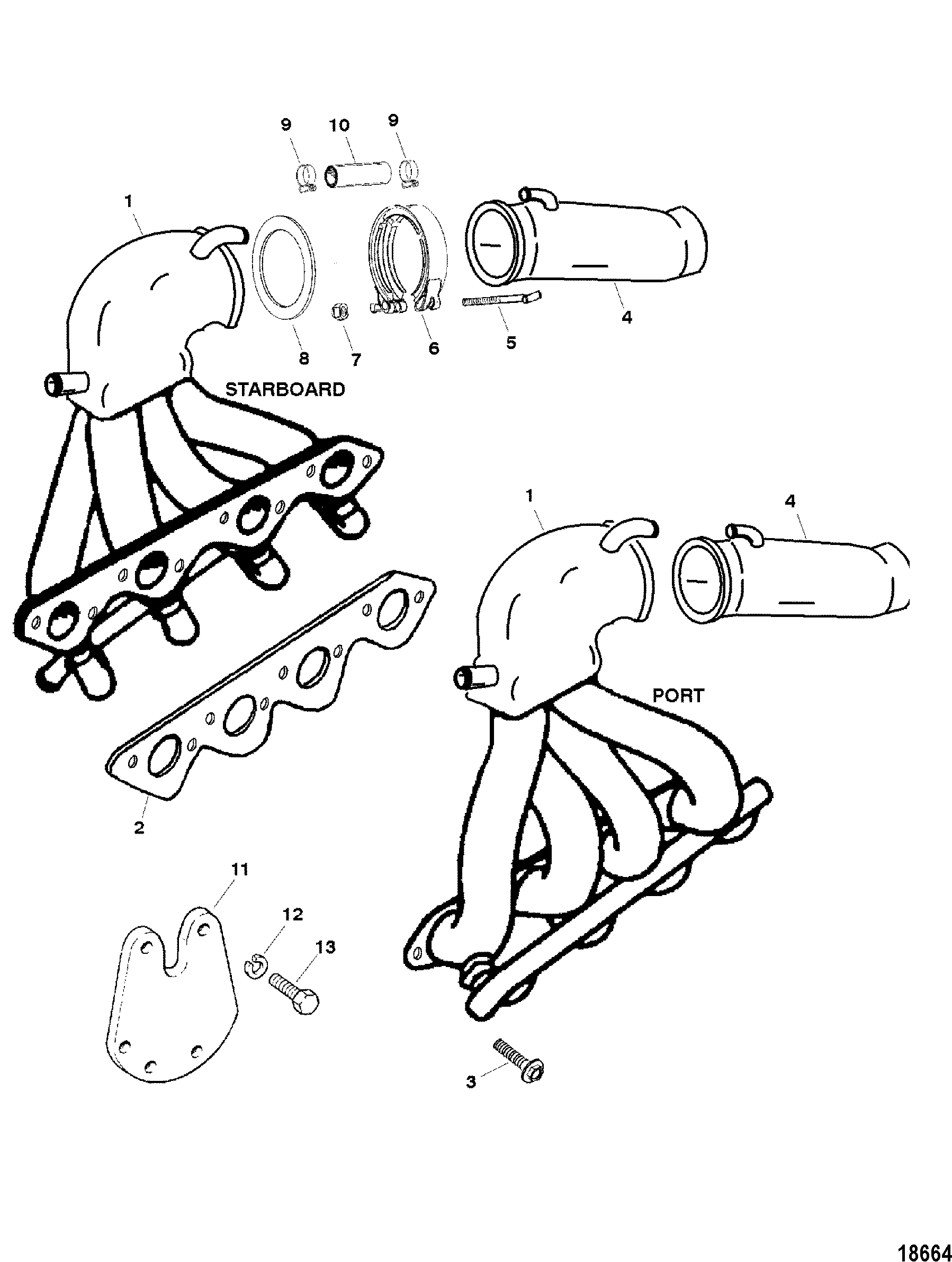

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header And Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Harness Assembly-EFI Wiring
- Intake Manifold And Intake Plenum
- Mount Plate-Engine
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Bravo)
- Starter And Alternator Mount
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 848731A2 | HEADER ASSEMBLY, Exhaust | 1 | Port | ||||||
| 1 | 848736A2 | HEADER ASSEMBLY, Exhaust | 1 | Starboard | ||||||
| 2 | 27-841234 | GASKET, Exhaust Header | 2 | 2 | ||||||
| 3 | 10-821131 | SCREW, (.375-16 x 1.00) | 16 | |||||||
| 4 | 848739A1 | TAILPIPE ASSEMBLY | 1 | This Part is No Longer Available - Port - Bravo Models | ||||||
| 4 | 848735A1 | TAILPIPE ASSEMBLY | 1 | This Part is No Longer Available - Starboard - Bravo Models | ||||||
| 5 | 10-848886 | T BOLT, (.250-20) | 2 | |||||||
| 6 | 54-848885 | CLAMP, Band Style | 2 | |||||||
| 7 | 11-8267098 | NUT, (.250-20) | 2 | 11-56374 | ||||||
| 8 | 27-848254 | GASKET, Tailpipe | 2 | |||||||
| 9 | 54-180763 | CLAMP, Worm Gear | 4 | |||||||
| 10 | 32-848884 | HOSE, Jumper (5.00 Inches) | 2 | |||||||
| 11 | 861776A2 | PLATE KIT, Exhaust Blockoff | 1 | |||||||
| 12 | 13-41471 | LOCKWASHER, (.375) | 4 | |||||||
| 13 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 4 | ||||
| - | 27-842129A1 | GASKET/SEAL SET, Engine Overhaul | 1 |
