500 EFI - Serial 0L001496 Thru 0L306499 - Power-Assisted Steering Components

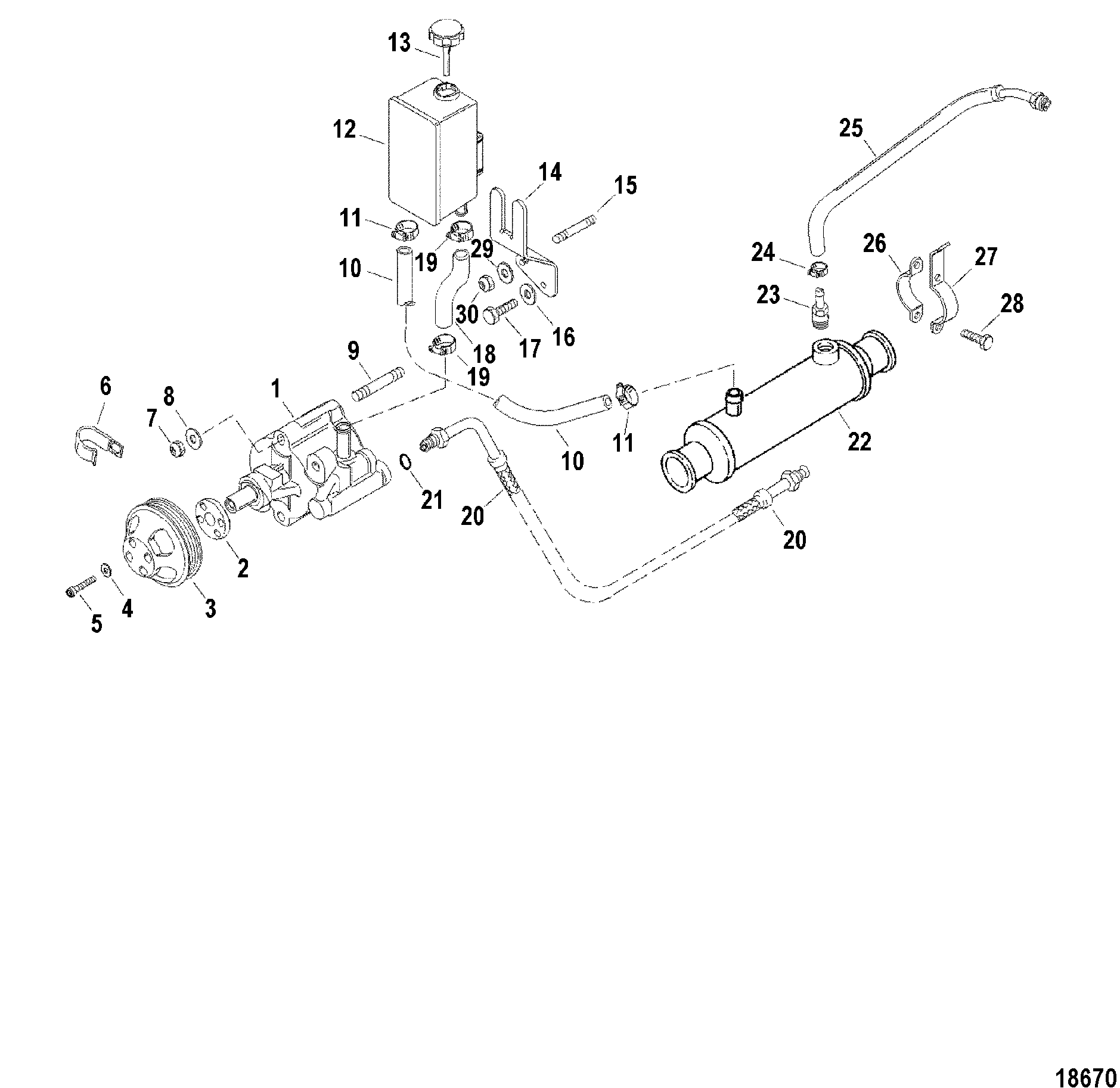

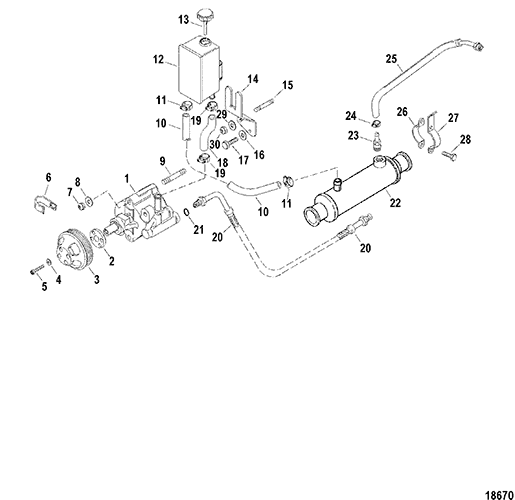

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header And Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Harness Assembly-EFI Wiring
- Intake Manifold And Intake Plenum
- Mount Plate-Engine
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Bravo)
- Starter And Alternator Mount
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849906A14 | PUMP KIT, Power-Assisted Steering - Complete | 1 | 849906A2 | |||||
| 1 | 849906A28 | PUMP ASSEMBLY, Power-Assisted Steering - Black | 1 | ||||||
| 2 | 47530 | HUB, Pump Pulley | 1 | ||||||
| 3 | 849048T | PULLEY, Blue | 1 | ||||||
| 4 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 4 | ||||||
| 5 | 10-849377 | SCREW, (.312-24 x .750) Stainless Steel | 4 | ||||||
| 6 | 54-62494 | CLIP | 1 | ||||||
| 7 | 11-82671013 | NUT, (.375-24) | 2 | 11-34932 | |||||
| 8 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 2 | ||||||
| 9 | 16-849375 | STUD, (.375-24 x 3.750) | 2 | ||||||
| 10 | 32-8M0062341 | HOSE, (53.00 Inches Bulk), Cut 19.50 Inches - Pump To Oil Cooler | 1 | 32-5251914 | |||||
| 11 | 54-815504105 | CLAMP, Worm Gear (11-18 mm) | 2 | ||||||
| 12 | 862752T1 | RESERVOIR | 1 | 849933T | |||||
| 13 | 806216 | CAP | 1 | 840186 | |||||
| 14 | 849298 | BRACKET, Reservoir Mount | 1 | 849298T | |||||
| 15 | 16-842441 | STUD, (.437-14/.437-20 x 2.250) | 1 | ||||||
| 16 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | ||||||
| 17 | 10-94247 | SCREW, (.375-16 x .750) Stainless Steel | 1 | ||||||
| 18 | 32-845620 | HOSE, (10.62 Inches), Reservoir To Pump | 1 | ||||||
| 19 | 54-180761 | CLAMP, Worm Gear | 2 | ||||||
| 20 | 32-98494 | HOSE ASSEMBLY, Hi Pressure - Pump To Booster | 1 | ||||||
| 21 | 25-89879 | O-RING, (.301 x .064) | 1 | ||||||
| 22 | 849291 | COOLER, Power Steering Oil | 1 | ||||||
| 23 | 22-70834 | CONNECTOR, (.375-18) Straight - Brass | 1 | ||||||
| 24 | 54-815504105 | CLAMP, Worm Gear (11-18 mm) | 1 | ||||||
| 25 | 32-9884339 | HOSE ASSEMBLY, (72.00 Inches Bulk), Cut 48.00 Inches - Fitting On One End | 1 | ||||||
| 26 | 563281 | BRACKET, Oil Cooler - Short Style With Weldnut | 1 | ||||||
| 27 | 63820F3 | BRACKET, Oil Cooler - Long Style | 1 | 638203 | |||||
| 28 | 10-817505 | SCREW, (.250-20 x .620) Stainless Steel | 2 | ||||||
| 29 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 1 | ||||||
| 30 | 11-859135 | 676-9-78116 | NUT, (.437-20) | 1 | 11-817618 |
