500 EFI - Serial 0L001496 Thru 0L306499 - Oil Cooler And Oil Filter (Engine)

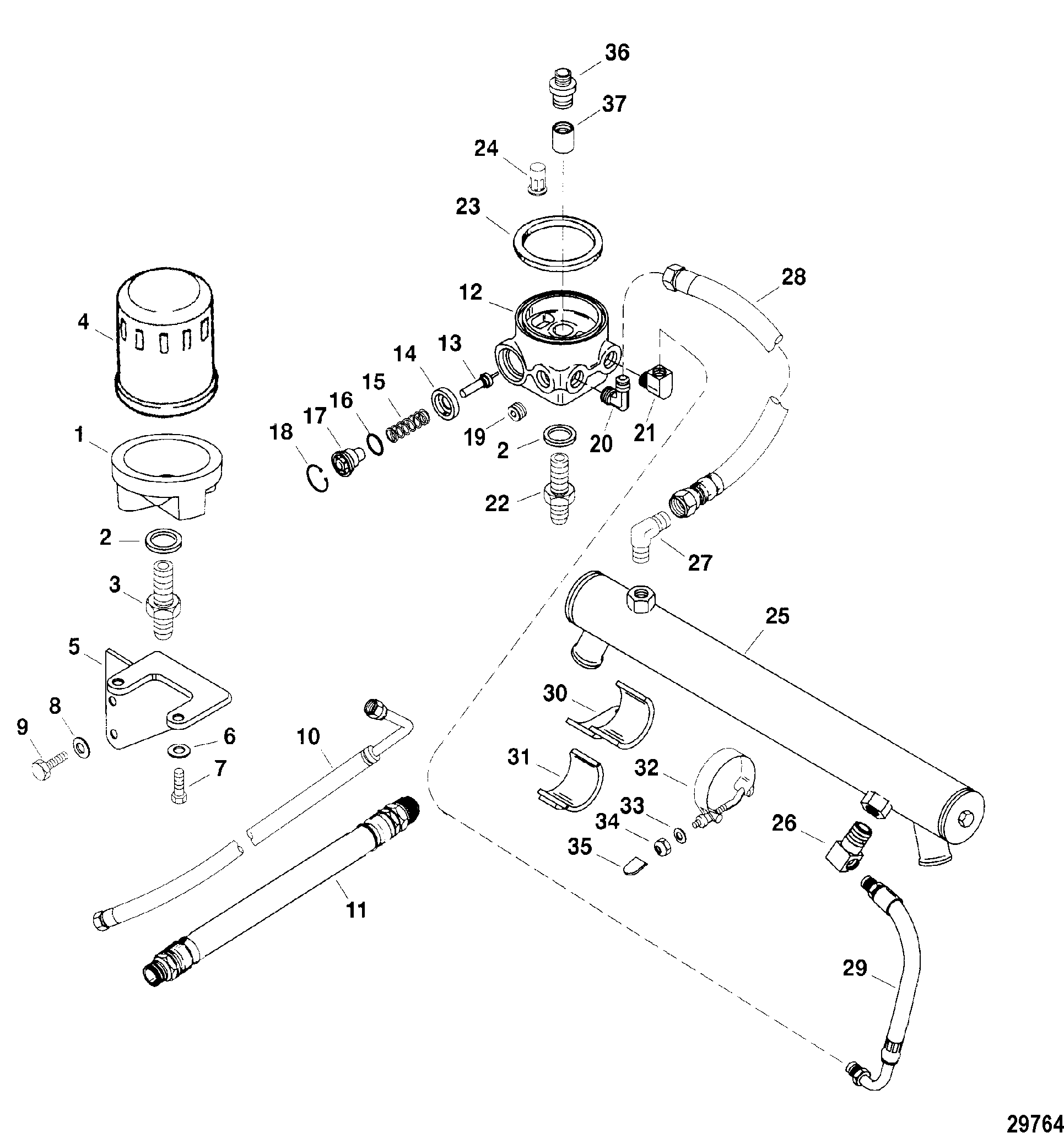

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header And Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Harness Assembly-EFI Wiring
- Intake Manifold And Intake Plenum
- Mount Plate-Engine
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Bravo)
- Starter And Alternator Mount
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 35-806329T | ADAPTOR, Oil Filter | 1 | ||||||
| 2 | 26-42077 | SEAL | 2 | 2 | |||||
| 3 | 22-806328 | FITTING | 1 | ||||||
| 4 | 35-16595Q | FILTER, Oil | 1 | 35-16595T | |||||
| 5 | 849907T | BRACKET, Filter Adaptor | 1 | ||||||
| 6 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 2 | |||||
| 7 | 10-845856 | SCREW, (.312-18 x .750) | 2 | ||||||
| 8 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 2 | ||||||
| 9 | 10-94247 | SCREW, (.375-16 x .750) Stainless Steel | 2 | ||||||
| 10 | 32-849876T | HOSE ASSEMBLY, Oil (34.620 Inches), Filter To Adaptor | 1 | ||||||
| 11 | 32-849883 | HOSE ASSEMBLY, Oil (31.750 Inches), Adaptor To Filter | 1 | 32-849883T | |||||
| 12 | 849885A04 | HOUSING ASSEMBLY, Oil Thermostat | 1 | ||||||
| 12 | 849885T2 | HOUSING, Oil Thermostat | 1 | ||||||
| 13 | 8161631 | THERMOSTAT | 1 | ||||||
| 14 | 849983 | PISTON, Oil Thermostat | 1 | ||||||
| 15 | 24-816162 | SPRING | 1 | ||||||
| 16 | 25-864701 | O-RING, (1.112 x .103) | 1 | 25-47632 | 2 | ||||
| 17 | 8161651 | COVER, Oil Thermostat | 1 | ||||||
| 18 | 53-848571 | RING, Retaining | 1 | ||||||
| 19 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 1 | ||||||
| 20 | 22-706811 | ELBOW, 90 Degree | 1 | ||||||
| 21 | 22-47630 | ELBOW, 90 Degree | 1 | ||||||
| 22 | 22-806328 | FITTING | 1 | ||||||
| 23 | 25-32507 | O-RING, (3.359 x .139) | 1 | 2 | |||||
| 24 | VALVE, Relief | 1 | 5 | ||||||
| 25 | 849952A03 | COOLER, Oil | 1 | 849952T | |||||
| - | 8M0036570 | GASKET | 2 | 27-842785 | |||||
| 26 | 22-47630 | ELBOW, 90 Degree | 1 | ||||||
| 27 | 22-706811 | ELBOW, 90 Degree | 1 | ||||||
| 28 | 32-845126T | HOSE ASSEMBLY, Oil (26.50 Inches), Cooler To Adaptor | 1 | ||||||
| 29 | 32-842496 | HOSE ASSEMBLY, Oil (8.80 Inches), Adaptor To Cooler | 1 | 32-849884T | |||||
| 30 | 849908T | BRACKET, Oil Cooler | 2 | Bravo Models | |||||
| 31 | 845459T | BRACKET, Oil Cooler | 2 | Driveline Models | |||||
| 32 | 54-844664 | CLAMP, T Bolt Band | 2 | ||||||
| 33 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 2 | ||||||
| 34 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 2 | ||||
| 35 | 19-8079923 | COVER, Hose Clamp End - Clamp Stud (.375) | 2 | ||||||
| 36 | 22-805632 | CONNECTOR | 1 | ||||||
| 37 | 22-841870 | CONNECTOR | 1 | ||||||
| - | 27-842129A1 | GASKET/SEAL SET, Engine Overhaul | 1 |
