500 EFI - Serial 0L001496 Thru 0L306499 - Flywheel Housing (Driveline)

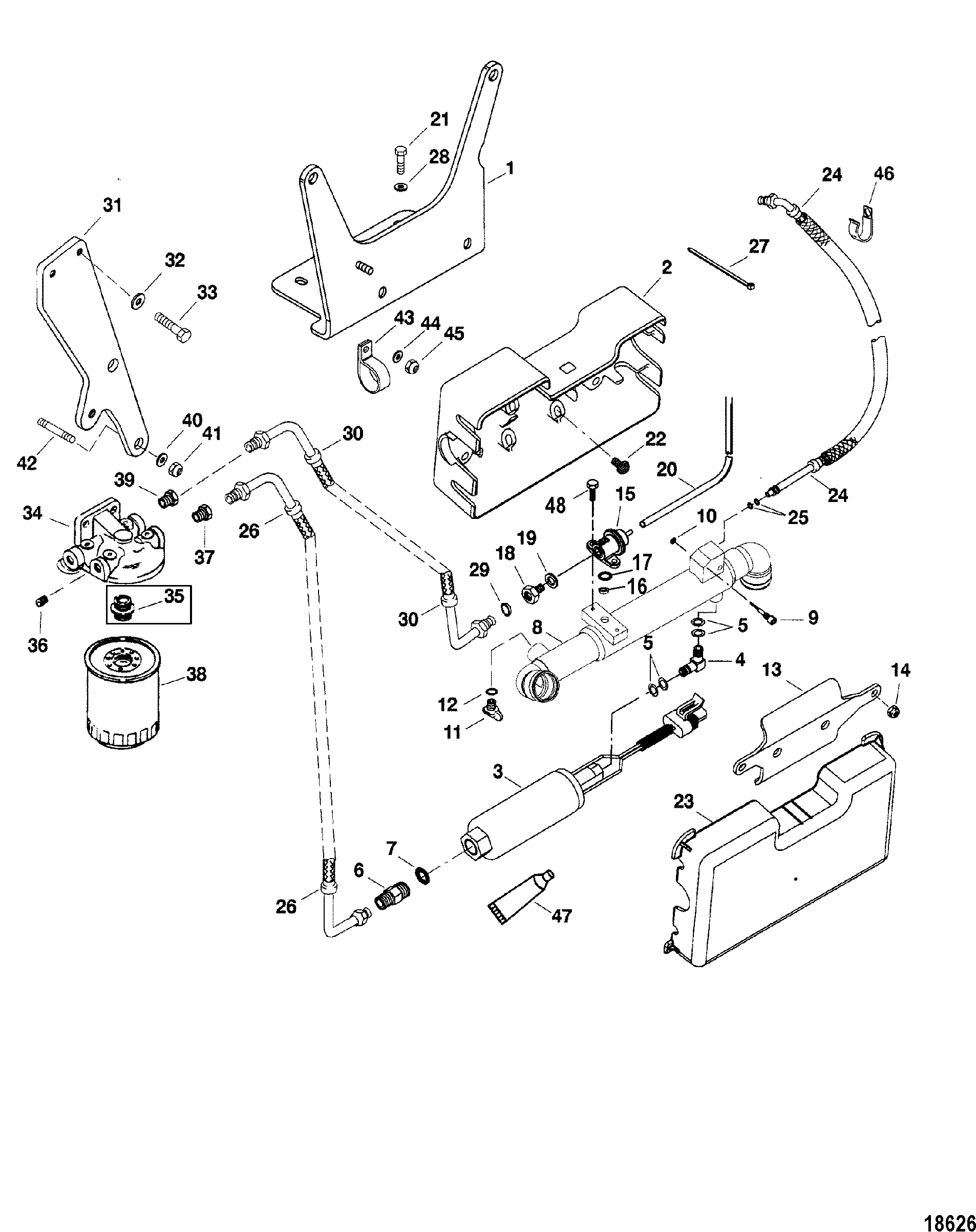

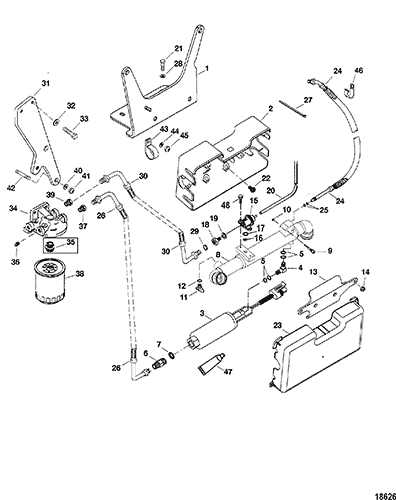

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header And Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Harness Assembly-EFI Wiring
- Intake Manifold And Intake Plenum
- Mount Plate-Engine
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Bravo)
- Starter And Alternator Mount
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0050909 | BRACKET, Fuel Cooler | 1 | 849904T | |||||
| 2 | 807685T3 | INSULATOR, Base | 1 | ||||||
| 3 | 849930T02 | PUMP ASSEMBLY, Fuel, With Reference Numbers 5 And 7 | 1 | 849930T1 | |||||
| 4 | 22-807783A1 | FITTING ASSEMBLY, 90 Degree | 1 | ||||||
| 5 | 25-805063 | O-RING, (.301 x .070) | 4 | 2 | |||||
| 6 | 22-808001A1 | FITTING ASSEMBLY | 1 | ||||||
| 7 | 25-805062 | O-RING, (.530 x .082) | 1 | 2 | |||||
| 8 | 849929A02 | COOLER KIT, Fuel | 1 | 849929A1 | |||||
| 9 | 10-866114 | SCREW, (.250-28) Special | 1 | 10-861303 | |||||
| 10 | 53-861414 | RING, Retaining | 1 | ||||||
| 11 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue, Drain | 1 | 22-806608A1 | |||||
| 12 | 25-32509 | O-RING, (.489 x .070) | 1 | 2 | |||||
| 13 | 807979T | BRACKET | 1 | ||||||
| 14 | 11-29598 | NUT, (.250-28) Stainless Steel | 2 | ||||||
| 15 | 861126A1 | REGULATOR KIT, (43 PSI), Fuel Pressure | 1 | ||||||
| 16 | 35-805406 | FILTER, Fuel Pressure Regulator | 1 | ||||||
| 17 | 25-805531 | O-RING, (.476 x .075) | 1 | ||||||
| 18 | 22-8080021 | FITTING, Stainless Steel | 1 | ||||||
| 19 | 12-36533 | WASHER, (.328 x .562 x .0312) Copper | 1 | ||||||
| 20 | 32-8M0063567 | HOSE, (52.00 Inches Bulk), Cut As Required - To Intake Manifold | 1 | 32-80617379 | |||||
| 21 | 10-64014 | SCREW, (.250-28 x .500) | 4 | ||||||
| 22 | 269011 | BUMPER, Rubber | 8 | ||||||
| 23 | 807930T01 | INSULATOR, Fuel Cooler Cover | 1 | 807930 | |||||
| 24 | 8M0050923 | LINE ASSEMBLY, Fuel, To Fuel Rail | 1 | 32-849891T | |||||
| 25 | 25-805063 | O-RING, (.301 x .070) | 2 | 2 | |||||
| 26 | 32-849871 | LINE ASSEMBLY, Fuel, Seperator To Pump | 1 | 32-849871T | |||||
| 27 | 54-816311T | 700-21465 | TIE STRAP, (8.00 Inches) | AR | |||||
| 28 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 4 | ||||||
| 29 | 27-848438 | GASKET, Flare | 1 | ||||||
| 30 | 32-849870 | LINE ASSEMBLY, Fuel, Regulator To Pump | 1 | 32-849870T | |||||
| 31 | 8492261 | BRACKET, Seperator | 1 | ||||||
| 32 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 2 | ||||||
| 33 | 10-849377 | SCREW, (.312-24 x .750) Stainless Steel | 2 | ||||||
| 34 | 89876A3 | BASE ASSEMBLY, Fuel Filter/Water Seperator | 1 | Design I Or Design II | |||||
| 35 | 22-816133 | FITTING | 1 | 22-8161331 | Design I Screwed In - Design II - Cast In Base | ||||
| 36 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 1 | ||||||
| 37 | 22-808003 | CONNECTOR | 1 | ||||||
| 38 | 35-802893Q01 | FILTER, Fuel/Water Separator | 1 | 35-807172 | |||||
| 39 | 22-33821 | CONNECTOR | 1 | ||||||
| 40 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | ||||||
| 41 | 11-859135 | 676-9-78116 | NUT, (.437-20) | 2 | 11-817618 | ||||
| 42 | 16-579203 | STUD, (.437-14/.437-20 x 2.060) | 1 | ||||||
| 43 | 54-62494 | CLIP, Hose Support | 1 | ||||||
| 44 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | ||||||
| 45 | 11-68411 | NUT, (.375-16) | 1 | No longer made, limited availability | |||||
| 46 | 54-848183 | J CLIP, Port - Fuel Line To Mount | 2 | ||||||
| 47 | 92-805701 | COMPOUND, Heat Transfer (6 Grams) | AR | ||||||
| 48 | 10-852368 | SCREW, (#10-24 x .750) | 2 | ||||||
| - | 27-842129A1 | GASKET/SEAL SET, Engine Overhaul | 1 |
