500 EFI - Serial 0L001496 Thru 0L306499 - Starter Assembly (50-8M8021116)

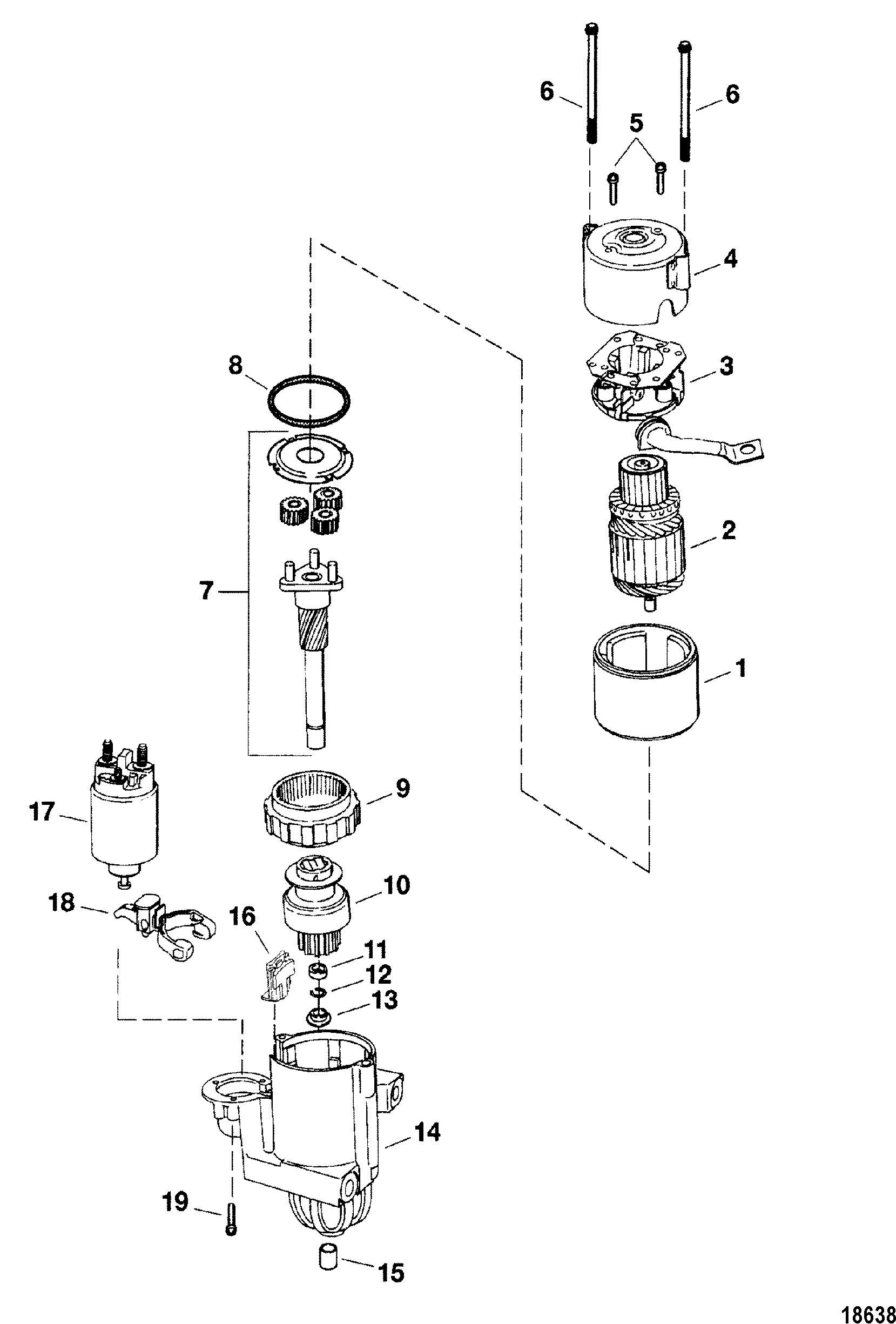

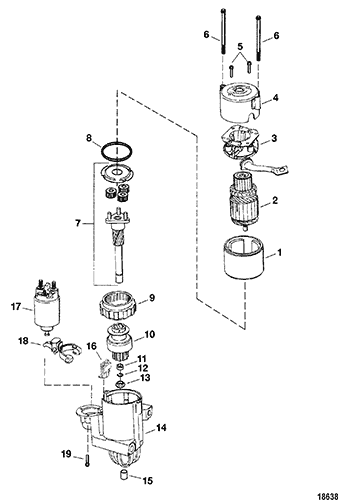

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 50-8M8021116



STARTER MOTOR ASSEMBLY 1
2 NSS



NOT SOLD SEPARATE, Armature 1
This Part is not sold separately
3 NSS



NOT SOLD SEPARATE, Brush And Spring 1   This Part is not sold separately
4 NSS



NOT SOLD SEPARATE, Frame 1
This Part is not sold separately
5 NSS



NOT SOLD SEPARATE, Screw 2   This Part is not sold separately
6 NSS



NOT SOLD SEPARATE, Thru Bolt 2   This Part is not sold separately
7 NSS



NOT SOLD SEPARATE, Shaft and Gear 1   This Part is not sold separately
8 NSS



NOT SOLD SEPARATE, Gasket 1   This Part is not sold separately
9 NSS



NOT SOLD SEPARATE, Gear 1   This Part is not sold separately
10 NSS



NOT SOLD SEPARATE, Drive 1   This Part is not sold separately
11 33291



COLLAR 1
12 53-33290



RING, Retaining 1
13 NSS



NOT SOLD SEPARATE, Thrust Collar 1   This Part is not sold separately
14 NSS



NOT SOLD SEPARATE, Drive Housing Assembly 1   This Part is not sold separately
15 23-814476



BUSHING 1   This Part is No Longer Available
16 NSS



NOT SOLD SEPARATE, Grommet 1   This Part is not sold separately
17 809463A1
676-9-15125 700-72450
SOLENOID KIT 1
18 NSS



NOT SOLD SEPARATE, Lever 1   This Part is not sold separately
19 NSS



NOT SOLD SEPARATE, Screw 3   This Part is not sold separately
