575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Alternator (55 Amp) - Motorola #8MR2039K

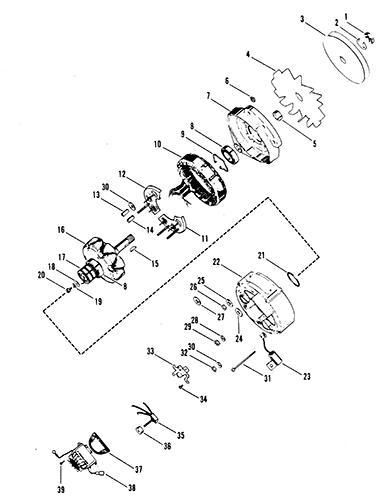

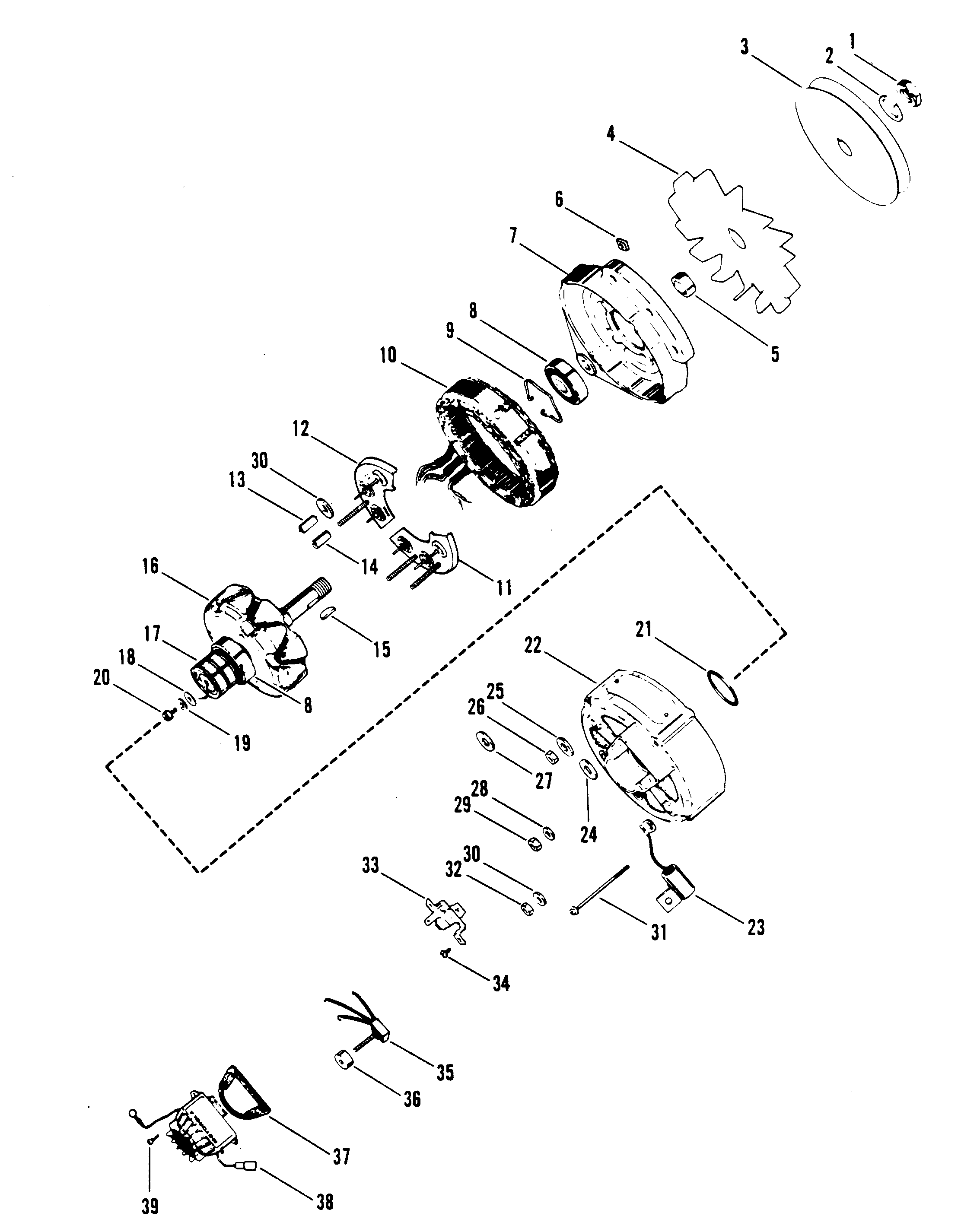

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 817119A4 | 620-3186M | 676-9-19101 | ALTERNATOR ASSEMBLY (55 AMP) | 1 | 92497A3 | |||
| 1 | 390-7027 | NUT, FAN AND PULLEY TO ROTOR | 1 | This Part is No Longer Available | |||||
| 2 | 390-7033 | LOCKWASHER, FAN AND PULLEY NUT | 1 | This Part is No Longer Available | |||||
| 3 | 939362 | PULLEY, DRIVE END FRAME | 1 | 93936 | |||||
| 4 | 390-7004 | FAN, DRIVE END FRAME | 1 | ||||||
| 5 | 813969 | SPACER, FAN TO DRIVE END FRAME | 1 | 390-7012 | This Part is No Longer Available | ||||
| 6 | 390-7028 | NUT, THRU BOLT ATTACHING | 4 | This Part is No Longer Available | |||||
| 7 | 390-7000 | COVER ASSEMBLY, FRONT | 1 | This Part is No Longer Available | |||||
| 8 | 390-7005 | BALL BEARING, DRIVE END | 2 | This Part is No Longer Available | |||||
| 9 | 390-7006 | RETAINER, DRIVE END BALL BEARING | 1 | This Part is No Longer Available | |||||
| 10 | 390-8636 | STATOR ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 11 | 390-7009 | DIODE RECTIFIER, NEGATIVE | 1 | This Part is No Longer Available | |||||
| 12 | 390-7010 | HEAT SINK, POSITIVE | 1 | This Part is No Longer Available | |||||
| 13 | 390-7020 | SLEEVE, INSULATOR | 1 | This Part is No Longer Available | |||||
| 14 | 390-7018 | SLEEVE, INSULATOR | 1 | This Part is No Longer Available | |||||
| 15 | 390-7034 | KEY, ROTOR | 1 | This Part is No Longer Available | |||||
| 16 | 390-8635 | ROTOR ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 17 | 390-7014 | SLIP RING | 1 | This Part is No Longer Available | |||||
| 18 | 390-7206 | WASHER, ROTOR SCREW | 1 | This Part is No Longer Available | |||||
| 19 | 390-7207 | LOCKWASHER, ROTOR SCREW | 1 | This Part is No Longer Available | |||||
| 20 | 390-7029 | SCREW, ROTOR SHAFT (5/8") | 1 | This Part is No Longer Available | |||||
| 21 | 390-7007 | RETAINER, ROTOR SHAFT BEARING | 1 | This Part is No Longer Available | |||||
| 22 | 390-7003 | COVER ASSEMBLY, REAR | 1 | This Part is No Longer Available | |||||
| 23 | 813972 | CONDENSOR | 1 | 390-7035 | This Part is No Longer Available | ||||
| 24 | 390-7023 | WASHER, REGULATOR TERMINAL STUD | 1 | This Part is No Longer Available | |||||
| 25 | 390-7024 | WASHER, CONDENSOR TERMINAL STUD | 1 | This Part is No Longer Available | |||||
| 26 | 390-7025 | NUT, TERMINAL STUD | 1 | This Part is No Longer Available | |||||
| 27 | 390-7208 | WASHER, TERMINAL STUD | 1 | This Part is No Longer Available | |||||
| 28 | 390-7032 | LOCKWASHER, TERMINAL STUD | 2 | This Part is No Longer Available | |||||
| 29 | 390-7026 | NUT, TERMINAL ATTACHING | 1 | This Part is No Longer Available | |||||
| 30 | 390-7022 | WASHER, CONDENSOR TERMINAL STUD | 1 | This Part is No Longer Available | |||||
| 31 | 390-8638 | THRU BOLT | 4 | This Part is No Longer Available | |||||
| 32 | 390-7021 | NUT, CONDENSOR TERMINAL ATTACHING | 1 | This Part is No Longer Available | |||||
| 33 | 390-7011 | BRUSH HOLDER ASSEMBLY | 1 | No longer made, limited availability | |||||
| 34 | 390-7030 | SCREW, BRUSH HOLDER (1/2") | 2 | This Part is No Longer Available | |||||
| 35 | 390-7008 | DIODE TRIO | 1 | This Part is No Longer Available | |||||
| 36 | 390-7019 | SPACER, DIODE TRIO | 1 | This Part is No Longer Available | |||||
| 37 | 390-7013 | GASKET, VOLTAGE REGULATOR | 1 | This Part is No Longer Available | |||||
| 38 | 808534T | 700-72250 | VOLTAGE REGULATOR | 1 | 390-7036 | ||||
| 39 | 390-7015 | SCREW, VOLTAGE REGULATOR ATTACHING | 4 | This Part is No Longer Available |
