575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Power Steering Components (M0036-022)

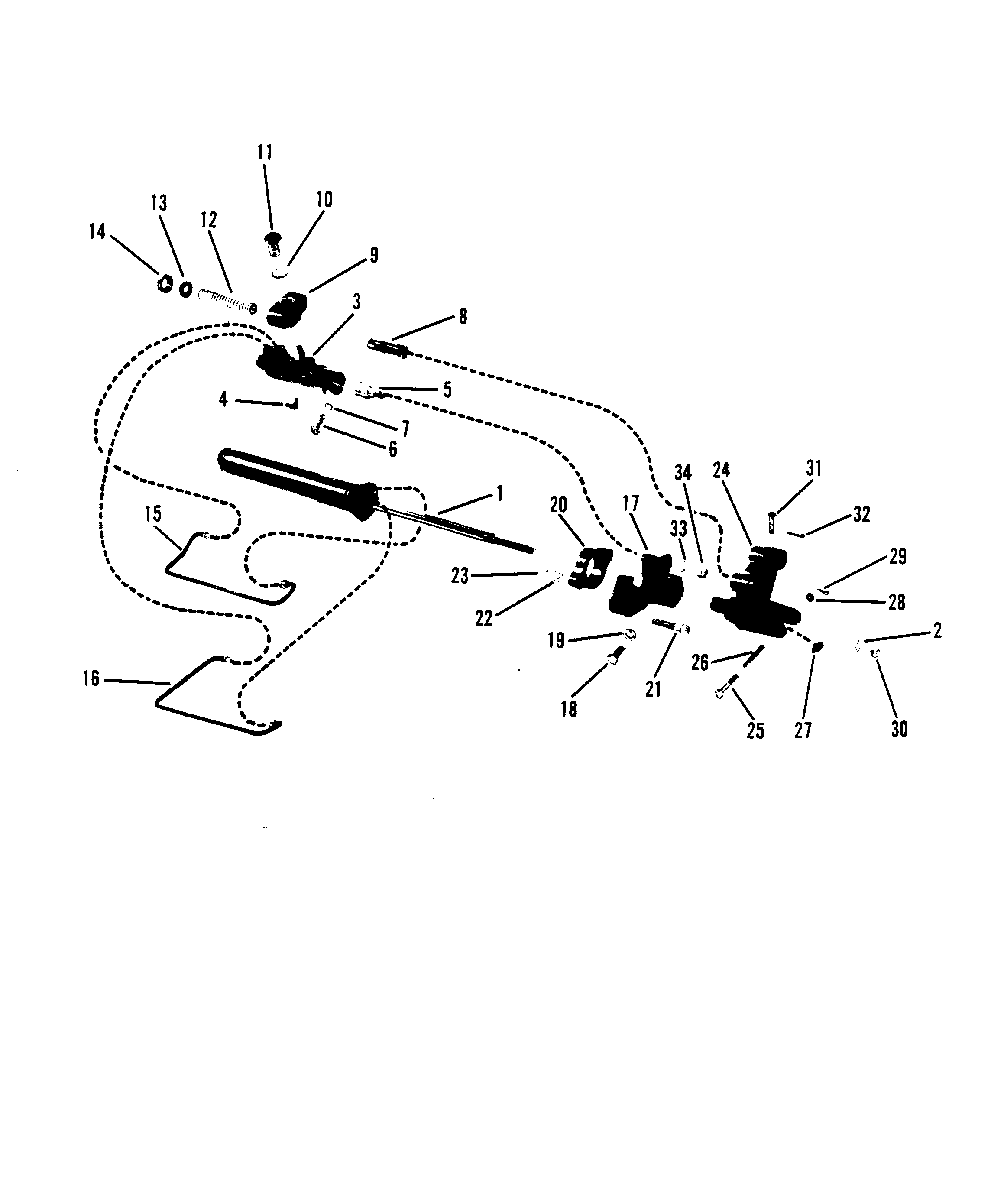

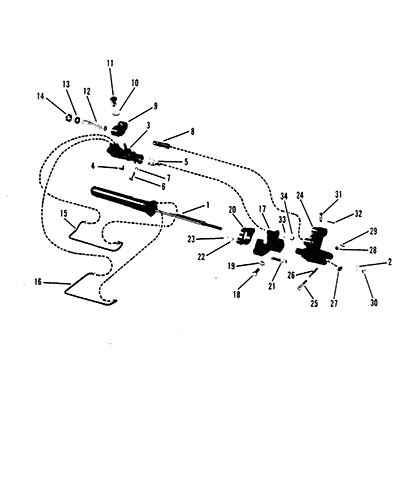

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 85618T | CYLINDER (25-58224A1 SEAL REPAIR KIT) | 1 | This Part is No Longer Available | |||||
| 2 | 12-20086 | WASHER, BOOSTER CYLINDER SHAFT | 1 | ||||||
| 3 | 816458A1 | VALVE, STEERING (25-58226A1 SEAL REPAIR KIT) | 1 | 52779A2 | This Part is No Longer Available | ||||
| 4 | 22-67305 | GREASE FITTING | 1 | No longer made, limited availability | |||||
| 5 | 16-55109T | STUD, ADAPTOR - POWER STEERING VALVE | 1 | This Part is No Longer Available | |||||
| 6 | 10-68101 | SCREW, CLAMPING (1-1/4") | 1 | ||||||
| 7 | 13-35048 | LOCKWASHER, CLAMPING SCREW | 1 | ||||||
| 8 | 23-87592A1 | SLEEVE KIT | 1 | This Part is No Longer Available | |||||
| 9 | 55110T | ADAPTOR, CABLE GUIDE TUBE (DUAL) | 1 | 55110 | This Part is No Longer Available | ||||
| 10 | 13-76629 | LOCKWASHER, DUAL ADAPTOR NUT | 1 | ||||||
| 11 | 11-55111 | NUT, DUAL ADAPTOR TO POWER STEERING VALVE | 1 | This Part is No Longer Available | |||||
| 12 | 32-55112 | TUBE, CABLE GUIDE | 1 | This Part is No Longer Available | |||||
| 13 | 12-37985 | WASHER, CABLE GUIDE TUBE | 1 | This Part is No Longer Available | |||||
| 14 | 11-37984 | NUT, CABLE GUIDE TUBE | 1 | ||||||
| 15 | 32-78895 | TUBE, EXTENDING - POWER STEERING | 1 | ||||||
| 16 | 32-78896 | TUBE, RETRACTING - POWER STEERING | 1 | This Part is No Longer Available | |||||
| 17 | NSS | NOT SOLD SEPARATE, BRACKET, MOUNTING - TRANSOM PLATE | 1 | 1 | |||||
| 18 | 10-31832 | SCREW, MOUNTING BRACKET TO TRANSOM PLATE | 2 | ||||||
| 19 | 13-31848 | LOCKWASHER, MOUNTING BRACKET SCREW | 2 | ||||||
| 20 | 93520 | COLLAR, CLAMPING | 1 | This Part is No Longer Available | |||||
| 21 | NSS | NOT SOLD SEPARATE, SCREW, MOUNTING BRACKET TO COLLAR (2") | 2 | 1 | |||||
| 22 | 12-20086 | WASHER, MOUNTING BRACKET SCREW | 2 | ||||||
| 23 | 11-69254 | NUT, MOUNTING BRACKET SCREW | 2 | ||||||
| 24 | 79988A1 | CLEVIS, ROD END | 1 | This Part is No Longer Available | |||||
| 25 | 10-67462 | SCREW, ROD END CLEVIS TO STEERING ARM | 1 | This Part is No Longer Available (2-1/4") | |||||
| 26 | 23-55118 | SPACER, ROD END CLEVIS SCREW | 1 | This Part is No Longer Available | |||||
| 27 | 23-60776 | BUSHING, CLEVIS | 1 | This Part is No Longer Available | |||||
| 28 | 11-49662 | NUT, ROD END CLEVIS SCREW | 1 | This Part is No Longer Available | |||||
| 29 | 18-32665 | COTTER PIN, CLEVIS SCREW NUT | 1 | ||||||
| 30 | 11-53300 | NUT, BOOSTER CYLINDER SHAFT | 1 | This Part is No Longer Available | |||||
| 31 | 17-52798 | PIN, CLEVIS - STEERING CABLE ATTACHING | 1 | ||||||
| 32 | 18-46950 | COTTER PIN, CLEVIS PIN RETAINING | 1 | ||||||
| 33 | 12-20959 | WASHER, VALVE ADAPTOR STUD | 1 | ||||||
| 34 | 11-898832 | NUT, VALVE ADAPTOR STUD | 1 | 11-28040 |
