575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Intake Manifold And Front Cover

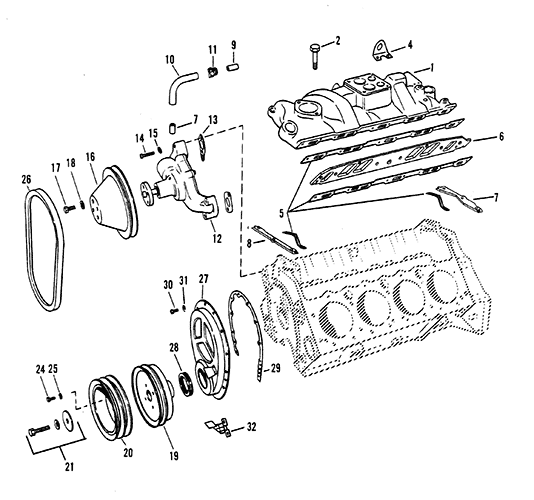

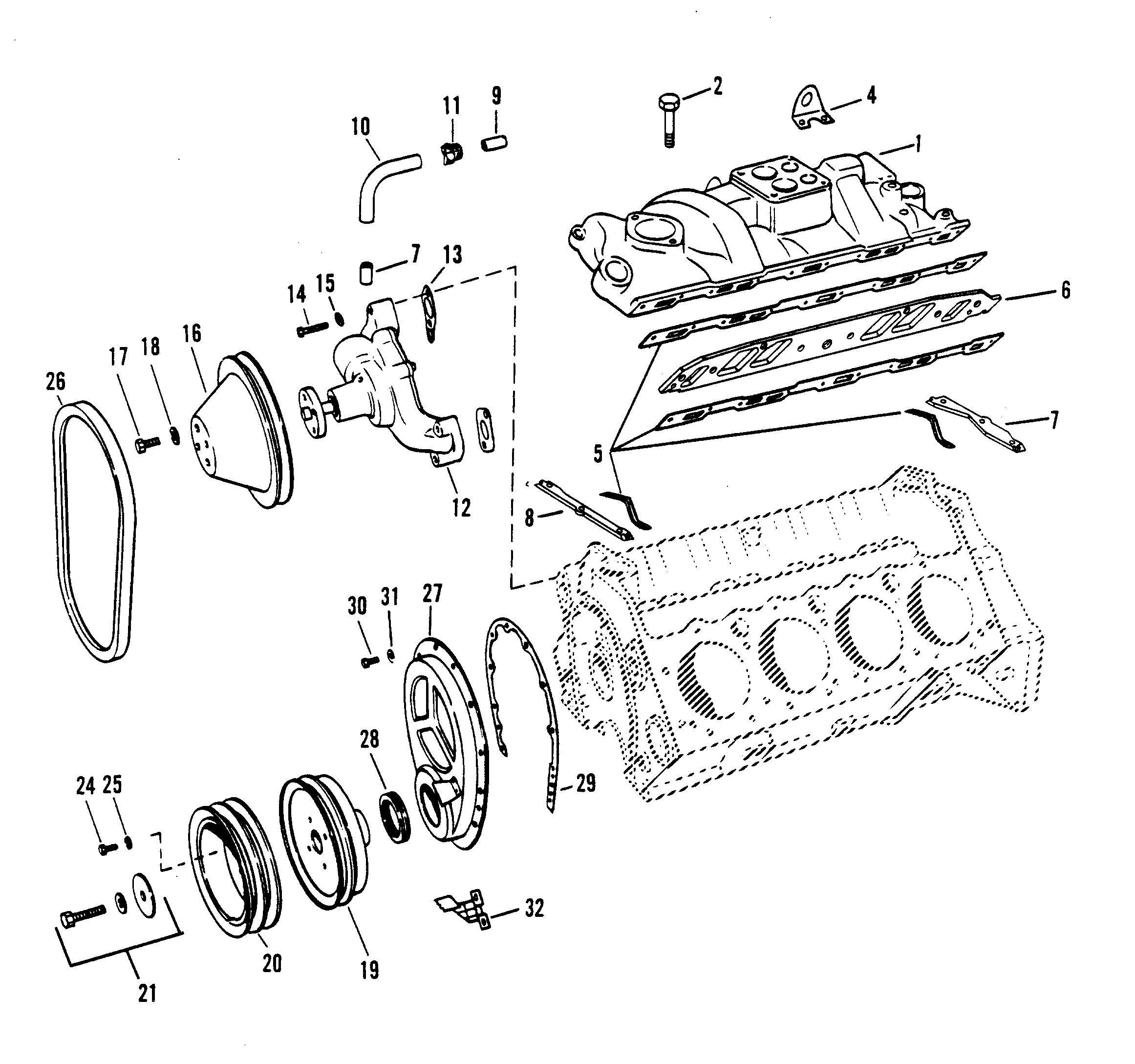

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 12376         INTAKE MANIFOLD 1   This Part is No Longer Available
2 10-358701         BOLT, INTAKE MANIFOLD 12 10-64900
2 10-35787         BOLT, INTAKE MANIFOLD 8
3 12-45175         WASHER, INTAKE MANIFOLD SCREW 20
4 54-64628         LIFTING EYE 2 54-646281
5 27-98086A1         GASKET SET, INTAKE MANIFOLD 1   2
6 54637         ADAPTOR PLATE (SIDE) 2   This Part is No Longer Available
7 54636         ADAPTOR PLATE (REAR) 1
8 54635         ADAPTOR PLATE (FRONT) 1
9 22-806242         CONNECTOR, INTAKE PUMP/INTAKE MANIFOLD 2 22-66201
10 32-99520         HOSE, BY-PASS - WATER PUMP/INTAKE MANIFOLD 1 32-66206
11 54-180763         CLAMP, BY-PASS HOSE 2
12 8504541         WATER PUMP 1 17670
13 27-49110         GASKET, WATER PUMP MOUNTING 2   2
14 10-32132         SCREW, WATER PUMP TO CYLINDER BLOCK (1-3/4") 4
15 13-35048         LOCKWASHER, WATER PUMP SCREW 4
16 137281         PULLEY, WATER PUMP 1
17 10-47277         SCREW, PULLEY TO WATER PUMP (3/4") 4
18 13-39107     700-21496   LOCKWASHER, WATER PUMP TO PULLEY SCREW 4
19 72605T1         BALANCER, HARMONIC - CRANKSHAFT 1 726051 This Part is No Longer Available
20 41450         PULLEY, HARMONIC BALANCER 1
21 814441         BALANCER BOLT KIT 1   This Part is No Longer Available
24 10-94207         BOLT, PULLEY 3
25 12-47393         WASHER, PULLEY BOLT 3
26 57-14458Q         BELT, ALTERNATOR DRIVE 1 57-14458
27 66215         COVER, CRANKCASE 1   This Part is No Longer Available
28 26-8219471         OIL SEAL, CRANKCASE COVER 1 26-49154 2
29 27-54529   676-9-61601 700-30440   GASKET, CRANKCASE COVER 1   2
30 10-28635         SCREW, CRANKCASE COVER TO BLOCK (7/16") 10
31 13-26992         LOCKWASHER, COVER SCREW 10
32 59966         POINTER, TIMING 1
