575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Oil Cooler, Oil Filter And Adaptor

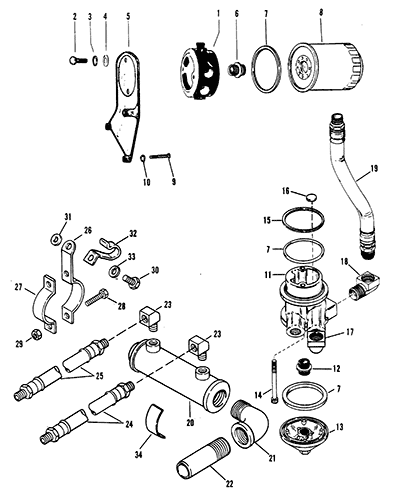

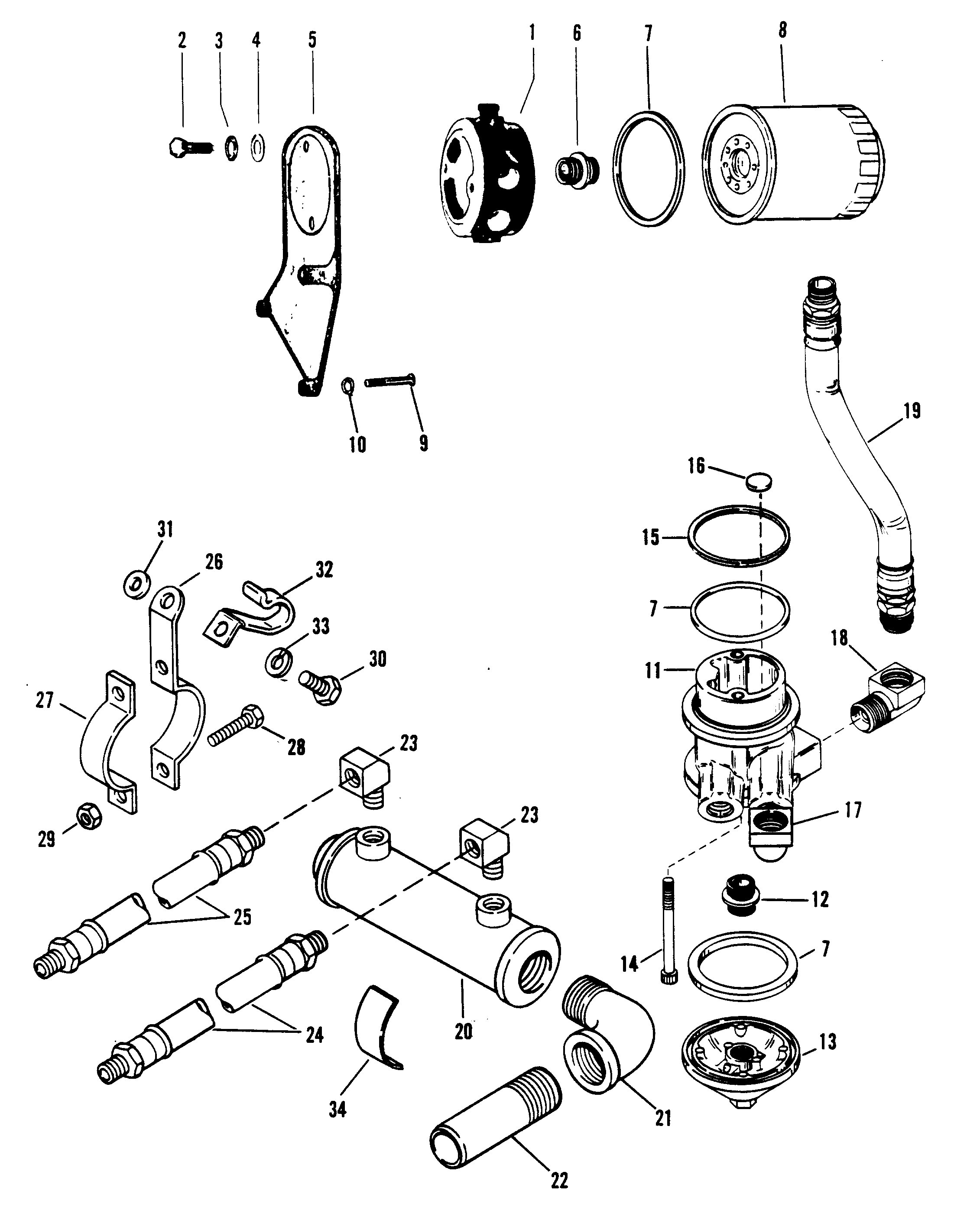

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 48504T2 | ADAPTOR, OIL FILTER | 1 | 48504A2 | |||||
| 2 | 10-34353 | SCREW, ADAPTOR TO BRACKET | 2 | ||||||
| 3 | 13-35048 | LOCKWASHER, ADAPTOR SCREW | 2 | ||||||
| 4 | 12-20553 | WASHER, OIL FILTER ADAPTOR SCREW | 2 | ||||||
| 5 | 63880T | BRACKET, OIL FILTER | 1 | ||||||
| 6 | 22-805632 | ADAPTOR | 1 | 32720 | |||||
| 7 | 27-91892 | GASKET, ADAPTOR COVER AND OIL FILTER | 3 | 2 | |||||
| 8 | 35-16595Q | OIL FILTER | 1 | 35-16595 | |||||
| 9 | 10-47462 | SCREW, BRACKET TO ENGINE | 2 | ||||||
| 9 | 10-37612 | SCREW, BRACKET TO ENGINE | 1 | ||||||
| 10 | 13-35048 | LOCKWASHER, BRACKET SCREW | 1 | ||||||
| 10 | 13-32993 | LOCKWASHER, BRACKET SCREW | 2 | ||||||
| 11 | 90783A22 | ADAPTOR ASSEMBLY, OIL FILTER | 1 | ||||||
| 12 | 22-805632 | ADAPTOR | 1 | 32720 | |||||
| 13 | 91830 | COVER, ADAPTOR | 1 | ||||||
| 14 | 10-91966 | SCREW, OIL FILTER ADAPTOR (4") | 1 | This Part is No Longer Available | |||||
| 14 | 10-91967 | SCREW, OIL FILTER ADAPTOR (3-1/4") | 1 | This Part is No Longer Available | |||||
| 15 | 27-99893 | GASKET, OIL FILTER ADAPTOR | 1 | No longer made, limited availability 2 | |||||
| 16 | 19-99816 | FREEZE PLUG | 1 | This Part is No Longer Available | |||||
| 17 | 22-63825 | ELBOW, OIL HOSE | 1 | ||||||
| 18 | 22-48246 | ELBOW, OIL HOSE | 1 | ||||||
| 19 | 32-9235743 | HOSE, OIL - ADAPTOR (19") | 1 | This Part is No Longer Available | |||||
| 20 | 70886T2 | OIL COOLER, ENGINE | 1 | 708862 | |||||
| 21 | 22-61168 | FITTING (90 DEGREES) | 2 | ||||||
| 22 | 22-61169 | CONNECTOR (STRAIGHT) | 2 | ||||||
| 23 | 22-63825 | ELBOW, ENGINE OIL COOLER (90 DEGREES) | 2 | ||||||
| 24 | 32-9235751 | HOSE, OIL - OIL COOLER TO BRACKET (26") | 1 | ||||||
| 25 | 32-9235743 | HOSE, OIL - OIL COOLER TO ADAPTER (19-1/2") | 1 | This Part is No Longer Available | |||||
| 26 | 12820 | BRACKET, OIL COOLER (LONG) | 2 | ||||||
| 27 | 56328A1 | BRACKET, OIL COOLER (SHORT) | 2 | ||||||
| 28 | 10-60300 | SCREW, OIL COOLER BRACKET (3/4") | 4 | ||||||
| 29 | 11-30506 | NUT, OIL COOLER BRACKET SCREW | 4 | ||||||
| 30 | 10-34353 | SCREW, OIL COOLER BRACKET TO ENGINE | 2 | ||||||
| 31 | 12-20553 | WASHER, OIL COOLER BRACKET SCREW | 2 | ||||||
| 32 | 54-15095 | "J" CLIP | 1 | ||||||
| 33 | 13-35048 | LOCKWASHER | 2 | ||||||
| 34 | 18068 | PAD, OIL COOLER | 2 | This Part is No Longer Available |
