575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Starter And Alternator

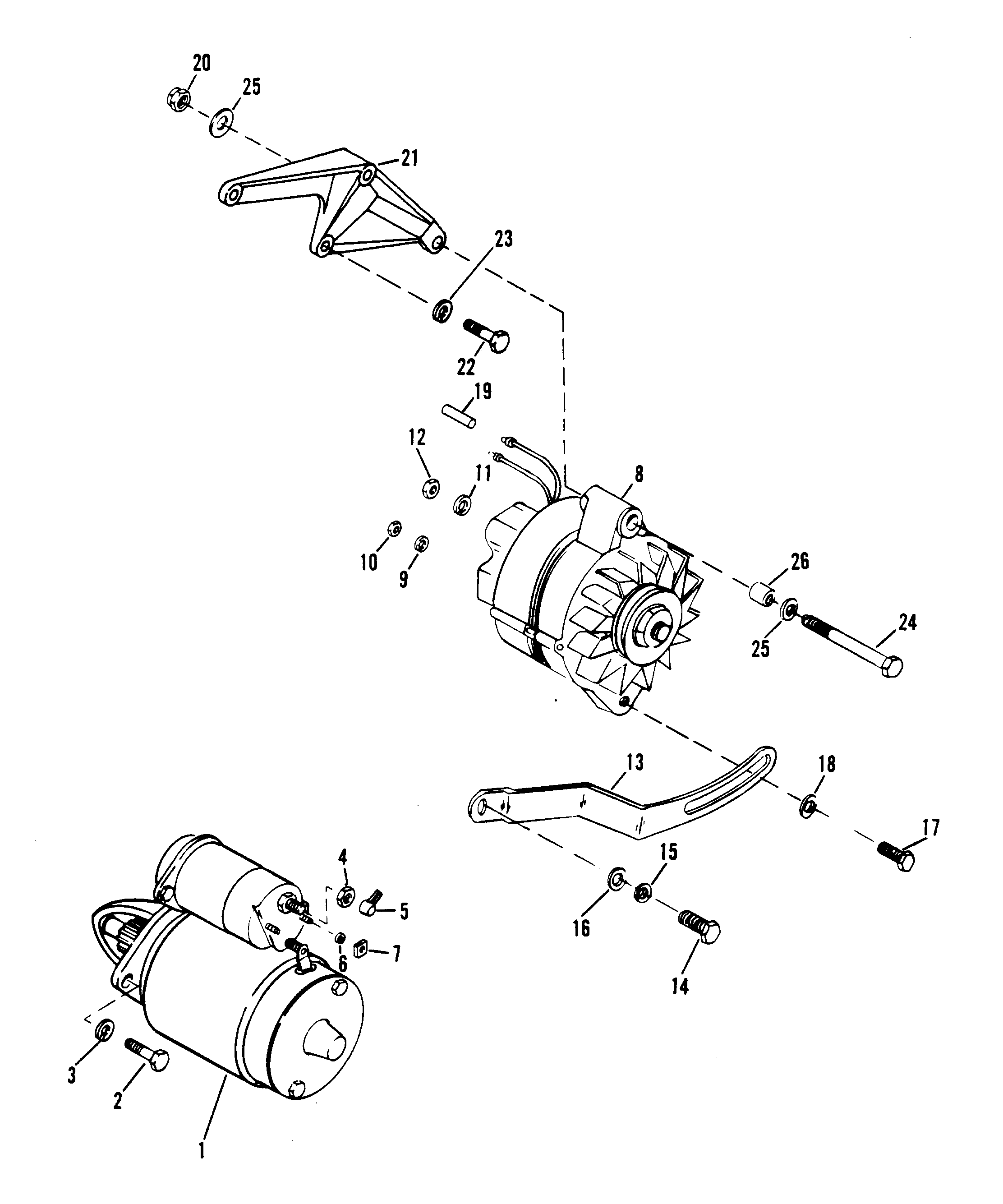

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-808011A05 | 676-9-15908 | STARTER MOTOR | 1 | 50-17251A3 | ||||
| 2 | 10-47461 | SCREW, STARTER MOTOR | 2 | ||||||
| 3 | 13-32993 | LOCKWASHER, STARTER MOTOR SCREW | 2 | ||||||
| 4 | 11-86226 | NUT, STARTER TERMINAL (3/8-16) | OPT. | 3 | |||||
| 4 | 11-4013610 | NUT, STARTER TERMINAL (10MM) | OPT. | 11-400266 | 3 | ||||
| 5 | 85-79695T | BOOT, INSULATOR - STARTER TERMINAL | 1 | 85-79695 | |||||
| 6 | 13-26995 | LOCKWASHER, STARTER TERMINAL | 1 | #8-32 NUT | |||||
| 7 | 11-26419 | NUT, STARTER TERMINAL | 1 | #8-32 NUT | |||||
| 6 | 13-26996 | LOCKWASHER, STARTER TERMINAL | 1 | 5MM NUT | |||||
| 7 | 11-400211 | NUT, STARTER TERMINAL | 1 | 5MM NUT | |||||
| 8 | 817119A4 | 620-3186M | 676-9-19101 | ALTERNATOR | 1 | 92497A3 | |||
| 9 | 13-26996 | LOCKWASHER, ALTERNATOR TERMINAL | 1 | ||||||
| 10 | 11-30968 | NUT, ALTERNATOR TERMINAL (10-24) | 1 | This Part is No Longer Available | |||||
| 11 | 13-21272 | LOCKWASHER, ALTERNATOR TERMINAL | 1 | ||||||
| 12 | 11-64015 | NUT, ALTERNATOR TERMINAL (1/4-20) | 1 | ||||||
| 13 | 85013T | BRACE, ALTERNATOR ADJUSTING | 1 | 85013 | |||||
| 14 | 10-47461 | SCREW, ALTERNATOR BRACE (1") | 1 | ||||||
| 15 | 13-32993 | LOCKWASHER, ALTERNATOR BRACE SCREW | 1 | ||||||
| 16 | 12-27025 | WASHER, ALTERNATOR BRACE SCREW | 1 | ||||||
| 17 | 10-29198 | SCREW, ALTERNATOR BRACE (7/8") | 1 | ||||||
| 18 | 12-26168 | WASHER, ALTERNATOR BRACE SCREW | 1 | ||||||
| 19 | 5790811 | TUBING, ALTERNATOR LEADS | 1 | ||||||
| 20 | 11-23161 | NUT, ALTERNATOR BRACKET SCREW | 1 | ||||||
| 21 | 47487T | BRACKET, ALTERNATOR | 1 | 47487A2 | This Part is No Longer Available | ||||
| 22 | 10-34353 | 525-10-34353 | SCREW, ALTERNATOR BRACKET (1") | 2 | |||||
| 22 | 10-358701 | SCREW, ALTERNATOR BRACKET (2") | 1 | 10-64900 | |||||
| 23 | 13-35048 | 700-21495 | LOCKWASHER, ALTERNATOR BRACKET SCREW | 3 | |||||
| 24 | 10-48308 | SCREW, ALTERNATOR (3-3/4") | 1 | ||||||
| 25 | 12-20553 | 700-21675 | WASHER, ALTERNATOR BRACKET SCREW | 3 | 12-25970 | ||||
| 26 | 23-33186 | BUSHING, ALTERNATOR BRACKET SCREW | 1 |
