1075 SCi - Serial 0M905359 Thru 0M957024 - Engine Components (Cylinder Head)

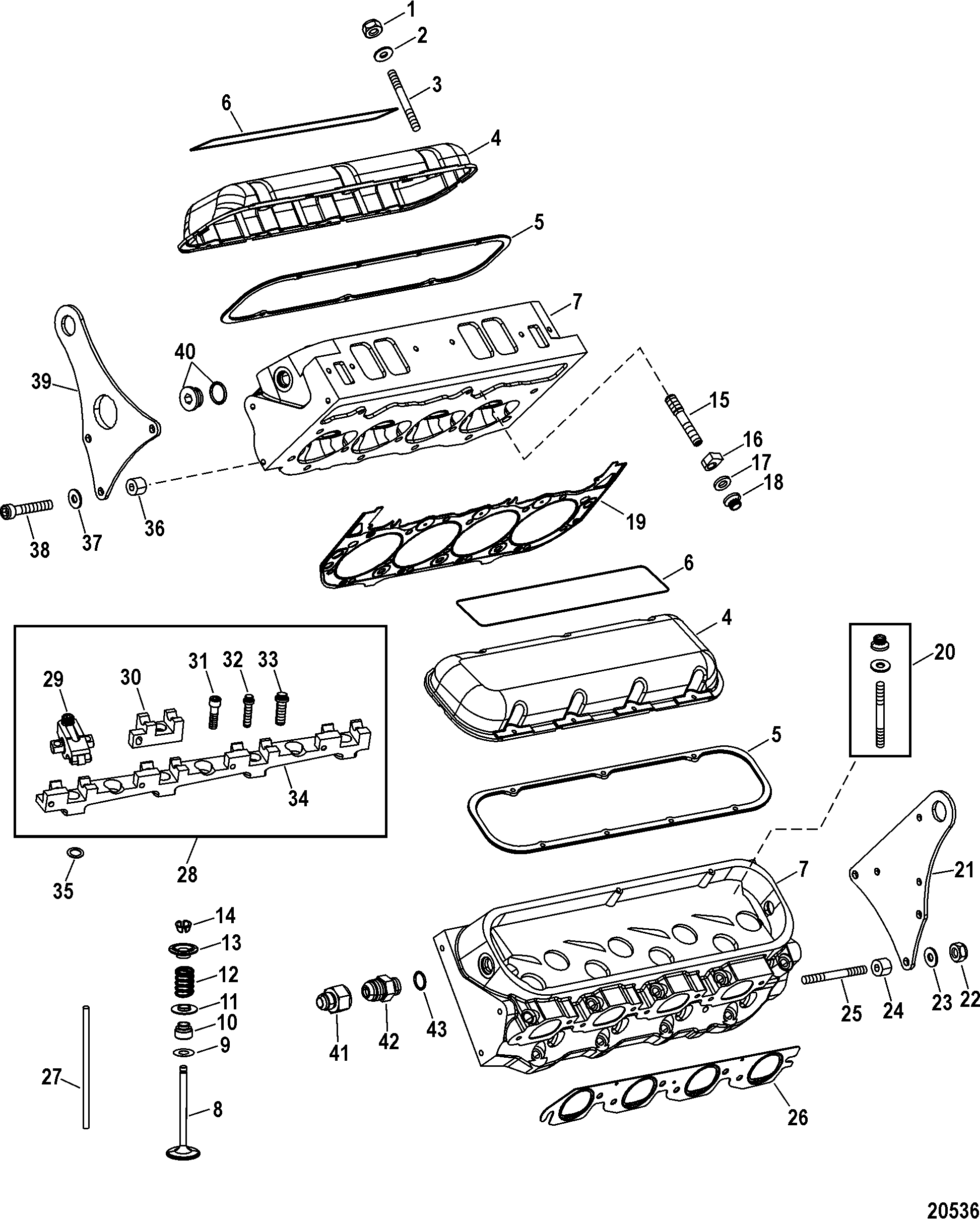

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting (Design I)
- Alternator And Sea Water Pump Mounting (Design II)
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump - Design I And II)
- Cooling Components (Sea Water Pump - Design III)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Inlet And Drive Belt)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components (Design I)
- Fuel Line Components (Design II)
- Fuel Pump (Remote) (Design I)
- Fuel Pump (Remote) (Design II)
- Fuse Harness Kit (879365A20)
- Gasket -Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger)
- Intake Components (Water Intercooler)
- Mount Plates (Engine) (Design I)
- Mount Plates (Engine) (Design II)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Power-Assisted Steering Components (Design III)
- Power-Assisted Steering Components (Design IV)
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Rigging Kit (Triple Engines)
- Tool List (Special - Engine)
- Transmission (BAM Driveline Models)
- Transmission (BAM Plug In Models)
- Transmission (HUBER Driveline Models)
- Transmission (HUBER Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 14 | 5 | |||
| 2 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 14 | 5 | |||||
| 3 | 16-843821 | STUD, (.250-20/.250-28 x 1.500) | 14 | 5 | |||||
| 4 | 842906 | VALVE COVER ASSEMBLY, Blue, Aluminum | 2 | SN# 0M905359 THRU 0M951398 | |||||
| 4 | 841357A02 | VALVE COVER ASSEMBLY, Carbon Fiber | 2 | SN# 0M953057 THRU 0M955666 | |||||
| 4 | 8M0050959 | VALVE COVER ASSEMBLY, Carbon Fiber | 2 | 8M0021258 | SN# 0M955667 THRU 0M957024 | ||||
| 5 | 27-14765 | 676-9-61311 | GASKET, Valve Cover To Cylinder Head | 2 | |||||
| 6 | 37-841365 | DECAL, Mercury Racing | 2 | SN# 0M953057 THRU 0M955666 | |||||
| 6 | 37-8M0021246 | DECAL, Mercury Racing | 2 | SN# 0M955667 THRU 0M957024 | |||||
| 7 | 843525A08 | CYLINDER HEAD ASSEMBLY, Black | 2 | 5 | |||||
| 8 | 842396T01 | VALVE, Intake | 8 | 842396001 | 5 | ||||
| 8 | 842395T01 | VALVE, Exhaust | 8 | 842395001 | 5 | ||||
| 9 | 15-845669 | SHIM, Valve Spring (.015) | AR | 5 | |||||
| 9 | 15-77624 | SHIM, Valve Spring (.030) | AR | 5 | |||||
| 9 | 15-77625 | SHIM, Valve Spring (.060) | AR | 5 | |||||
| 10 | 26-69285 | SEAL, Valve | 8 | Intake 2,5 | |||||
| 10 | 840816 | SEAL, Valve | 8 | Exhaust 2,5 | |||||
| 11 | 840678 | SEAT, Spring | 16 | 5 | |||||
| 12 | 24-8M0011488 | SPRING | 16 | 24-8493231 | 5 | ||||
| 13 | 841353 | RETAINER, Valve Spring | 16 | 5 | |||||
| 14 | 841848 | LOCK VALVE SET | 8 | Intake 5 | |||||
| 14 | 841808 | LOCK VALVE SET | 8 | Exhaust 5 | |||||
| 15 | 16-840043 | STUD, (.375-24/.437-14 x 2.650) | 4 | 5 | |||||
| 16 | 14-840025 | TAB WASHER, Special, Cylinder Head To Block | 4 | 5 | |||||
| 17 | 12-840028 | WASHER, (.390 x .750 x .120) | 4 | 5 | |||||
| 18 | 11-840026 | NUT, 12 Point (.375-24) | 4 | 5 | |||||
| 19 | 27-842593 | GASKET, Cylinder Head | 2 | 2,5 | |||||
| 20 | 16-842363 | STUD KIT, Cylinder Head | 1 | 5 | |||||
| 21 | 8M0051040 | LIFTING EYE | 1 | 842596 | 5 | ||||
| 22 | 11-82671013 | NUT, (.375-24) Stainless Steel | 3 | 5 | |||||
| 23 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 3 | 5 | |||||
| 24 | 23-669954 | SPACER, (.410 x 1.00 x .750) Aluminum - Black | 3 | 5 | |||||
| 25 | 16-8M0034438 | STUD, (.375-24/.375-16 x 2.250) | 3 | 16-87163 | 5 | ||||
| 26 | 27-842576 | GASKET, Exhaust | 2 | 2 | |||||
| 27 | 842606 | PUSH ROD, Intake (9.05) | 8 | 5 | |||||
| 27 | 842606001 | PUSH ROD, Intake (9.00) | AR | ||||||
| 27 | 842606002 | PUSH ROD, Intake (9.10) | AR | ||||||
| 27 | 842607 | PUSH ROD, Exhaust (9.70) | 8 | 5 | |||||
| 27 | 842607001 | PUSH ROD, Exhaust (9.65) | AR | ||||||
| 27 | 842607002 | PUSH ROD, Exhaust (9.75) | AR | ||||||
| 28 | 842366A1 | ROCKER ARM KIT | 1 | 5 | |||||
| 29 | 8M0061725 | ROCKER ARM ASSEMBLY | 16 | 840720A1 | 5 | ||||
| 30 | 843530 | STAND, Exhaust | 8 | 5 | |||||
| 31 | 10-840725 | SCREW, (.312-18 x 1.125) Torx Head | 32 | 5 | |||||
| 32 | 10-840727 | SCREW, (.250-20 x 1.00) 12 Point Head | 8 | 5 | |||||
| 33 | 10-840726 | SCREW, (.437-14 x 1.00) 12 Point Head | 16 | 5 | |||||
| 34 | 843529 | STAND, Intake | 2 | 5 | |||||
| 35 | 15-848046A1 | SHIM SET | 1 | 5 | |||||
| 36 | 23-669955 | SPACER, (.410 x 1.00 x .337) Aluminum - Black | 3 | 5 | |||||
| 37 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 3 | 5 | |||||
| 38 | 10-842787 | SCREW, (.375-16 x 2.00) Stainless Steel | 3 | 5 | |||||
| 39 | 843515 | LIFTING EYE | 1 | 5 | |||||
| 40 | 19-8M0000696 | PLUG ASSEMBLY, Magnetic | 2 | 5 | |||||
| 41 | 22-8M0010526 | FITTING, Straight - Aluminum, Hose Assembly To Supercharger | 2 | 22-841371 | Design I | ||||
| 41 | 22-8M0010526 | FITTING, Straight - Stainless Steel, Hose Assembly To Supercharger | 2 | Design II | |||||
| 42 | 22-8M0010559 | FITTING ASSEMBLY, Blue - With Filter | 2 | 22-841370A01 | Design I | ||||
| 42 | 22-8M0010559 | FITTING ASSEMBLY, Black - With Filter | 2 | Design II | |||||
| 43 | 25-849088 | O-RING, (.755 x .097) | 2 | ||||||
| - | 27-842593A01 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing | |||||
| - | 841000A17 | PARTIAL ENGINE ASSEMBLY | 1 |
