1075 SCi - Serial 0M905359 Thru 0M957024 - Engine Components (Water Inlet And Drive Belt)

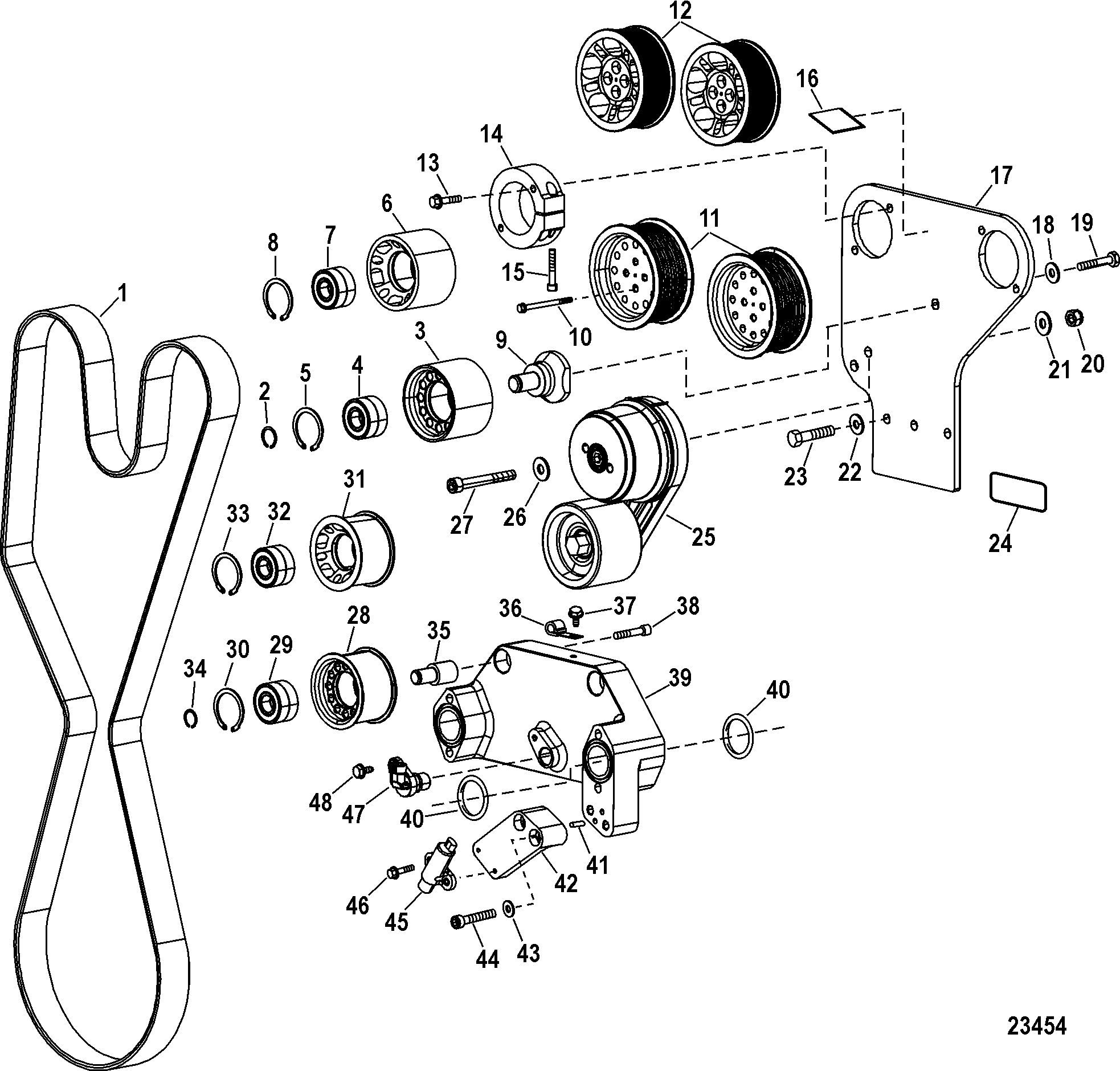

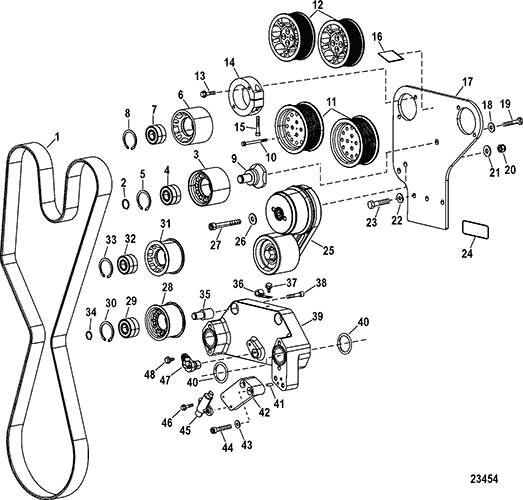

Section Drawing: (Hover or click to view larger)
