1075 SCi - Serial 0M905359 Thru 0M957024 - Intake Components (Air Plenum And Flame Arrestor)

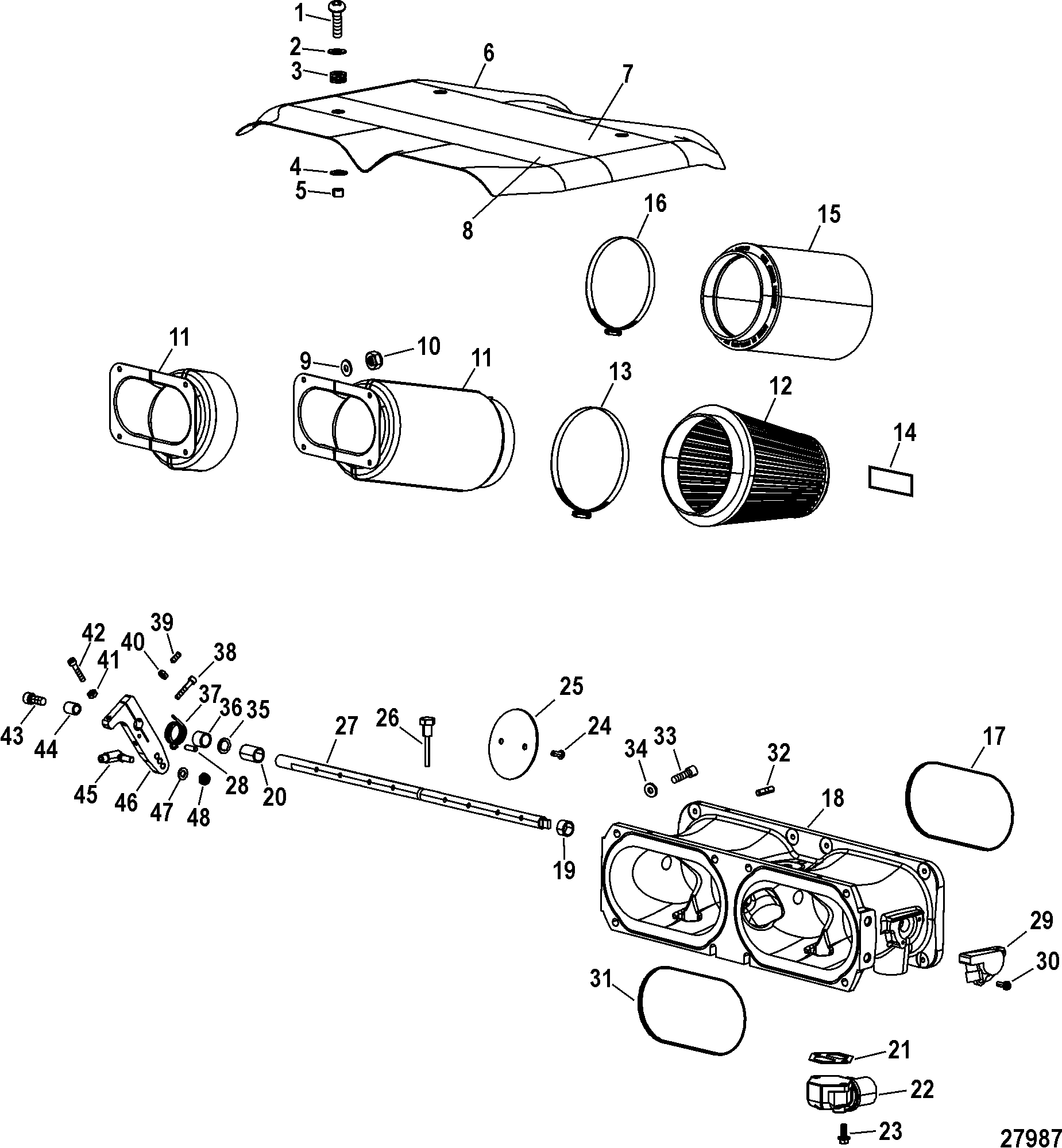

Section Drawing: (Hover or click to view larger)

Return To Parts Finder

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 10-849306



SCREW, (.250-20 x .750) Button Head 4

2 12-35044



WASHER, (.281 x .625 x .065) Stainless Steel 4

3 25-834921



GROMMET 4

4 12-74758



WASHER, (.469 x .875 x .063) OPT

5 23-F694359



SPACER 4   This Part is No Longer Available
6 842643



COVER, Engine 1

7 37-842640



DECAL, 1075 SCi Specs 1
SN# 0M905359 THRU 0M951398
7 37-841366



DECAL, 1075 SCi Specs 1
SN# 0M953057 THRU 0M955666
7 37-8M0021244



DECAL, 1075 SCi 1
SN# 0M955667 THRU 0M957024
8 37-842646



DECAL, 1075 SCi 1
SN# 0M905359 THRU 0M951398
8 37-841365



DECAL, Mercury Racing 1
SN# 0M953057 THRU 0M955666
8 37-8M0021246



DECAL, Mercury Racing 1
SN# 0M955667 THRU 0M957024
9 12-65567



WASHER, (.265 x .750 x .048) Stainless Steel 8

10 11-35888
676-9-72001 700-21180
NUT, (.250-28) Stainless Steel 8

11 8M0060777



RESONATOR ASSEMBLY, Carbon Style 2 842632A01
11 8M0050932



ADAPTER ASSEMBLY OPT 842632A03
12 842642A01



ARRESTOR ASSEMBLY, Flame 2 842642A02 Design I - With Decal
12 842642A01



ARRESTOR ASSEMBLY, Flame 2
Design II - Without Decal - Info Embossed On Part
13 54-815504396



CLAMP, Worm Gear 2

14 NSS



NOT SOLD SEPARATE, Decal - SAE J1828 Marine - For Design I Flame Arrestor 2
This Part is not sold separately
15 841347T01



ARRESTOR ASSEMBLY, Flame 2 841347A01 Design III
16 54-815504396



CLAMP, Worm Gear 2

17 25-842390



O-RING, (6.520 x .070) 2
2
18 843514T15



THROTTLE BODY ASSEMBLY, Black 1

19 NSS



NOT SOLD SEPARATE, Bushing 5
This Part is not sold separately
20 NSS



NOT SOLD SEPARATE, Bushing 1
This Part is not sold separately
21 27-863112



GASKET, Idle Air Valve To Throttle Body 2

22 8M0050118



VALVE ASSEMBLY, Idle Air 2 841117A02
23 10-90192



SCREW, (.250-20 x .750) Stainless Steel 4

24 10-842392



SCREW, (#10-32 x .500) Stainless Steel 8

25 843846



BLADE, Throttle 4

26 10-828552A1



SCREW ASSEMBLY, Detent 1

27 843510



SHAFT, Throttle 1

28 17-48450



PIN, Dowel 1

29 849903



SENSOR, Throttle Position 1

30 10-79965



SCREW, (#8-32 x .500) Stainless Steel 2

31 25-842390



O-RING, (6.520 x .070) 2
2
32 16-8M0034450



STUD, (.250-20/.250-28 x 1.01) 8 16-12097
33 10-4008930



SCREW, (M8 x 30) Stainless Steel 8

34 12-40514



WASHER, (.375 x .630 x .120) Stainless Steel 8

35 12-8M0042643



WASHER, (.520 x .850 x .060) Nylon - Black 1 12-19605
36 23-842572001



BUSHING 1

37 24-844226



SPRING 1

38 10-846500



SCREW, (#10-32 x 1.00) Stainless Steel 2

39 10-36158



SET SCREW, Socket Head (#10-32 x .500) 1

40 11-68219



NUT, (#10-32) Stainless Steel 1

41 11-68219



NUT, (#10-32) Stainless Steel 1

42 10-842127



SCREW, (#10-32 x .750) Stainless Steel 1

43 10-90073



SCREW, (.312-18 x 1.00) Stainless Steel 1

44 23-842389



BUSHING, Throttle Stop 1

45 807484



BALL JOINT ASSEMBLY, Quick Release 1

46 843511



ARM, Throttle 1

47 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 1

48 11-826709109



NUT, (.250-28) Stainless Steel 1

- 27-842593A01



GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
