1075 SCi - Serial 0M905359 Thru 0M957024 - Fuel Pump (Remote) (Design I)

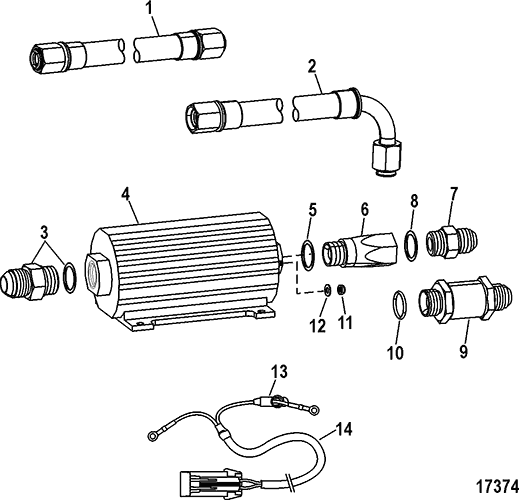

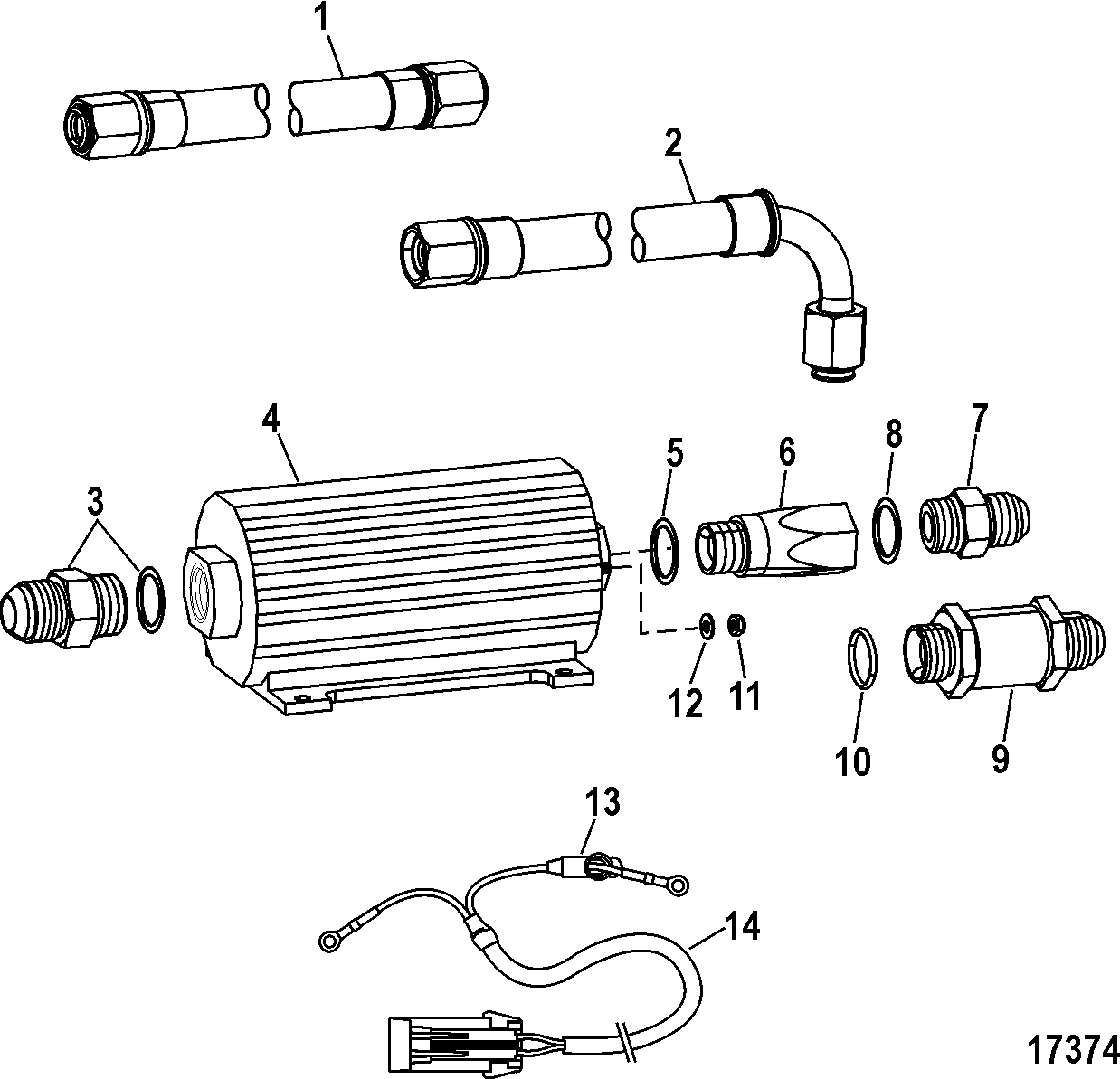

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting (Design I)
- Alternator And Sea Water Pump Mounting (Design II)
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump - Design I And II)
- Cooling Components (Sea Water Pump - Design III)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Inlet And Drive Belt)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components (Design I)
- Fuel Line Components (Design II)
- Fuel Pump (Remote) (Design I)
- Fuel Pump (Remote) (Design II)
- Fuse Harness Kit (879365A20)
- Gasket -Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger)
- Intake Components (Water Intercooler)
- Mount Plates (Engine) (Design I)
- Mount Plates (Engine) (Design II)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Power-Assisted Steering Components (Design III)
- Power-Assisted Steering Components (Design IV)
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Rigging Kit (Triple Engines)
- Tool List (Special - Engine)
- Transmission (BAM Driveline Models)
- Transmission (BAM Plug In Models)
- Transmission (HUBER Driveline Models)
- Transmission (HUBER Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 32-843826A01 | LINE ASSEMBLY, Fuel, Straight Fittings | AR | ||||||
| 2 | 32-897345T53 | LINE ASSEMBLY, Fuel, Straight And 90 Degree Fittings | AR | 32-843826A02 | |||||
| 3 | 22-841827A01 | FITTING ASSEMBLY, Aluminum - With O-Ring | 1 | ||||||
| 4 | 841379A04 | PUMP ASSEMBLY, Fuel - Electric | 1 | 843834 | Design I - No Longer Available - Replace With Design II Kit | ||||
| 4 | 841379A04 | PUMP KIT, Fuel - Electric | 1 | Design II - See Fuel Pump Remote Design II For Service Parts | |||||
| 5 | 25-849088 | O-RING, (.755 x .097) | 1 | NOTE: For Design I Fuel Check Valve | |||||
| 6 | 21-841386A01 | CHECK VALVE, Fuel | 1 | 21-843833 | Design I | ||||
| 7 | 22-841826A01 | FITTING ASSEMBLY, Fuel - Aluminum | 1 | NOTE: For Design I Fuel Check Valve | |||||
| 8 | 25-849088 | O-RING, (.755 x .097) | 1 | NOTE: For Design I Fuel Check Valve | |||||
| 9 | 21-841386A01 | CHECK VALVE, Fuel | 1 | Design II | |||||
| 10 | 25-849088 | O-RING, (.755 x .097) | 1 | NOTE: For Design II Fuel Check Valve | |||||
| 11 | 11-826709106 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 12 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 2 | ||||||
| 13 | 85-880786 | BOOT, Insulator - Red | 1 | ||||||
| 14 | 84-888430A04 | CABLE ASSEMBLY, Remote Fuel Pump | 1 | 84-888430A03 |
