1075 SCi - Serial 0M905359 Thru 0M957024 - Engine Components (Water Pump)

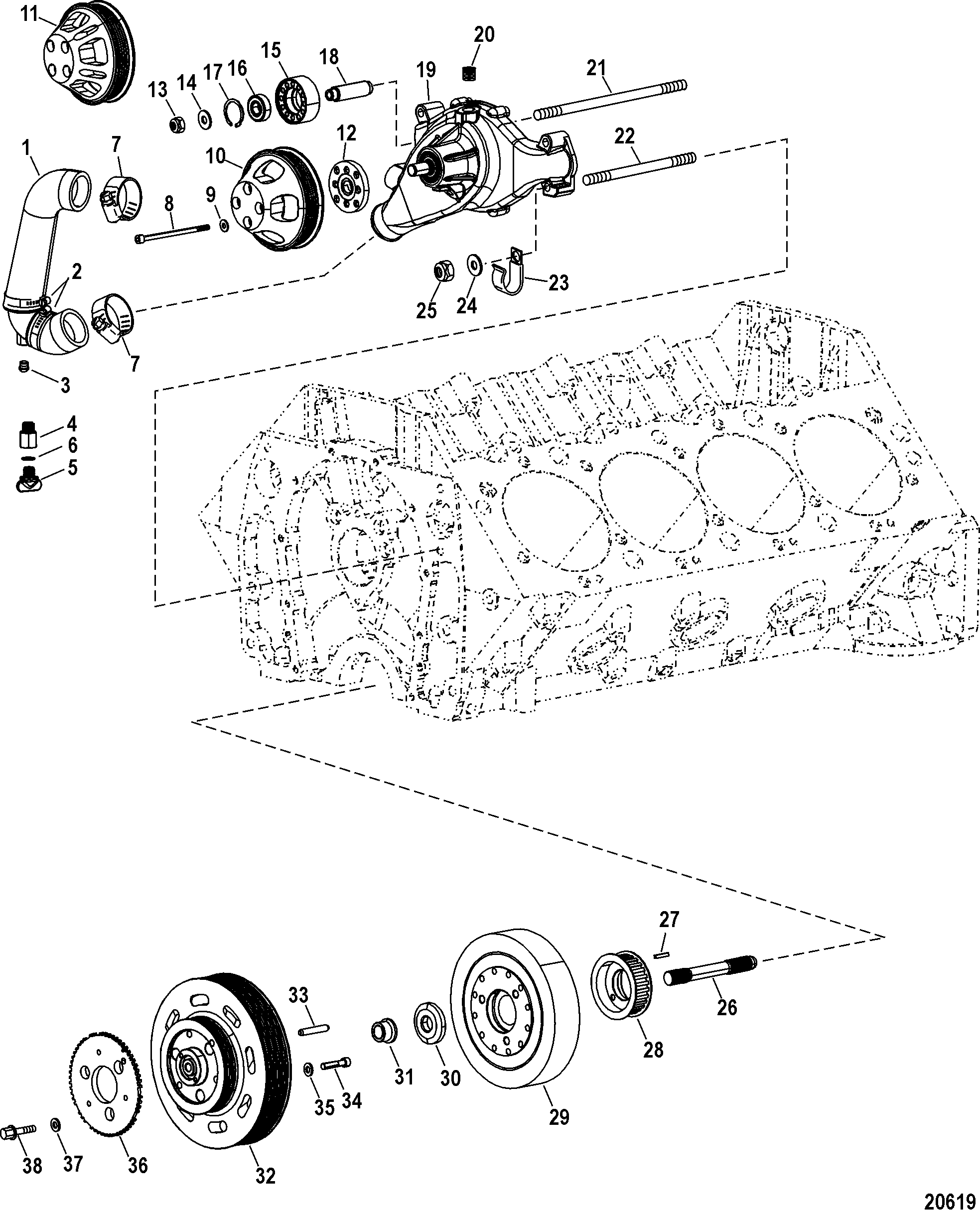

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting (Design I)
- Alternator And Sea Water Pump Mounting (Design II)
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump - Design I And II)
- Cooling Components (Sea Water Pump - Design III)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Inlet And Drive Belt)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components (Design I)
- Fuel Line Components (Design II)
- Fuel Pump (Remote) (Design I)
- Fuel Pump (Remote) (Design II)
- Fuse Harness Kit (879365A20)
- Gasket -Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger)
- Intake Components (Water Intercooler)
- Mount Plates (Engine) (Design I)
- Mount Plates (Engine) (Design II)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Power-Assisted Steering Components (Design III)
- Power-Assisted Steering Components (Design IV)
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Rigging Kit (Triple Engines)
- Tool List (Special - Engine)
- Transmission (BAM Driveline Models)
- Transmission (BAM Plug In Models)
- Transmission (HUBER Driveline Models)
- Transmission (HUBER Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 32-842416A03 | HOSE ASSEMBLY, Drain | 1 | ||||||
| 2 | 54-180768 | CLAMP, Worm Gear | 2 | ||||||
| 3 | 22-36382 | 700-21887 | FITTING, (.250-18 x .62) Brass | 1 | Design I | ||||
| 4 | 22-860088 | BUSHING | 2 | Design II | |||||
| 5 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue | 2 | 22-806608A1 | Design II | ||||
| 6 | 25-831985 | O-RING, (.468 x .078) | 2 | Design II | |||||
| 7 | 54-180768 | CLAMP, Worm Gear | 2 | ||||||
| 8 | 10-849377 | SCREW, (.312-24 x .750) Stainless Steel | 4 | ||||||
| 9 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 4 | ||||||
| 10 | 842623 | PULLEY, Water Pump - Blue | 1 | SN# 0M905369 THRU 0M951398 | |||||
| 11 | 8M0050956 | PULLEY, Water Pump - Blue | 1 | 842623001 | SN# 0M953057 THRU 0M957024 | ||||
| 12 | 47530 | HUB | 1 | ||||||
| 13 | 11-82671013 | NUT, (.375-24) Stainless Steel | 1 | ||||||
| 14 | 12-74759 | WASHER, (.391 x .880 x .125) Stainless Steel | 1 | ||||||
| 15 | 8M0050958 | PULLEY ASSEMBLY, Blue | 1 | 843845A01 | SN# 0M905359 THRU 0M951398 | ||||
| 15 | 8M0050958 | PULLEY ASSEMBLY, Blue | 1 | 843845A02 | SN# 0M953057 THRU 0M957024 | ||||
| 16 | 30-33451 | BEARING, Ball | 1 | ||||||
| 17 | 53-18917 | RING, Retaining | 1 | ||||||
| 18 | 17-843847001 | PIN, Idler | 1 | ||||||
| 19 | 811573A04 | PUMP ASSEMBLY, Circulating Water | 1 | 811573A03 | |||||
| 20 | 22-845174 | PLUG, (.500-14 x .610) Brass | 1 | ||||||
| 21 | 16-841363 | STUD, (.375-16/.375-24 x 7.750) | 1 | ||||||
| 22 | 16-8475321 | STUD, (.375-16/.375-24 x 5.500) | 3 | ||||||
| 23 | 54-78945 | J CLAMP, Harness Support | 1 | ||||||
| 24 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | ||||||
| 25 | 11-82671013 | NUT, (.375-24) Stainless Steel | 1 | ||||||
| 26 | 16-842627 | STUD, (.750-16 x 6.265) | 1 | 5 | |||||
| 27 | 28-20094 | KEY, Woodruff | 1 | 5 | |||||
| 28 | 822927 | PULLEY, Lower | 1 | 5 | |||||
| 29 | 96479T05 | DAMPER | 1 | 964795 | 5 | ||||
| 30 | 12-842628 | WASHER, Special | 1 | 5 | |||||
| 31 | 11-842626 | NUT, (.750-16) | 1 | 5 | |||||
| 32 | 8M0051361 | PULLEY ASSEMBLY, Crankshaft - Blue | 1 | 842620A01 | This Part is No Longer Available | ||||
| 33 | 17-843857 | PIN, Roll | 1 | ||||||
| 34 | 10-823029 | SCREW, (.312-18 x 1.500) Stainless Steel | 3 | ||||||
| 35 | 12-843108 | WASHER, (.330 x .560 x .060) Stainless Steel | 3 | ||||||
| 36 | 8M0051039 | WHEEL, Trigger | 1 | 842580 | |||||
| 37 | 12-8M0031525 | WASHER, (.390 x .675 x .120) Black | 3 | ||||||
| 38 | 10-843831 | SCREW, (.375-16 x 1.500) | 3 | ||||||
| - | 841000A17 | PARTIAL ENGINE ASSEMBLY | 1 |
